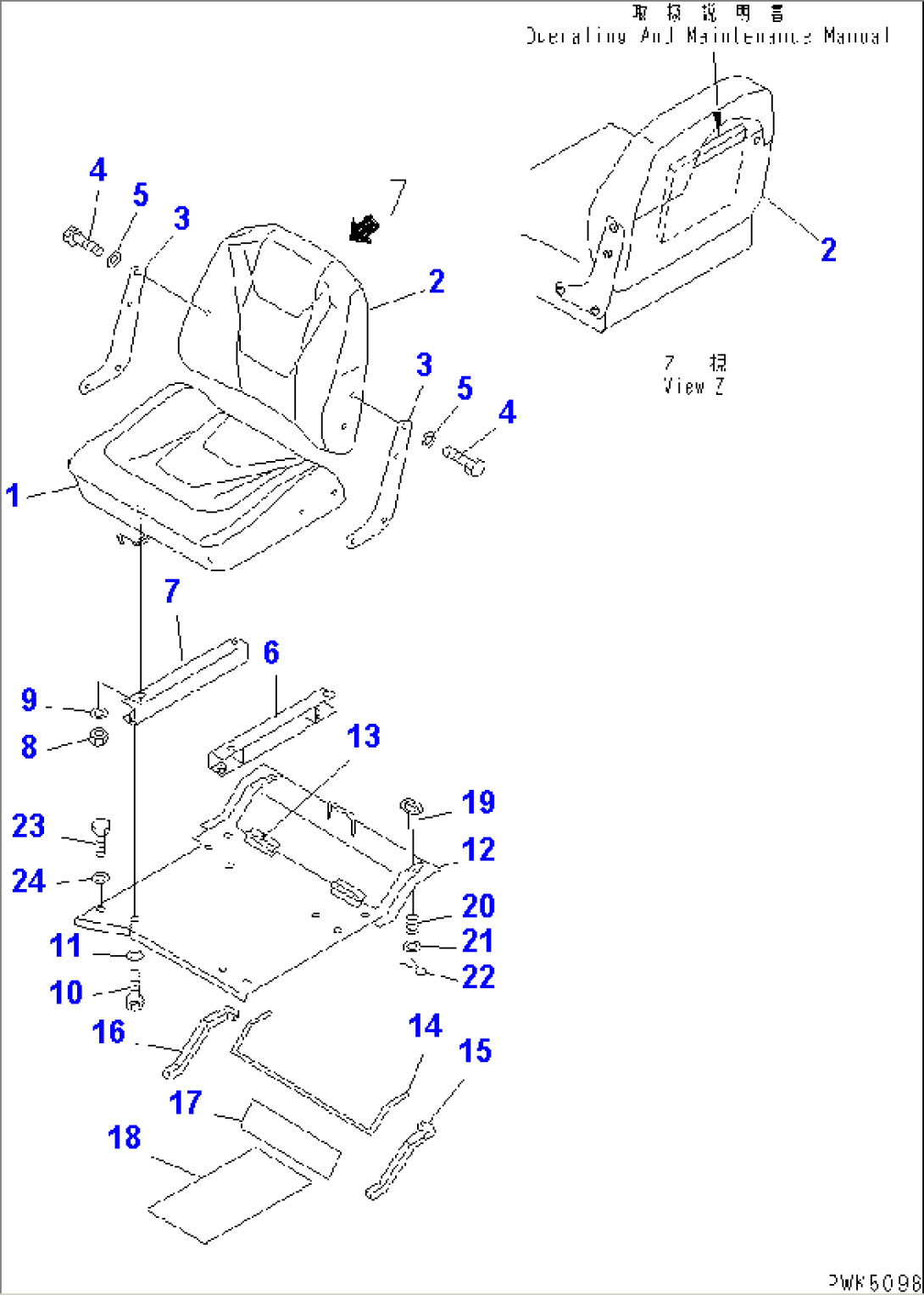

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 114-57-41260 | CUSHION,SEAT | 78604- | |
| 2 | 114-57-41271 | CUSHION,BACK | 78604- | |
| 3 | 114-57-41280 | PLATE | 78604- | |
| 4 | 01010-80825 | BOLT | 78604- | |
| 5 | 01643-30823 | WASHER | 78604- | |
| 6 | 114-57-41171 | BRACKET,L.H. | 78604- | |
| 7 | 114-57-41181 | BRACKET,R.H. | 78604- | |
| 8 | 01580-11210 | NUT | 78604- | |
| 9 | 01643-31232 | WASHER | 78604- | |
| 10 | 01010-81225 | BOLT | 78604- | |
| 11 | 01643-31232 | WASHER | 78604- | |
| 12 | 103-B62-2470 | PLATE | 78604- | |
| 13 | 113-54-24190 | HINGE (WELDED) | 78604- | |
| 14 | 103-B62-1760 | SEAT | 78604- | |
| 15 | 103-B62-1770 | SEAL | 78604- | |
| 16 | 103-B62-1780 | SEAL | 78604- | |
| 17 | 103-B62-2270 | SHEET | 78604- | |
| 18 | 103-B62-2280 | SHEET | 78604- | |
| 19 | 09459-11033 | LOCK | 78604- | |
| 20 | 09459-01614 | SPRING | 78604- | |
| 21 | 01642-01016 | WASHER | 78604- | |
| 22 | 04050-13015 | PIN,COTTER | 78604- | |
| 23 | 01010-81025 | BOLT | 78604- | |
| 24 | 01643-31032 | WASHER | 78604- |
