| Item | Part No. | Part Name | Qty | Serial No. |

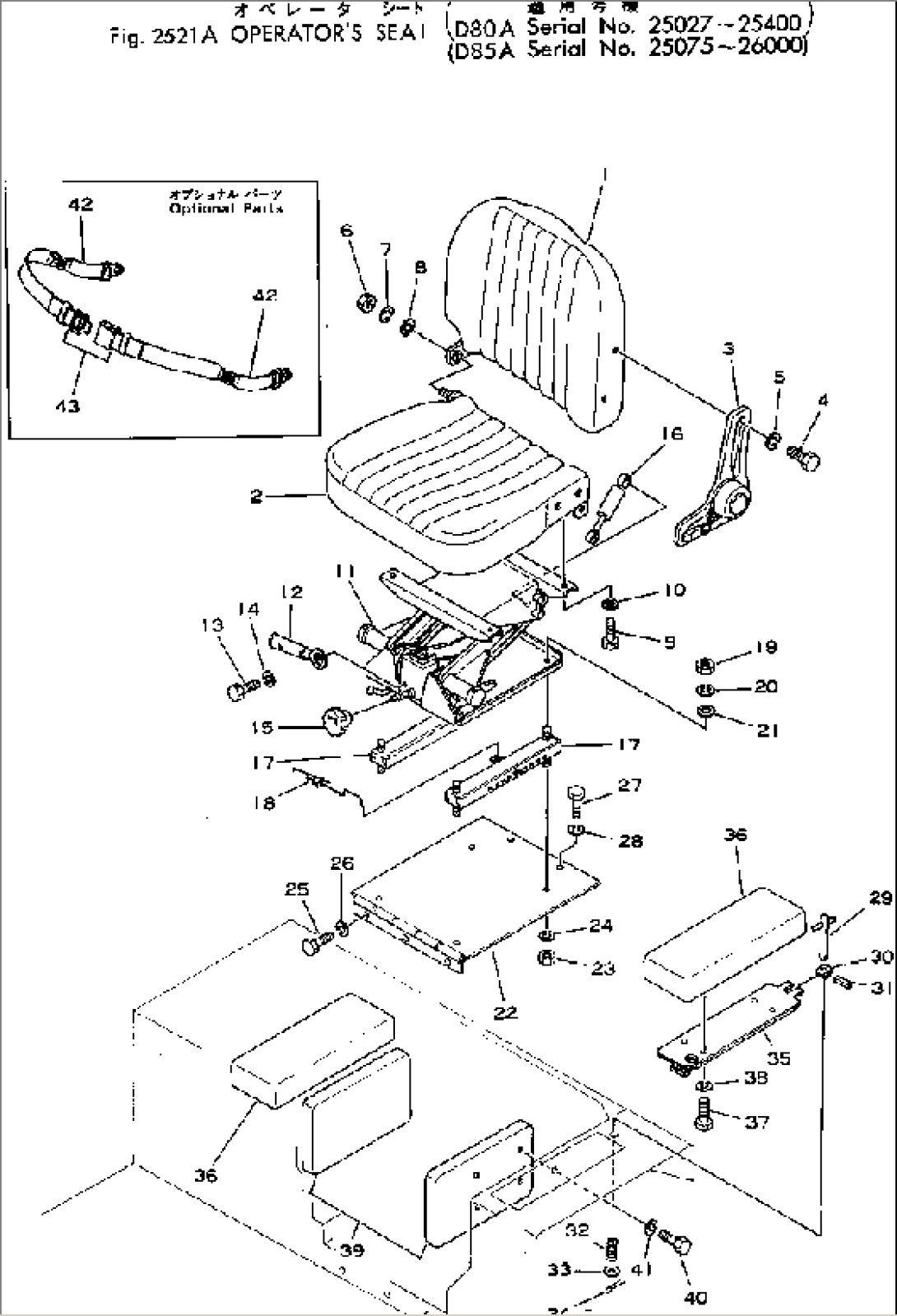

| 155-57-12104 | OPERATOR'S SEAT A. | 25027-25400 | ||
| 1 | 155-57-12171 | CUSHION,BACK | 25027-25400 | |
| 2 | 198-57-11620 | CUSHION,CUSHION | 25001-25400 | |
| 3 | 155-57-12181 | LEVER | 25001-@ | |
| 4 | 07372-21030 | BOLT | 25001-25400 | |
| 5 | 01602-01030 | WASHER,SPRING | 25001-@ | |
| 6 | 01580-01008 | NUT | 25001-25400 | |
| 7 | 01602-01030 | WASHER,SPRING | 25001-@ | |
| 8 | 01643-31032 | WASHER | 25001-25400 | |
| 9 | 01010-31020 | BOLT | 25001-@ | |
| 10 | 01602-01030 | WASHER,SPRING | 25001-@ | |
| 11 | 155-57-12142 | SUSPENSION ASS'Y | 25027-25400 | |
| 12 | 155-57-12210 | HANDLE ASS'Y | 25001-25400 | |
| 13 | 01010-30612 | BOLT | 25001-25400 | |
| 14 | 01640-00610 | WASHER | 25001-25400 | |
| 15 | 155-57-12221 | KNOB | 25027-25400 | |
| 16 | 155-57-12250 | DAMPER | 25001-25400 | |
| 17 | 155-57-12150 | ADJUSTER | 25001-@ | |
| 18 | 155-57-12260 | LATCH WIRE ASS'Y | 25001-25400 | |
| 19 | 01580-01210 | NUT | 25001-@ | |
| 20 | 01602-01236 | WASHER,SPRING | 25001-@ | |
| 21 | 01640-01223 | WASHER | 25001-25400 | |
| 22 | 154-57-12150 | SEAT | 25001-@ | |
| 23 | 01580-01210 | NUT | 25001-@ | |
| 24 | 01602-01236 | WASHER,SPRING | 25001-@ | |
| 25 | 01010-31225 | BOLT | 25001-@ | |
| 26 | 01602-01236 | WASHER,SPRING | 25001-@ | |
| 27 | 01010-31225 | BOLT | 25001-@ | |
| 28 | 01602-01236 | WASHER,SPRING | 25001-@ | |
| 29 | 154-57-12131 | PIN | 25001-@ | |
| 30 | 154-57-12140 | WASHER | 25001-@ | |
| 31 | 04025-00520 | PIN | 25001-@ | |
| 32 | 124-960-2160 | SPRING | 25001-@ | |
| 33 | 01640-01016 | WASHER | 25001-@ | |
| 34 | 04050-03015 | PIN | 25001-@ | |
| 35 | 154-57-12111 | COVER | 25001-@ | |
| 36 | 154-57-12121 | REST | 25001-@ | |
| 37 | 01010-30825 | BOLT | 25001-@ | |
| 38 | 01602-00825 | WASHER,SPRING | 25001-@ | |
| 39 | 195-57-11292 | CUSHION | 25001-@ | |
| 40 | 01010-30825 | BOLT | 25001-@ | |
| 41 | 01602-00825 | WASHER,SPRING | 25001-@ | |
| 42 | 09409-20000 | BELT, TETHER | 25001-@ | |
| 43 | 09409-10000 | BELT | 25001-@ |
