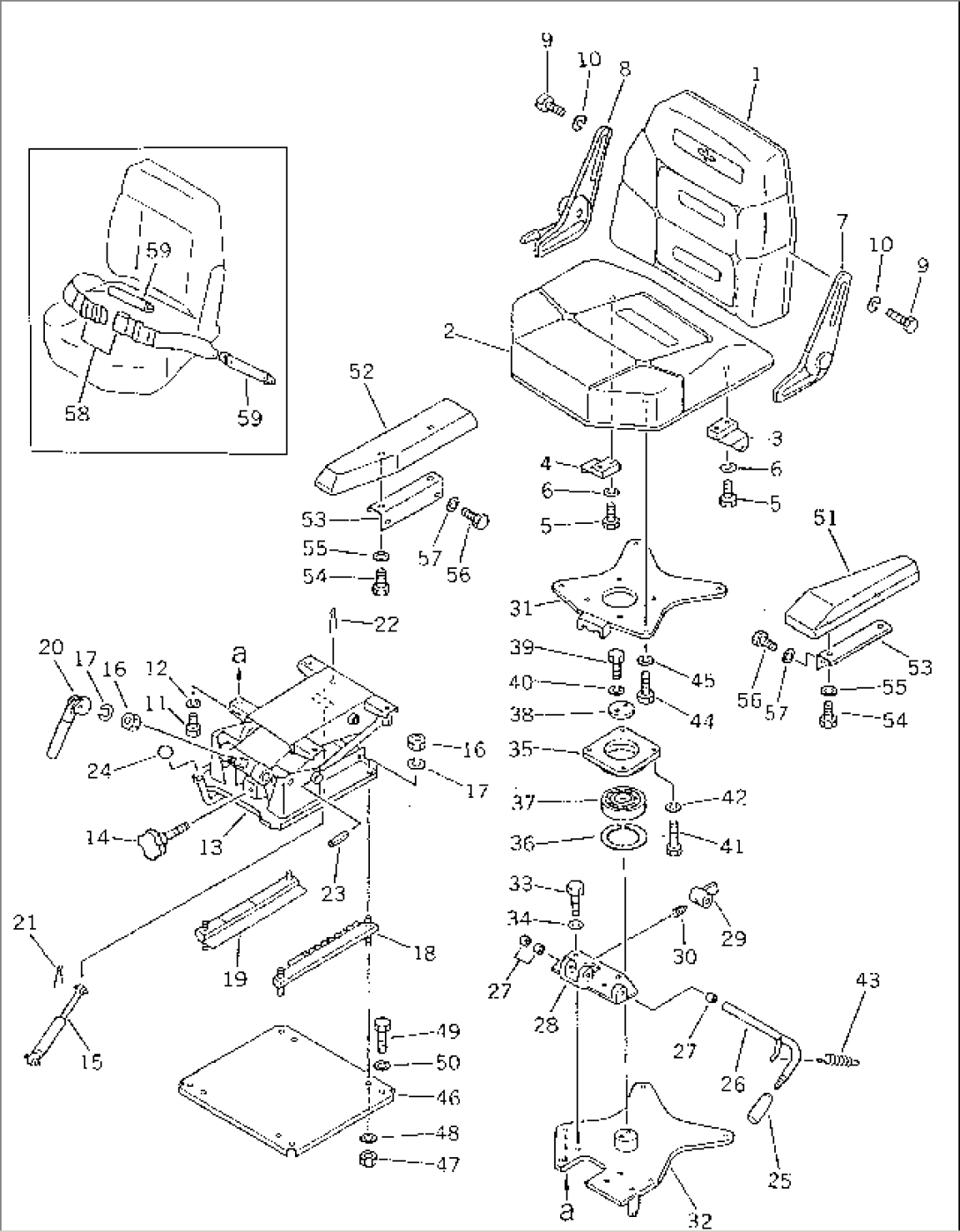

| Item | Part No. | Part Name | Qty | Serial No. |
| 195-57-11006 | SEAT ASS'Y | 3001-3663 | ||
| 195-57-21201 | SEAT ASS'Y | 3001-3663 | ||
| 1 | 195-57-21231 | SEAT,BACK | 3001-3663 | |
| 2 | 195-57-21241 | SEAT,CUSHION | 3001-3663 | |
| 3 | 195-57-21250 | BRACKET,L.H. | 3001-3663 | |
| 4 | 195-57-21260 | BRACKET,R.H. | 3001-3663 | |
| 5 | 01010-51040 | BOLT | 3001-3663 | |
| 6 | 01602-21030 | WASHER,SPRING | 3001-3663 | |
| 7 | 155-57-12182 | BRACKET | 3001-3663 | |
| 8 | 155-57-12191 | LEVER | 3001-3663 | |
| 9 | 01010-51020 | BOLT | 3001-3663 | |
| 10 | 01602-21030 | WASHER,SPRING | 3001-3663 | |
| 11 | 01010-51020 | BOLT | 3001-3663 | |
| 12 | 01602-21030 | WASHER,SPRING | 3001-3663 | |
| 13 | 195-57-21180 | SUSPENSION ASS'Y | 3001-3663 | |
| 14 | 155-57-12320 | KNOB | 3001-3663 | |
| 15 | 155-57-12330 | DAMPER | 3001-3663 | |
| 16 | 01580-11210 | NUT | 3001-3663 | |
| 17 | 01602-21236 | WASHER,SPRING | 3001-3663 | |
| 18 | 195-57-21211 | ADJUSTER,L.H. | 3001-3663 | |
| 19 | 195-57-21221 | ADJUSTER,R.H. | 3001-3663 | |
| 20 | 195-57-21190 | LEVER | 3001-3663 | |
| 21 | 04050-13015 | PIN,COTTER | 3001-3663 | |
| 22 | 04050-14025 | PIN,COTTER | 3001-3663 | |
| 23 | 04025-00432 | PIN,SPRING | 3001-3663 | |
| 24 | 09304-00835 | KNOB | 3001-3663 | |
| 195-57-11100 | TURNING ASS'Y | 3001-3663 | ||
| 25 | 09304-01240 | KNOB | 3001-3663 | |
| 26 | 195-57-11790 | LEVER | 3001-3663 | |
| 27 | 09350-01615 | BUSHING | 3001-3663 | |
| 28 | 195-57-11780 | BRACKET | 3001-3663 | |
| 29 | 195-57-11770 | LEVER | 3001-3663 | |
| 30 | 01322-40616 | SCREW | 3001-3663 | |
| 31 | 195-57-11740 | PLATE | 3001-3663 | |
| 32 | 195-57-11750 | PLATE | 3001-3663 | |
| 33 | 01010-51025 | BOLT | 3001-3663 | |
| 34 | 01643-31032 | WASHER | 3001-3663 | |
| 35 | 195-57-11760 | CAGE | 3001-3663 | |
| 36 | 04065-09030 | RING,SNAP | 3001-3663 | |
| 37 | 06004-06210 | BEARING | 3001-3663 | |
| 38 | 04080-04508 | HOLDER | 3001-3663 | |
| 39 | 01010-51025 | BOLT | 3001-3663 | |
| 40 | 01602-21030 | WASHER,SPRING | 3001-3663 | |
| 41 | 01010-51025 | BOLT | 3001-3663 | |
| 42 | 01602-21030 | WASHER,SPRING | 3001-3663 | |
| 43 | 154-44-12460 | SPRING | 3001-3663 | |
| 44 | 01010-51030 | BOLT | 3001-3663 | |
| 45 | 01602-21030 | WASHER,SPRING | 3001-3663 | |
| 46 | 154-57-13150 | BRACKET | 3001-3663 | |
| 47 | 01580-11210 | NUT | 3001-3663 | |
| 48 | 01643-31232 | WASHER | 3001-3663 | |
| 49 | 01010-51225 | BOLT | 3001-@ | |
| 50 | 01643-31232 | WASHER | 3001-@ | |
| 51 | 154-57-13110 | REST,ARM, L.H. | 3001-@ | |
| 52 | 154-57-13120 | REST,ARM, R.H. | 3001-@ | |
| 53 | 154-57-13140 | PLATE | 3001-@ | |
| 54 | 01010-50820 | BOLT | 3001-@ | |
| 55 | 01643-30823 | WASHER | 3001-@ | |
| 56 | 01010-51020 | BOLT | 3001-@ | |
| 57 | 01643-31032 | WASHER | 3001-@ | |
| 58 | 09409-20000 | BELT, TETHER | 3001-3663 | |
| 59 | 09409-10001 | BELT, LAP | 3001-3663 |
