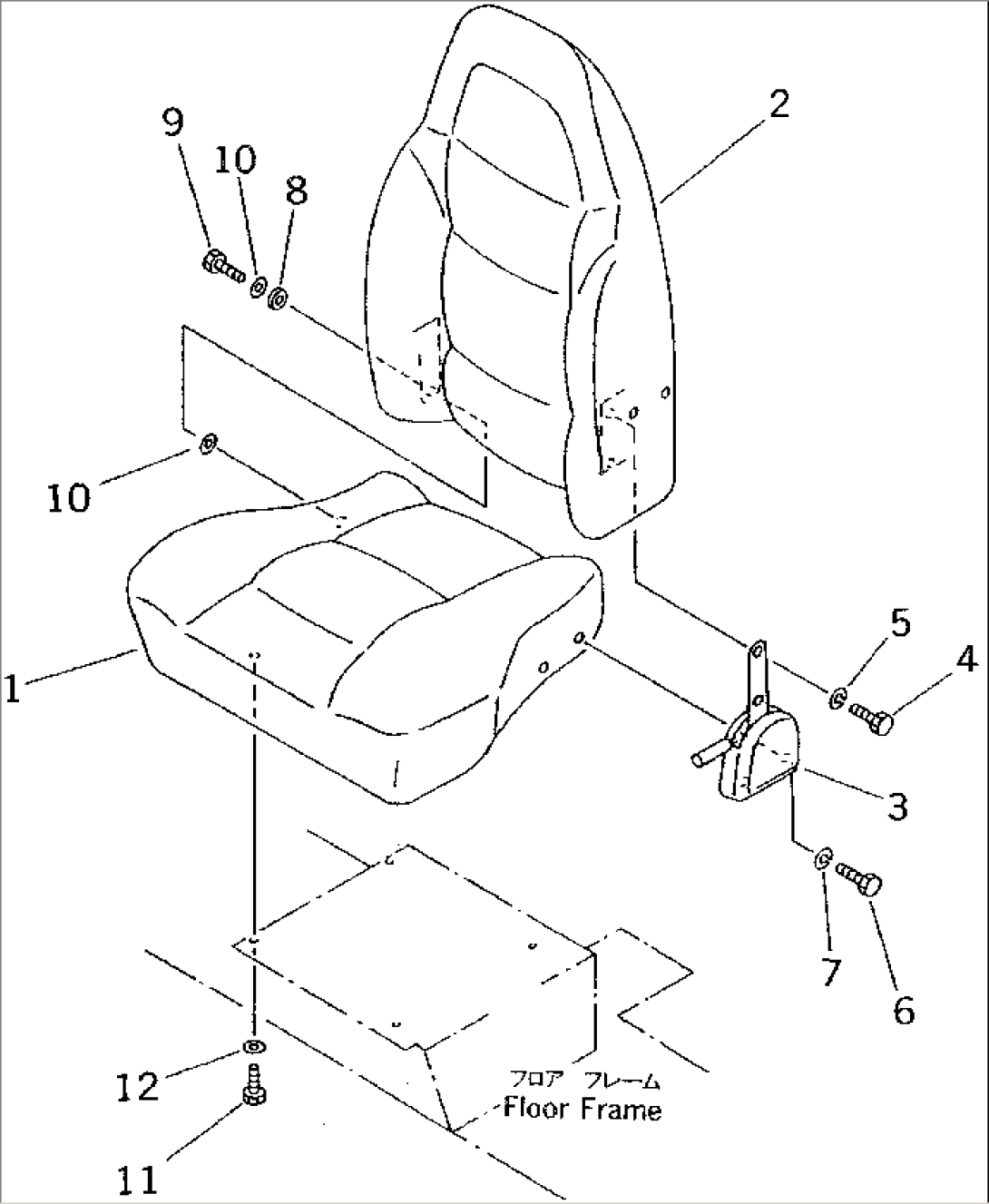

| Item | Part No. | Part Name | Qty | Serial No. |
| 201-57-71100 | SEAT ASS'Y | 50310- | ||
| 1 | 201-57-71110 | CUSHION,SEAT | 50310- | |
| 2 | 201-57-71120 | CUSHION,BACK | 50310- | |
| 3 | 203-57-53220 | RECLINING ASS'Y | 50310- | |
| 4 | 01010-80820 | BOLT | 52741- | |
| 4 | 01010-50820 | BOLT | 50310-52740 | |
| 5 | 01602-20825 | WASHER | 50310- | |
| 6 | 01010-80816 | BOLT | 52741- | |
| 6 | 01010-50816 | BOLT | 50310-52740 | |
| 7 | 01602-20825 | WASHER | 50310- | |
| 8 | 203-57-53180 | COLLAR | 50310- | |
| 9 | 01010-81030 | BOLT | 52741- | |
| 9 | 01010-51030 | BOLT | 50310-52740 | |
| 10 | 01643-31032 | WASHER | 50310- | |
| 11 | 01010-80820 | BOLT | 50310- | |
| 12 | 01643-30823 | WASHER | 50310- |
