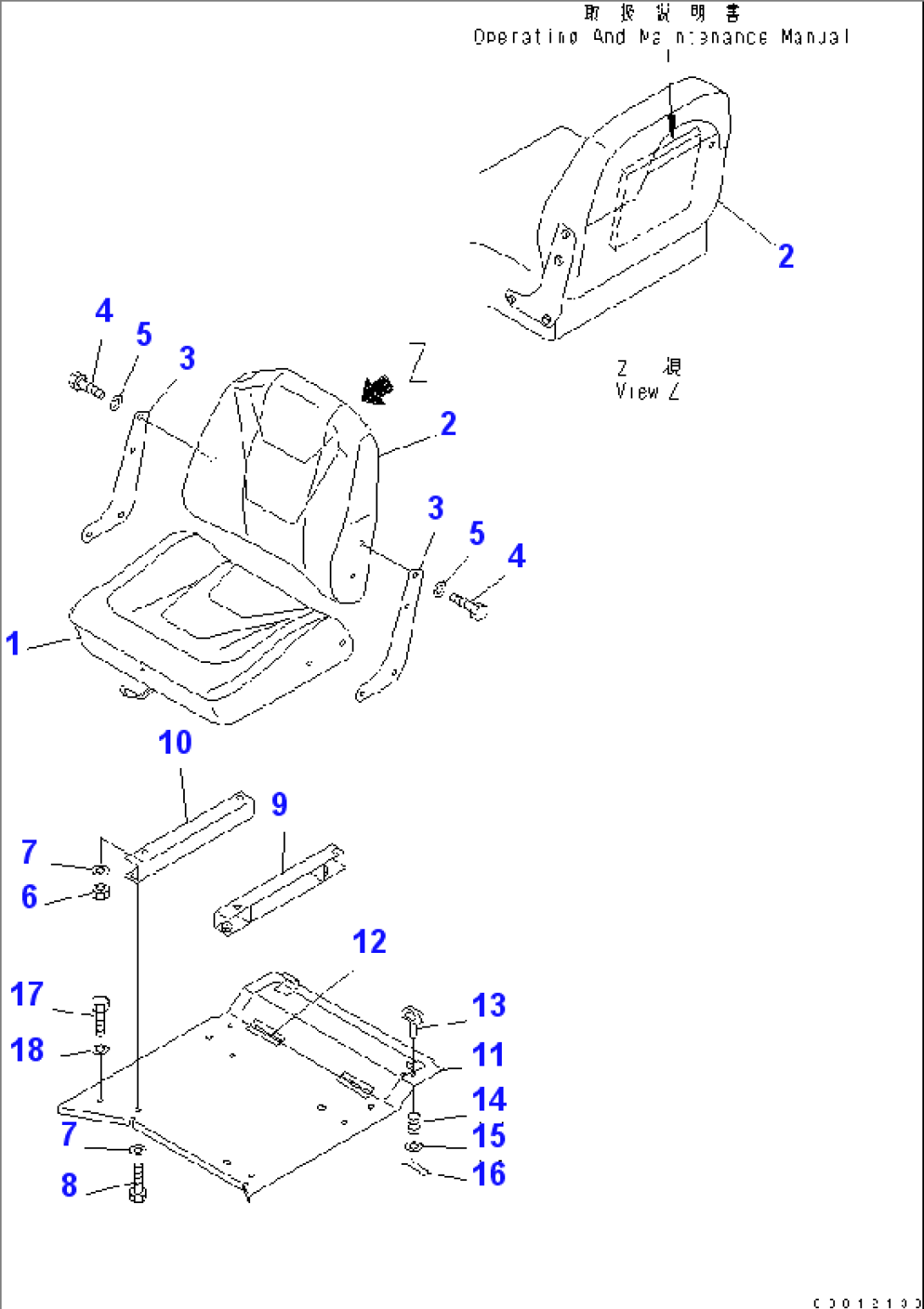

| Item | Part No. | Part Name | Qty | Serial No. |
| 114-57-41251 | SEAT ASS'Y | 90001- | ||
| 1 | 114-57-41260 | CUSHION,SEAT | 90001- | |
| 2 | 114-57-41271 | CUSHION,BACK | 90001- | |
| 3 | 114-57-41280 | PLATE | 90001- | |
| 4 | 01010-80825 | BOLT | 90001- | |
| 5 | 01643-30823 | WASHER | 90001- | |
| 6 | 01580-11210 | NUT | 90001- | |
| 7 | 01643-31232 | WASHER | 90001- | |
| 8 | 01010-81225 | BOLT | 90001- | |
| 9 | 114-57-41171 | BRACKET,L.H. | 90001- | |
| 10 | 114-57-41181 | BRACKET,R.H. | 90001- | |
| 11 | 103-57-51110 | PLATE | 90001- | |
| 12 | 113-54-24190 | HINGE (WELDED) | 90001- | |
| 13 | 09459-11033 | LOCK | 90001- | |
| 14 | 09459-01614 | SPRING | 90001- | |
| 15 | 01642-01016 | WASHER | 90001- | |
| 16 | 04050-13015 | PIN,COTTER | 90001- | |
| 17 | 01010-81025 | BOLT | 90001- | |
| 18 | 01643-31032 | WASHER | 90001- |
