| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-923-3330 | SEAT ASS'Y | 60001- | |
| 2 | 01010-81025 | BOLT | 60001- | |
| 3 | 01643-31032 | WASHER | 60001- | |
| 4 | 01010-81035 | BOLT | 70001- | |
| 5 | 01643-31032 | WASHER | 70001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa320 5 s/n 60001 up
- Operator's compartment and control system
- Operator'seat (auxiliary seat) (for 2 persons cab)
Поиск по каталогу

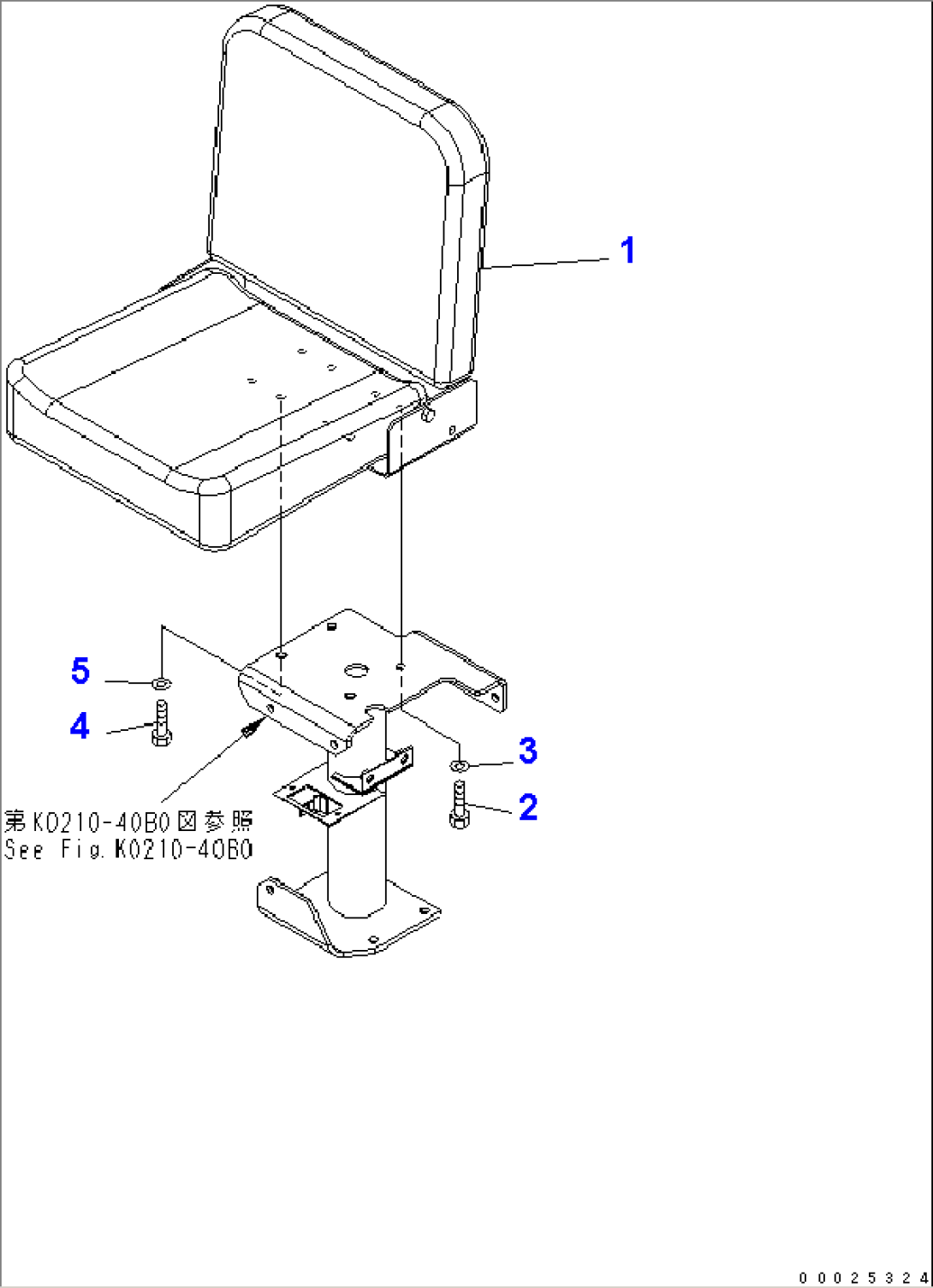

OPERATOR'SEAT (AUXILIARY SEAT) (FOR 2-PERSONS CAB)
