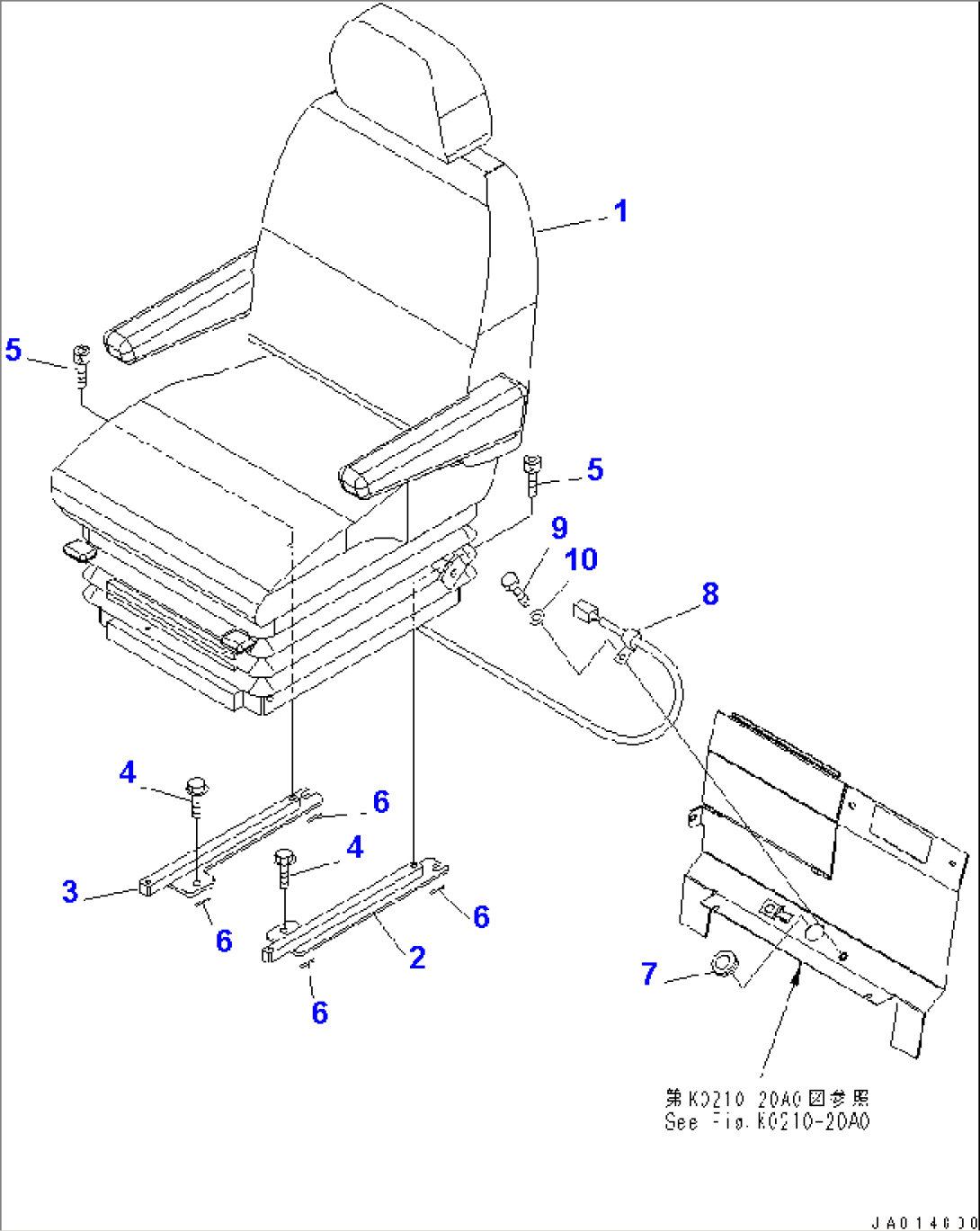

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (418-960-3111) | SEAT ASS'Y,(SEE FIG. K0110-02A2) | 69303- | |
| 1 | (\0\418-960-3110) | SEAT ASS'Y,(SEE FIG. K0110-02A2) | 65001-69302 | |
| 2 | 421-960-A111 | BRACKET | 65001- | |
| 3 | 421-960-A121 | BRACKET | 65001- | |
| 4 | 01435-01225 | BOLT | 65001- | |
| 5 | 01252-70820 | BOLT | 65001- | |
| 6 | 421-57-31190 | SHIM, 0.50MM | 69261- | |
| 7 | 08037-02512 | GROMMET | 65001- | |
| 8 | 04434-51010 | CLIP | 65001- | |
| 9 | 01010-81020 | BOLT | 65001- | |
| 10 | 01643-31032 | WASHER | 65001- |
