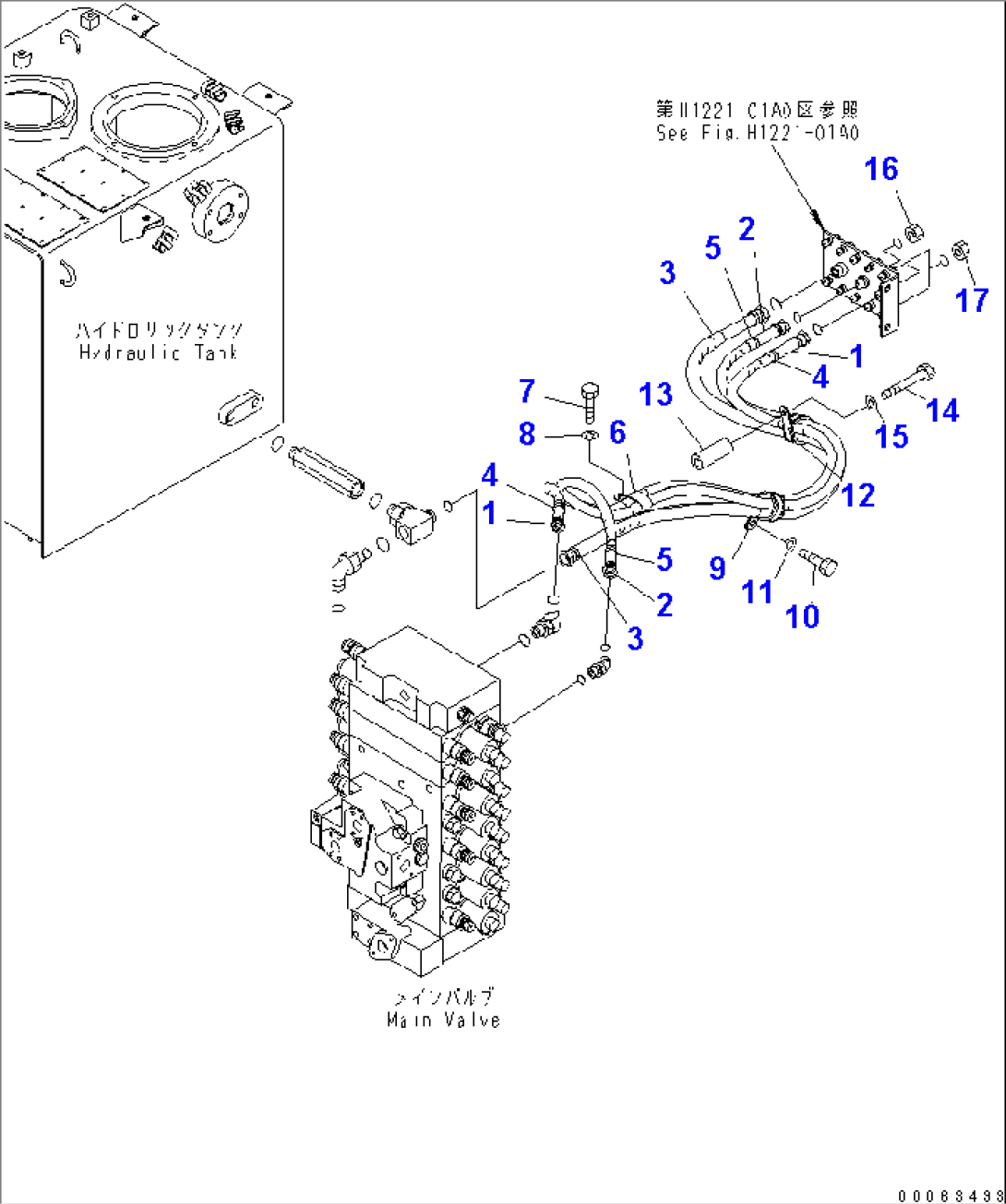

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02753-00421 | HOSE | 1001- | |
| 2 | 02753-00423 | HOSE | 1001- | |
| 3 | 02753-00517 | HOSE | 1001- | |
| 4 | 20Y-62-22810 | BAND, YELLOW | 1001- | |
| 5 | 20Y-62-22850 | BAND, GREEN | 1001- | |
| 6 | 04435-52112 | CLIP | 1001- | |
| 7 | 01010-81225 | BOLT | 1001- | |
| 8 | 01643-31232 | WASHER | 1001- | |
| 9 | 8234-62-2350 | CLIP | 1001- | |
| 10 | 01010-81225 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 8234-62-2350 | CLIP | 1001- | |
| 13 | 581-60-17860 | SPACER | 1001- | |
| 14 | 01011-81205 | BOLT | 1001- | |
| 15 | 01643-31232 | WASHER | 1001- | |
| 16 | 02789-10422 | PLUG | 1001- | |
| 17 | 02789-10210 | PLUG | 1001- |
