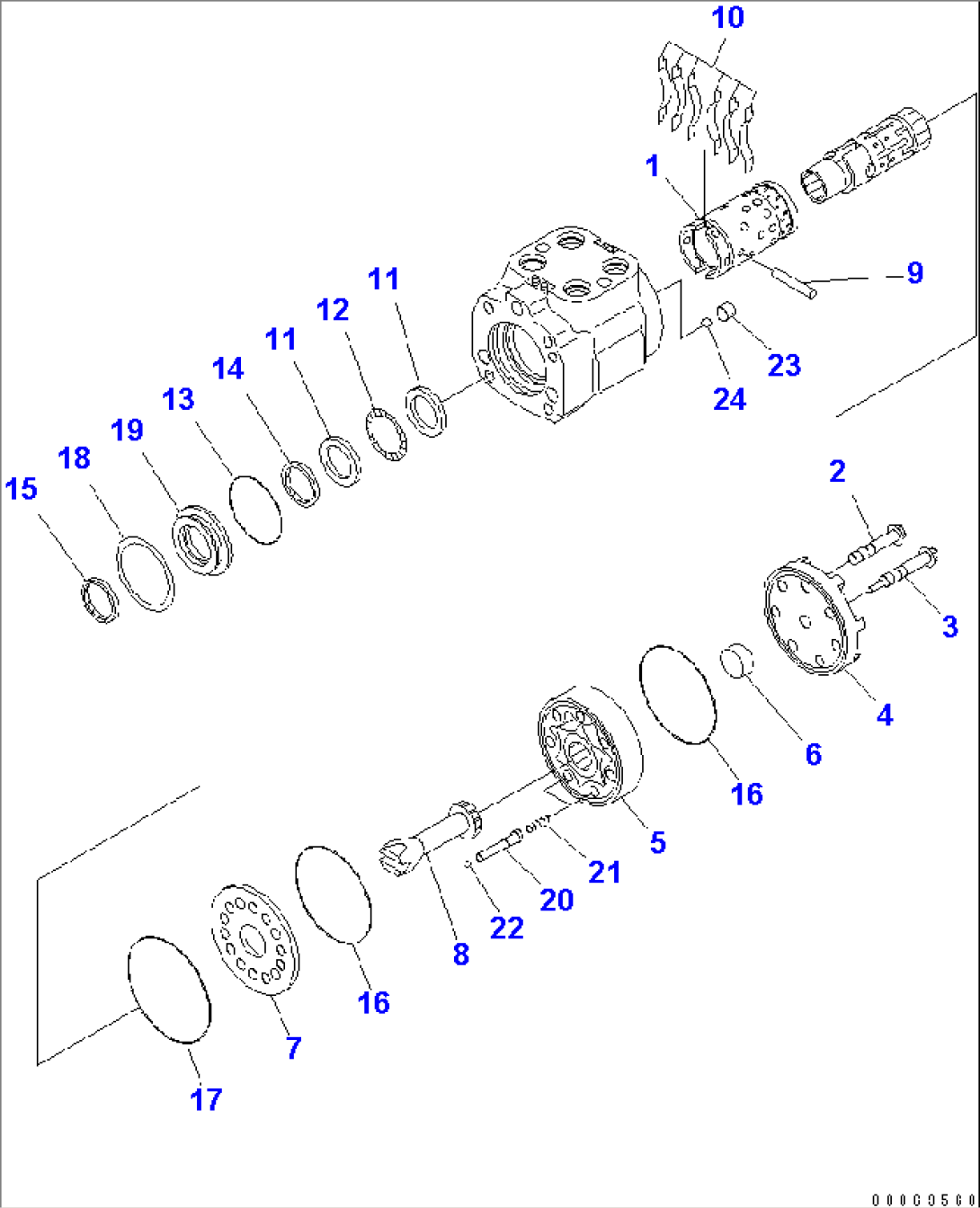

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-64-35101 | VALVE ASS'Y | A89001- | |
| 2 | ST5389-13 | SCREW | A89001- | |
| 3 | ST5389R-013 | SCREW,RETAINER | A89001- | |
| 4 | ST8438S-1 | CAP | A89001- | |
| 5 | ST8618-10 | GEROTOR | A89001- | |
| 6 | ST8352S-1 | SPACER | A89001- | |
| 7 | ST7970 | PLATE | A89001- | |
| 8 | ST5126 | DRIVE | A89001- | |
| 9 | ST15 | PIN | A89001- | |
| 10 | ST230327 | SPRING | A89001- | |
| ST64009 | BEARING | A89001- | ||
| 11 | ST8329 | RACE | A89001- | |
| 12 | ST5544 | BEARING | A89001- | |
| STBA0363A | SEAL | A89001- | ||
| 13 | \6\ | O-RING | A89001- | |
| 14 | \6\ | SEAT | A89001- | |
| 15 | \6\ | SEAT | A89001- | |
| 16 | \6\ | O-RING | A89001- | |
| 17 | \6\ | O-RING | A89001- | |
| 18 | ST14317 | RING | A89001- | |
| 19 | STBA0362B | BUSHING | A89001- | |
| 20 | ST21785 | RETAINER | A89001- | |
| 21 | ST230313 | SPRING | A89001- | |
| 22 | ST18015 | BALL | A89001- | |
| 23 | STBA0096A | SCREW | A89001- | |
| 24 | STBA0097A | BALL | A89001- |
