| Item | Part No. | Part Name | Qty | Serial No. |

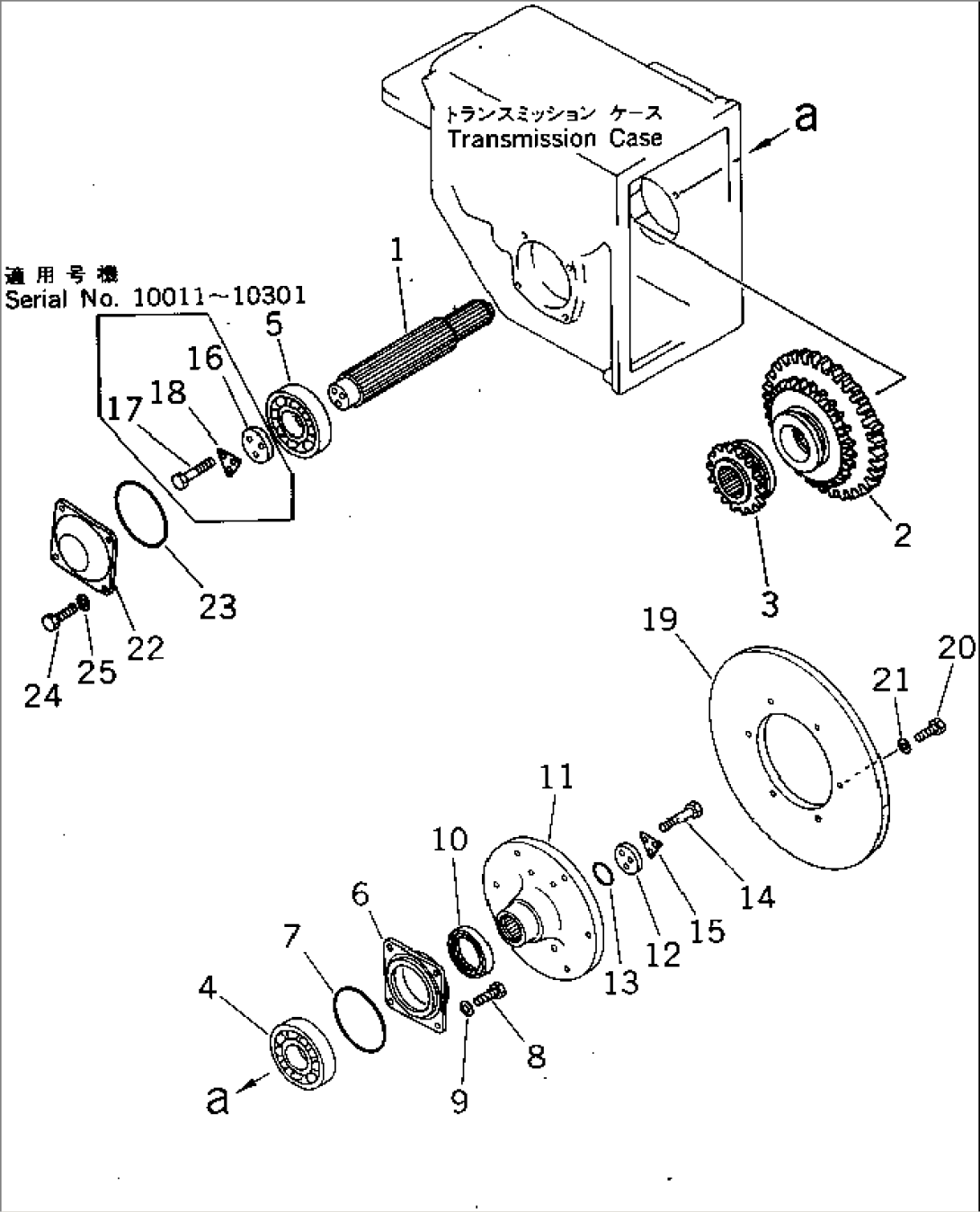

| (273-14-11000) | TRANSMISSION ASS'Y | 30003- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2401 TO 2407. | ||||
| 1 | 273-14-11411 | SHAFT,OUTPUT | 30046- | |
| 273-14-11410 | SHAFT,OUTPUT | 30003-30045 | ||
| 2 | 273-14-11430 | GEAR | 30003- | |
| 3 | 273-14-11420 | GEAR | 30003- | |
| 4 | 06044-00309 | BEARING | 30003- | |
| 5 | 06040-06309 | BEARING | 30003- | |
| 6 | 273-14-11150 | COVER | 30003- | |
| 7 | 07000-12105 | O-RING | 30003- | |
| 8 | 01010-51025 | BOLT | 30003- | |
| 9 | 01643-31032 | WASHER | 30003- | |
| 10 | 236-22-23221 | SEAL,OIL | 30003- | |
| 11 | 273-14-11440 | FLANGE | 30003- | |
| 12 | 238-14-12310 | HOLDER | 30003- | |
| 13 | 02893-05037 | O-RING | 30003- | |
| 14 | 07372-21040 | BOLT | 30003- | |
| 15 | 238-14-12320 | LOCK | 30003- | |
| 16 | 238-14-12610 | HOLDER | 30003-30045 | |
| 17 | 01010-51040 | BOLT | 30003-30045 | |
| 18 | 238-14-12340 | LOCK | 30003-30045 | |
| 19 | 273-14-11450 | DISK | 30003- | |
| 20 | 01010-51025 | BOLT | 30003- | |
| 21 | 01643-31032 | WASHER | 30003- | |
| 22 | 273-14-11140 | COVER | 30003- | |
| 23 | 07000-12105 | O-RING | 30003- | |
| 24 | 01010-51025 | BOLT | 30003- | |
| 25 | 01643-31032 | WASHER | 30003- |
