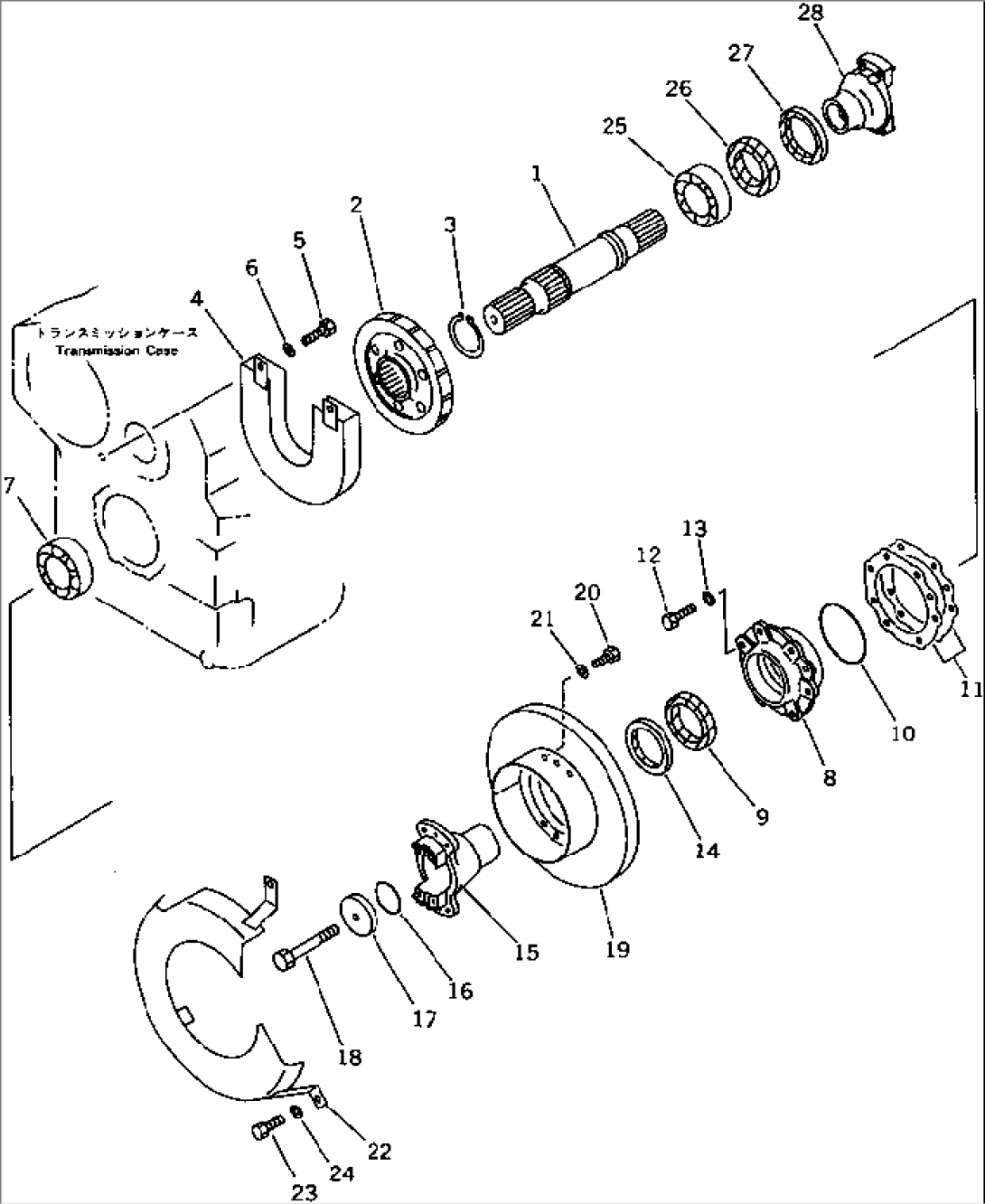

| Item | Part No. | Part Name | Qty | Serial No. |
| (418-15-11040) | TRANSMISSION ASS'Y | 10001- | ||
| 1 | 419-15-13510 | SHAFT,OUTPUT | 10001- | |
| 2 | 418-15-11121 | GEAR | 10001- | |
| 3 | 04064-07025 | RING,SNAP | 10001- | |
| 4 | 419-15-13711 | COVER,GEAR | 10270- | |
| 4 | \1\419-15-13710 | COVER,GEAR | 10001-10269 | |
| 5 | 01010-31225 | BOLT | 10001- | |
| 6 | 01643-31232 | WASHER | 10001- | |
| 7 | 06002-30212 | BEARING | 10001- | |
| 8 | 419-15-13551 | RETAINER | 10001- | |
| 9 | 419-15-13650 | SEAL,OIL (K1) | 10001- | |
| 10 | 07000-02130 | O-RING (K1) | 10001- | |
| 11 | 419-15-13620 | SHIM, 0.05MM (K1) | 10001- | |
| 11 | 419-15-13630 | SHIM, 0.1MM (K1) | 10001- | |
| 11 | 419-15-13640 | SHIM, 0.2MM (K1) | 10001- | |
| 12 | 01010-31230 | BOLT | 10001- | |
| 13 | 01643-31232 | WASHER | 10001- | |
| 14 | 419-15-13660 | SEAL,DUST | 10001- | |
| 15 | 419-15-13533 | COUPLING,FRONT | 10001- | |
| 16 | 07000-32055 | O-RING (K1) | 10001- | |
| 17 | 423-22-11240 | HOLDER | 10001- | |
| 18 | 01011-31610 | BOLT | 10001- | |
| 19 | 419-43-15631 | DISC,PARKING BRAKE | 10001- | |
| 20 | 01010-31240 | BOLT | 10001- | |
| 21 | 01643-31232 | WASHER | 10001- | |
| 22 | 419-15-13721 | COVER | 10001- | |
| 23 | 01010-31225 | BOLT | 10001- | |
| 24 | 01643-31232 | WASHER | 10001- | |
| 25 | 06002-30212 | BEARING | 10001- | |
| 26 | 419-15-13650 | SEAL,OIL (K1) | 10001- | |
| 27 | 419-15-13660 | SEAL,DUST (K1) | 10001- | |
| 28 | 419-15-13071 | COUPLING,REAR | 10001- |
