| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-856-2871 | OUTRIGGER | F61778- | |
| 2 | 42N-46-11530 | DISK | F61778- | |
| 3 | 42N-856-1440 | PIN | F61778- | |
| 4 | 01010-81090 | BOLT | F61778- | |
| 5 | 21D-09-24190 | NUT | F61778- | |
| SEE FIG. 7200 | ||||
| SEE FIG. 7220 | ||||
| SEE FIG. 7230 |
Поиск по каталогу

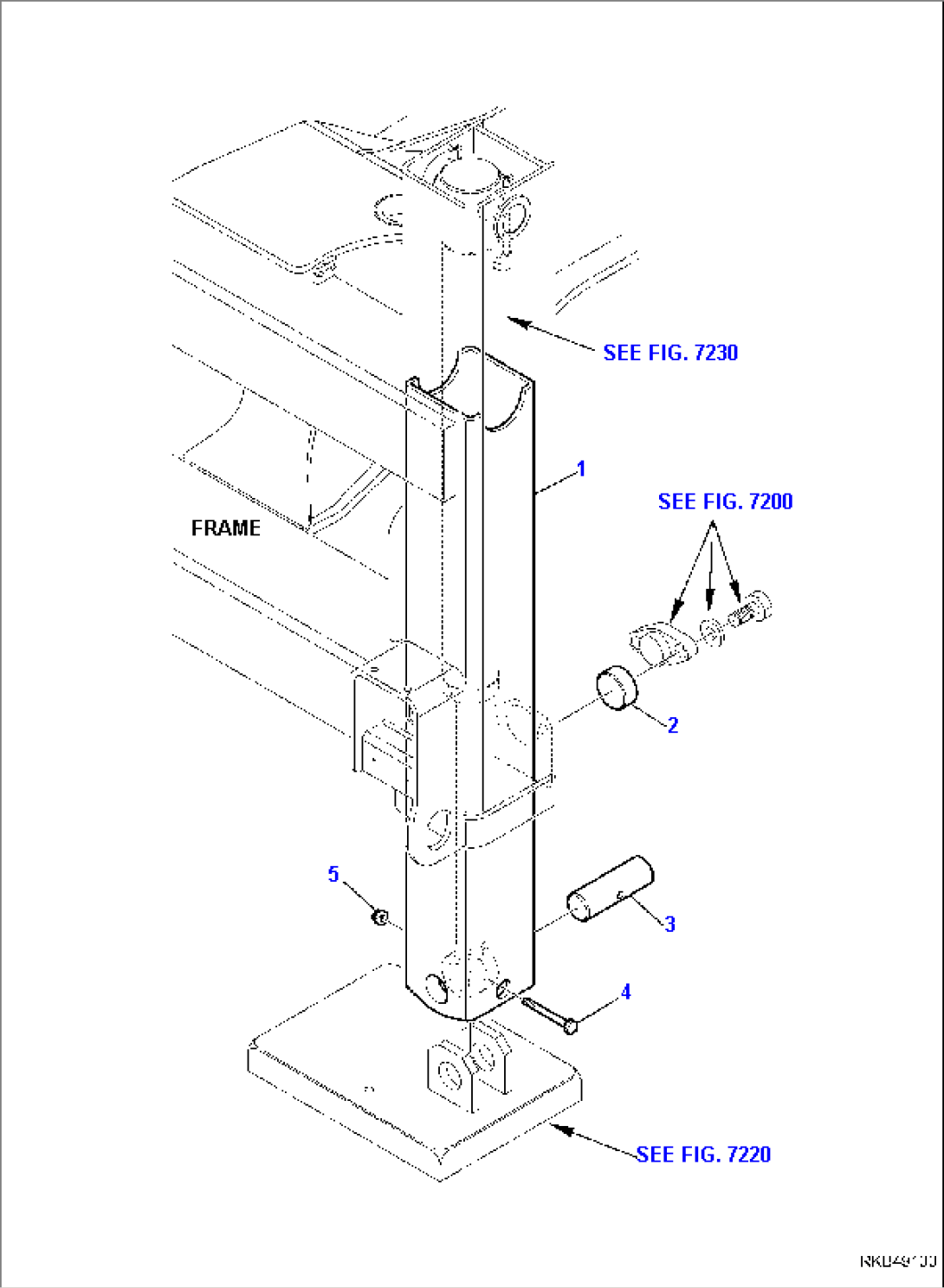

OUTRIGGER (2/2)
