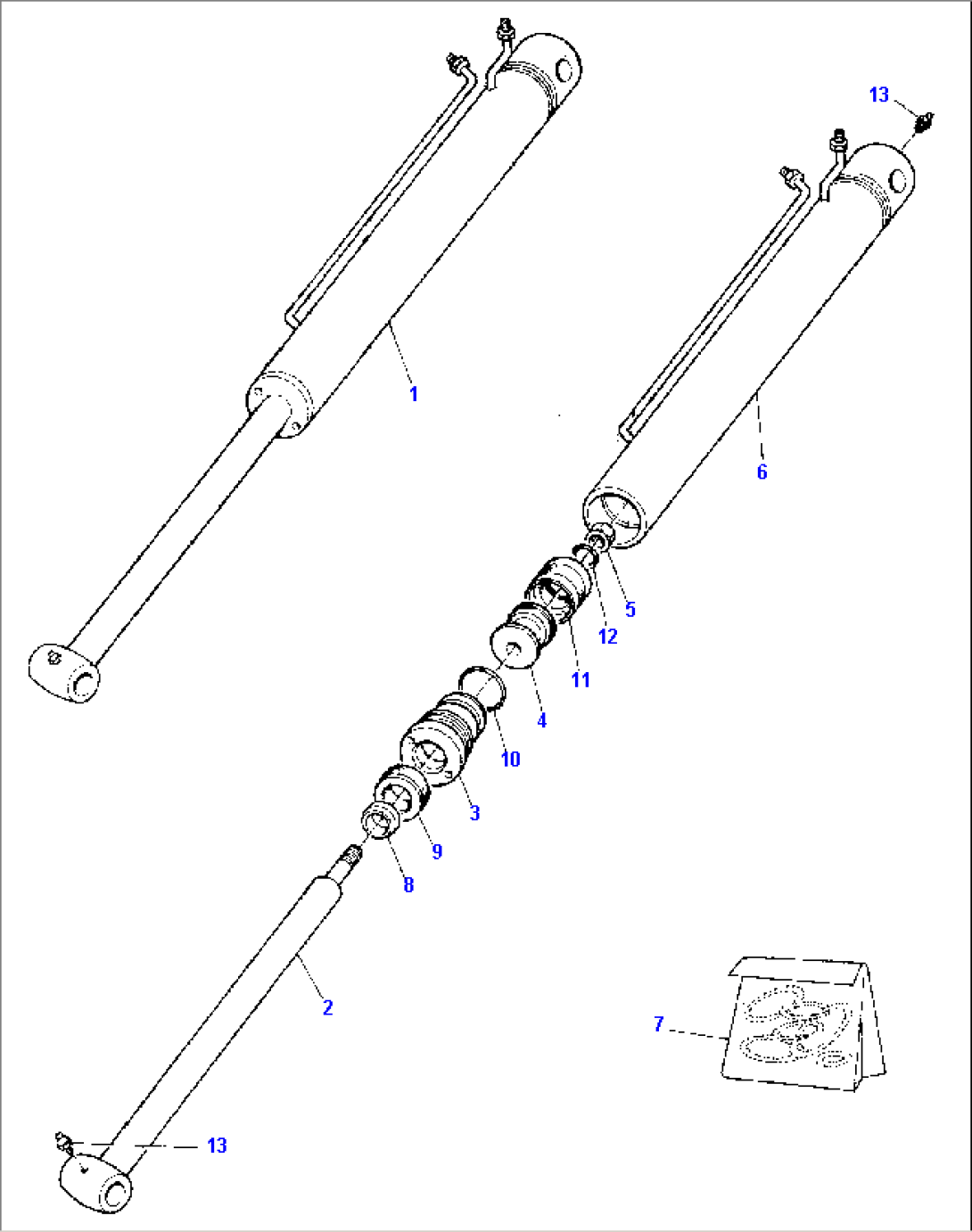

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | UE3059005 | OUTRIGGER CYLINDER, ASSY. | F10001- | |
| 2 | UE3050040 | PISTON ROD | F10001- | |
| 3 | UE3050041 | CYLINDER HEAD | F10001- | |
| 4 | UE3050042 | PISTON | F10001- | |
| 5 | 801862418 | NUT | F10001- | |
| 6 | UE3050043 | CYLINDER | F10001- | |
| 7 | UE3050044 | KIT, GASKET | F10001- | |
| 8 | \6\ | GASKET | F10001- | |
| 9 | \6\ | GASKET | F10001- | |
| 10 | \6\ | O-RING | F10001- | |
| 11 | \6\ | GASKET | F10001- | |
| 12 | \6\ | O-RING | F10001- | |
| 13 | 860010007 | FITTING | F10001- |
