| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20E-47-K1463 | LEG | K30855- | |
| 20E-47-K1462 | LEG | K30841-K30854 | ||
| 20E-47-K1461 | LEG | K30545-K30840 | ||
| 2 | 20E-47-K1560 | PIN | K30545- | |
| 3 | 04052-11664 | PIN | K30545- | |
| 4 | 01641-21626 | WASHER | K30545- | |
| 5 | 20E-47-K1390 | BRACKET | K30545- |
- Главная
- Каталог запчастей
- Колесные экскаваторы
- Pw130es 6k s/n k30545 up
- Suspention and wheel
- Outrigger (leg) (for front outrigger)
Поиск по каталогу

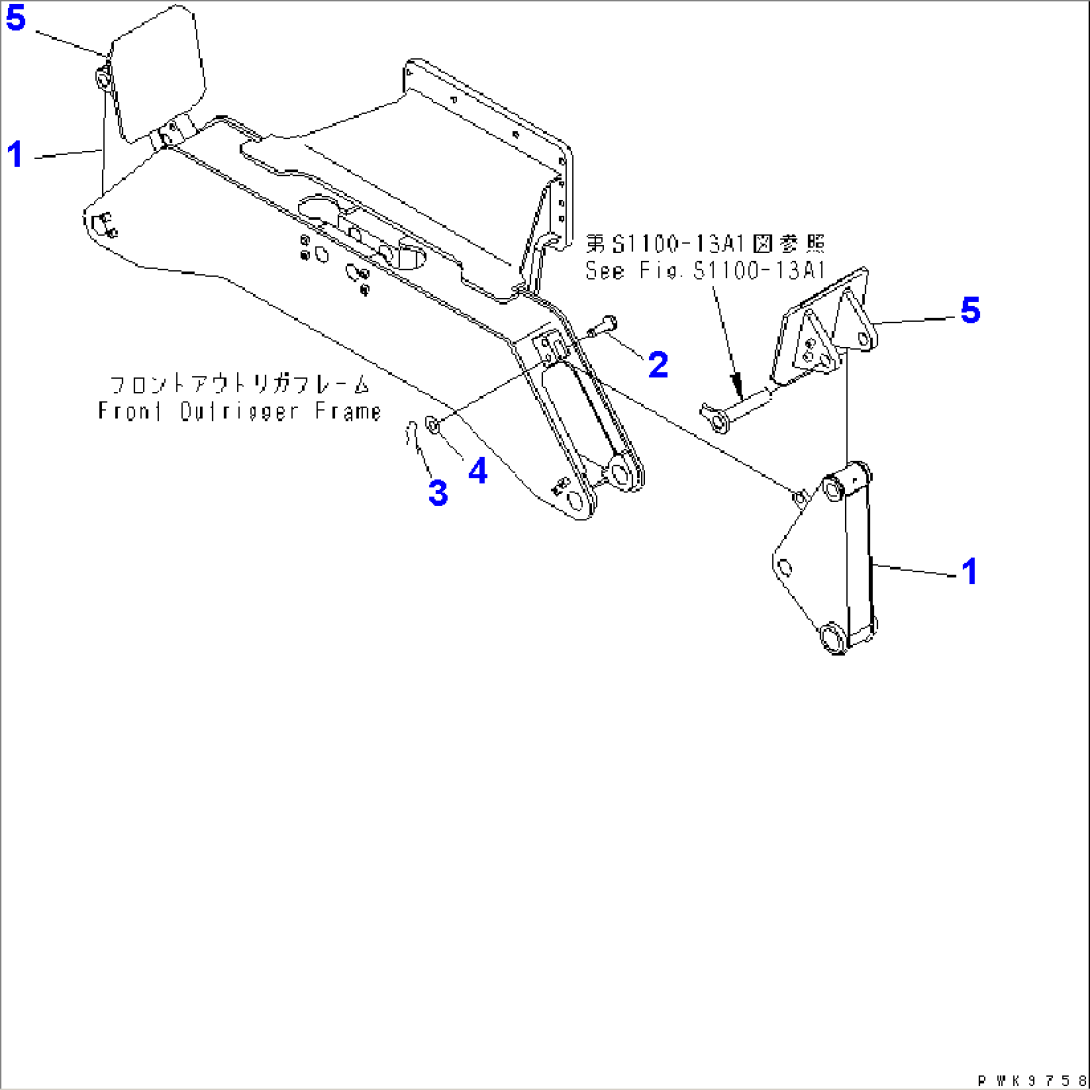

OUTRIGGER (LEG) (FOR FRONT OUTRIGGER)
