| Item | Part No. | Part Name | Qty | Serial No. |

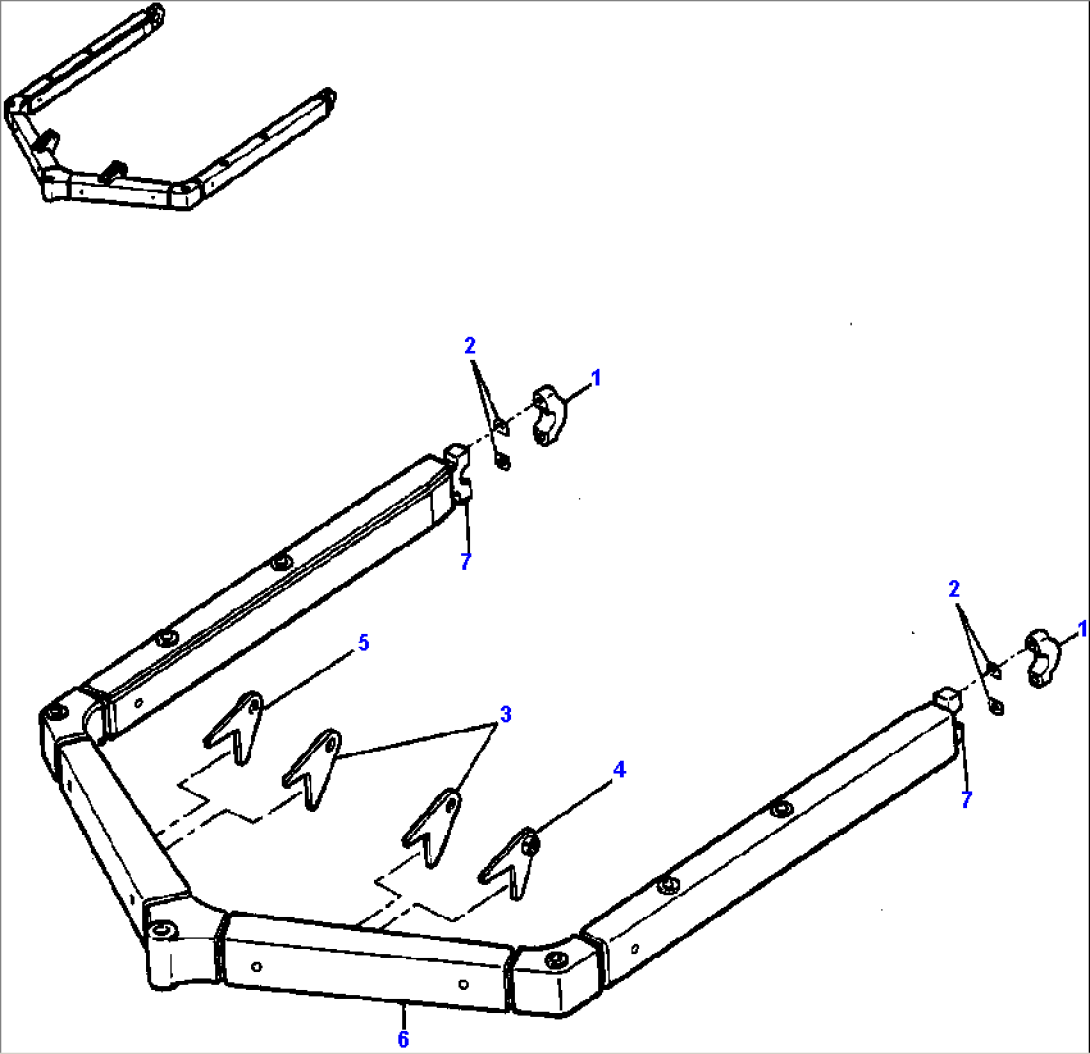

| 647 307 C91 | FRAME ASSEMBLY, C | |||
| 1 | 292 929 R1 | CAP, TRUNNION | ||
| 24 895 R1 | BOLT, MOUNTING - 3/4NCx4-1/2 | |||
| 25 538 R1 | WASHER, FLAT - 3/4 | |||
| 292 930 R1 | NUT, SQUARE - 3/4NC | |||
| 2 | 292 931 R1 | SHIM, TRUNNION CAP | ||
| 647 193 C91 | WELDMENT, C FRAME | |||
| 3 | 668 550 C1 | PLATE, INNER LIFT LUG | ||
| 4 | 647 164 C2 | PLATE, LEFT LIFT LUG | ||
| 5 | 647 165 C2 | PLATE, RIGHT LIFT LUG | ||
| 6 | (NSS) | FRAME, C | ||
| 7 | 647 171 C1 | BEARING, TRUNNION | ||
| F1 - FOR MOUNTING SEE PG 17-018. | ||||
| F2 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE | ||||
| ONLY. |
