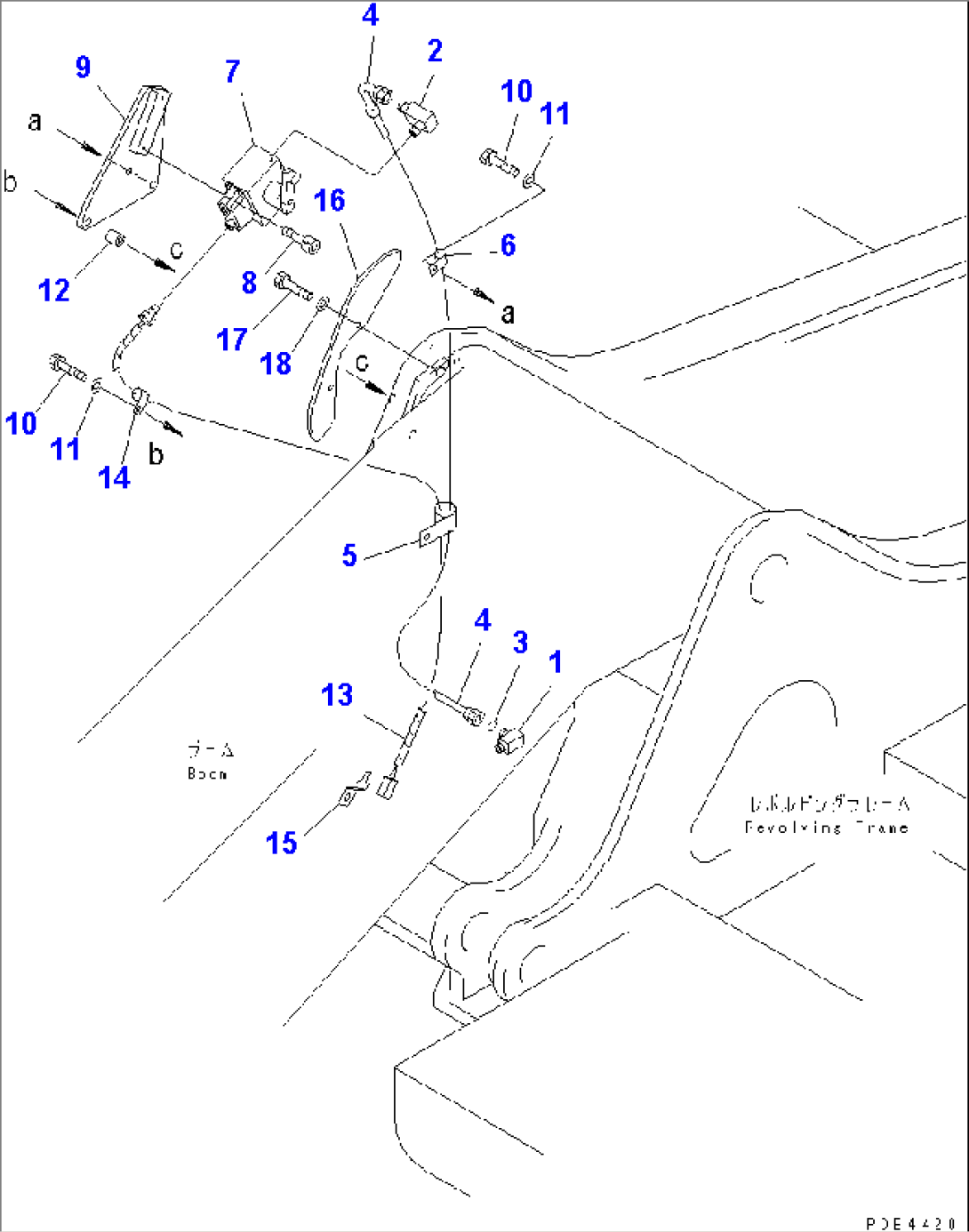

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-K2250 | UNION | K30001-K30011 | |
| 2 | 20Y-62-K3440 | ELBOW | K30001-K30011 | |
| 3 | 07002-12034 | O-RING | K30001-K30011 | |
| 4 | 20Y-62-K3431 | HOSE | K30001-K30011 | |
| 5 | 424-09-12550 | CLIP | K30001-K30011 | |
| 6 | 04434-51412 | CLIP | K30001-K30011 | |
| 7 | 205-62-69240 | SWITCH | K30001-K30011 | |
| 8 | 01252-40616 | BOLT | K30001-K30011 | |
| 9 | 207-62-K2880 | BRACKET | K30001-K30011 | |
| 10 | 01010-51265 | BOLT | K30001-K30011 | |
| 11 | 01643-31232 | WASHER | K30001-K30011 | |
| 12 | 21T-72-23290 | SPACER | K30001-K30011 | |
| 13 | 20Y-06-K2530 | HARNESS | K30001-K30011 | |
| 14 | 08036-01214 | CLIP | K30001-K30011 | |
| 15 | 08053-01512 | CLIP | K30001-K30011 | |
| 16 | 207-62-K3270 | CAN,(STD AND LONG ARM) | K30001-K30011 | |
| 207-62-K3260 | CAN,(SHORT ARM) | K30001-K30011 | ||
| 17 | 01010-51230 | BOLT | K30001-K30011 | |
| 18 | 01643-31232 | WASHER | K30001-K30011 |
