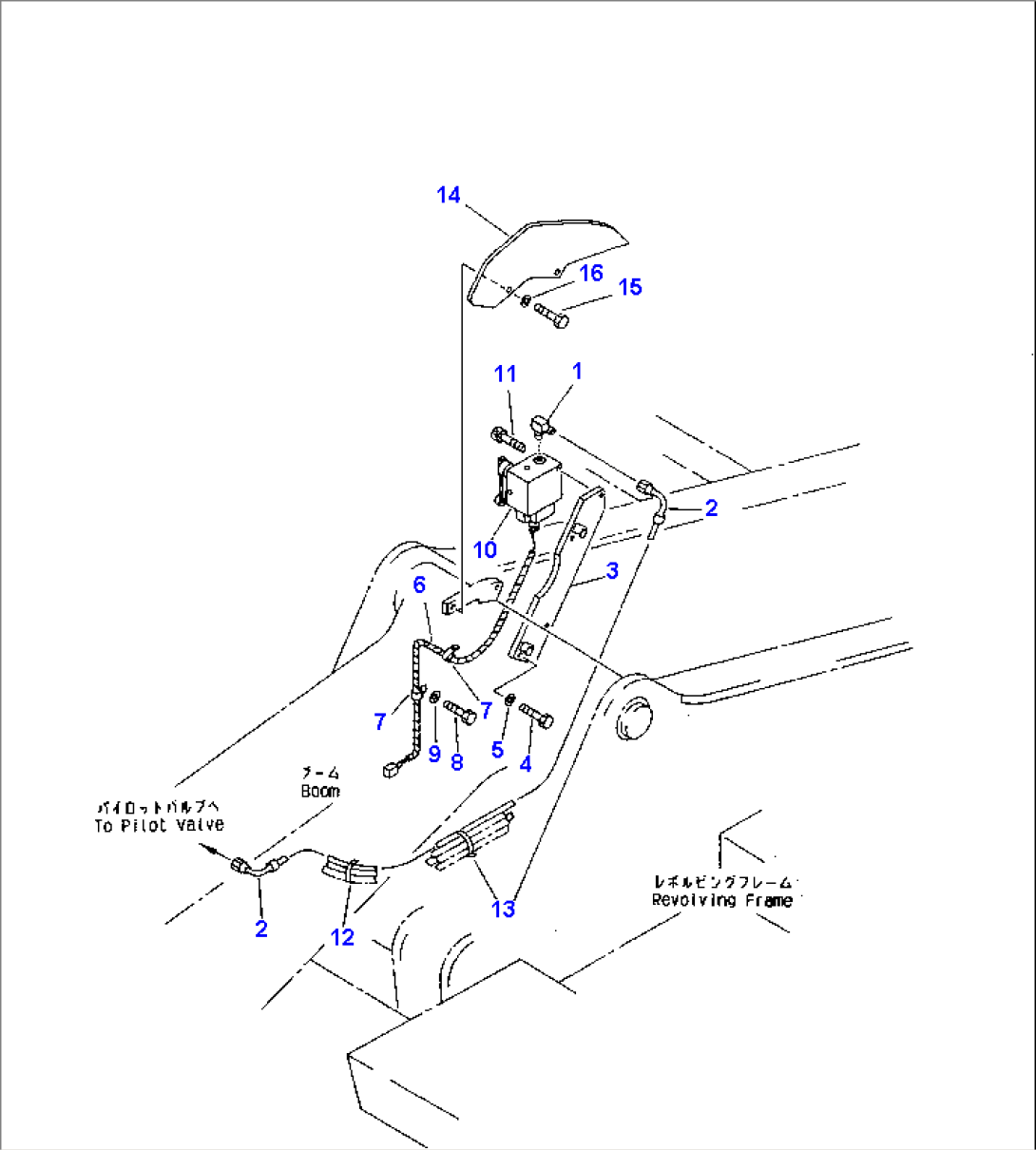

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-K3440 | ELBOW | K30001-K31180 | |
| 2 | 20Y-62-K3431 | HOSE | K30001-K31180 | |
| 3 | 20Y-62-K3450 | BRACKET | K30001-K31180 | |
| 4 | 01010-51230 | BOLT | K30001-K31180 | |
| 5 | 01643-31232 | WASHER | K30001-K31180 | |
| 6 | 20Y-06-K2530 | HARNESS | K30297-K31180 | |
| 20Y-06-28280 | HARNESS | K30001-K30296 | ||
| 7 | 08036-01014 | CLIP | K30001-@ | |
| 8 | 01010-51230 | BOLT | K30001-K31180 | |
| 9 | 01643-31232 | WASHER | K30001-@ | |
| 10 | 205-62-69240 | SWITCH | K30001-K31180 | |
| 11 | 01252-40616 | BOLT | K30001-K31180 | |
| 12 | 08034-00519 | BAND | K30001-@ | |
| 13 | 08034-00536 | BAND | K30001-K31180 | |
| 14 | 206-62-K1490 | CAM,(2.0¤ 2.5M ARM) | K30001-K31180 | |
| 206-62-68120 | CAM,(3.0¤ 3.5M ARM) | K30001-K31180 | ||
| 206-62-K1630 | CAM,(2.0¤ 2.5M ARM) (2-PIECE BOOM) | K30001-K31180 | ||
| 206-62-K1640 | CAM,(3.0¤ 3.5M ARM) (2-PIECE BOOM) | K30001-K31180 | ||
| 15 | 01010-51230 | BOLT | K30001-K31180 | |
| 16 | 01643-31232 | WASHER | K30001-K31180 |
