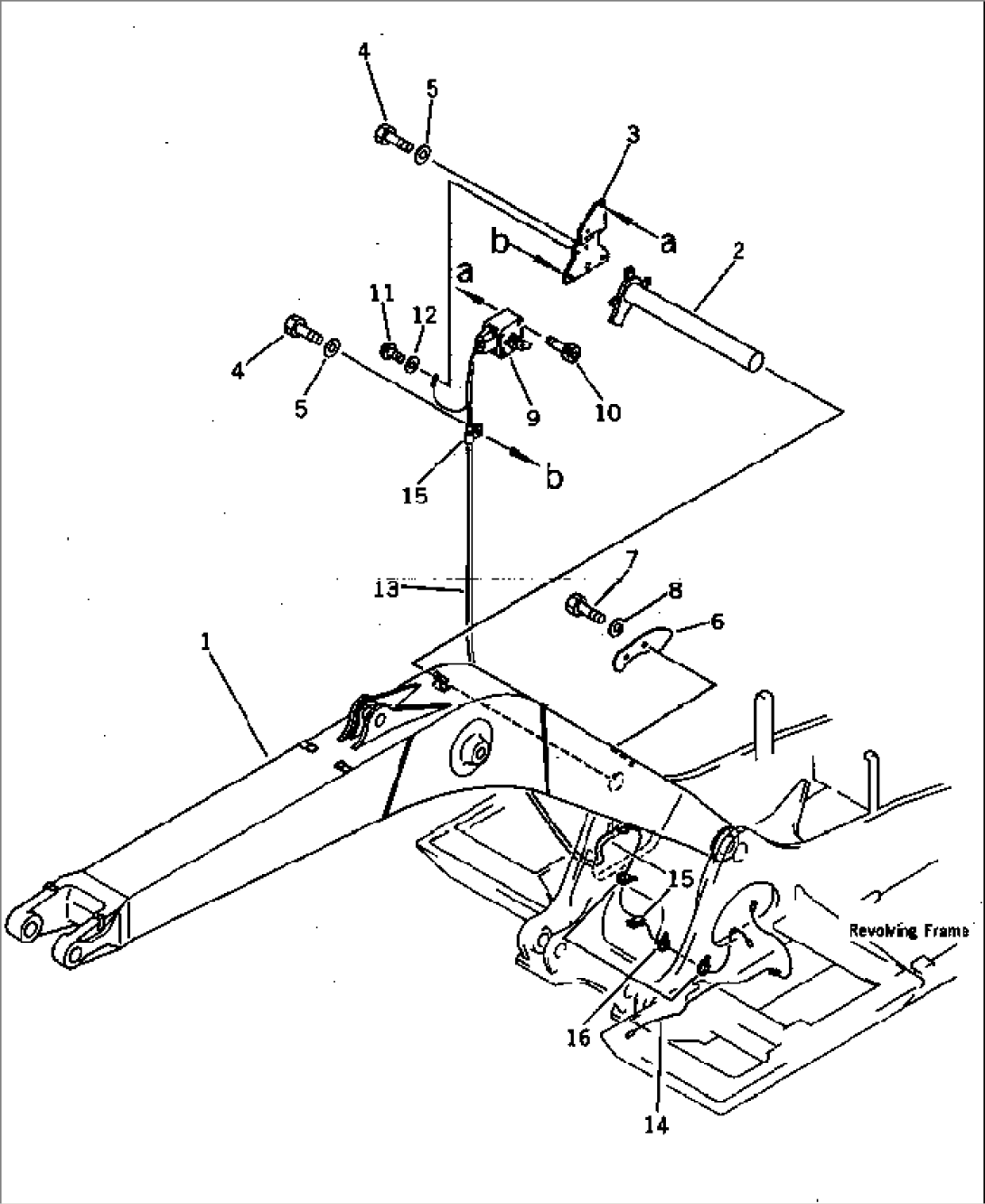

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-70-31313 | BOOM | 12351- | |
| 1 | 207-70-31312 | BOOM | 12001-12350 | |
| 2 | 207-70-31330 | PIN | 12001- | |
| 3 | 207-62-31930 | BRACKET | 12001- | |
| 4 | 01010-51230 | BOLT | 12001- | |
| 5 | 01643-31232 | WASHER | 12001- | |
| 6 | 207-62-31950 | CAM | 12001- | |
| 7 | 01010-51230 | BOLT | 12001- | |
| 8 | 01643-31232 | WASHER | 12001- | |
| 9 | 205-62-69240 | SWITCH | 12001- | |
| 10 | 01252-40616 | BOLT | 12001- | |
| 11 | 01220-40612 | SCREW | 12001- | |
| 12 | 01643-30623 | WASHER | 12001- | |
| 13 | 205-06-71780 | WIRE ASS'Y | 12001- | |
| 14 | 207-06-31130 | WIRE | 12001- | |
| 15 | 08036-21414 | CLIP | 12001- | |
| 16 | 08034-00519 | BAND | 12001- |
