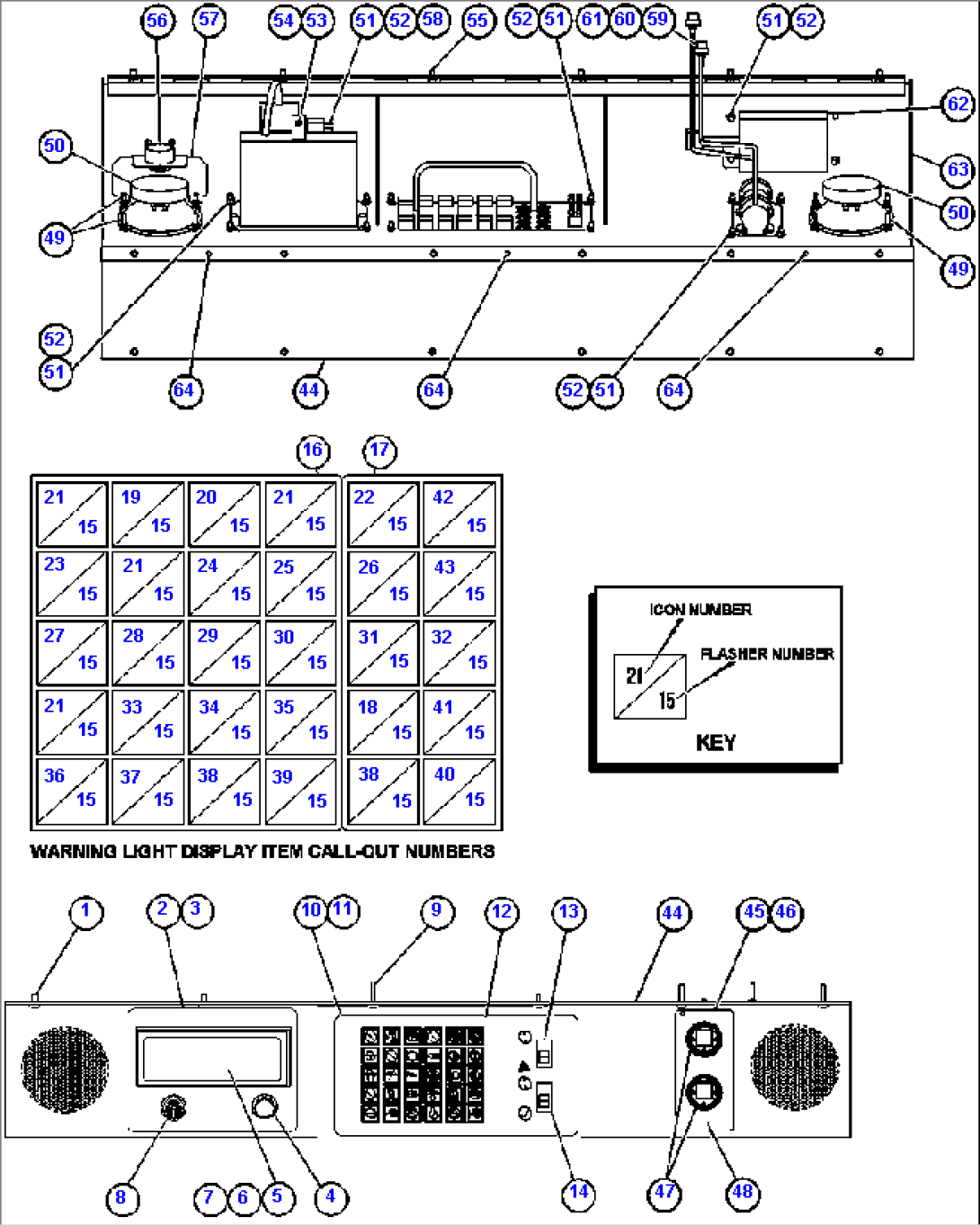

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | SM0926 | SCREW, PANEL | | |
| 2 | EJ8292 | RADIO MODULE (1) | | |
| 3 | SM5332 | PLATE, MOUNTING | | |
| 3 | SM2701 | OVERLAY, LEXAN | | |
| 4 | ED2863 | POTENTIOMETER | | |
| 5 | PC1164 | RADIO | | |
| 5 | PB9985 | ANTENNA, RADIO (LEFT DECK, FRONT OUTSIDE CORNER) | | |
| 5 | PB9957 | CABLE, ANTENNA EXTENSION | | |
| 6 | EK4230 | SUPPORT | | |
| 7 | EJ1556 | HARNESS, RADIO INTERFACE | | |
| 8 | PC0441 | SONALARM, SIGNAL | | |
| 9 | PB8658 | SCREW, MACHINE | | |
| 10 | EK1407 | WARNING LIGHTS MODULE (1) | | |
| 11 | SM2712 | PLATE, WARNING LIGHT | | |
| 12 | SM2819 | LEXAN OVERLAY, WARNING LIGHTS | | |
| 13 | PB6972 | SWITCH, ROCKER | | |
| 14 | PB9723 | SWITCH, ROCKER | | |
| 15 | SM4443 | FLASHER ASSEMBLY - CLEAR LENS | | |
| 15 | VL6234 | LAMP | | |
| 16 | EK2354 | HARNESS, LAMP SOCKET | | |
| 17 | EH7298 | SOCKET, IND LIGHTS | | |
| 18 | SM4473 | DECAL, CYLINDER OIL TEMPERATURE | | |
| 19 | SM5083 | DECAL, CYLINDER OIL LEVEL | | |
| 20 | SM5052 | DECAL, PARKING BRAKE | | |
| 21 | SM4315 | DECAL, NOT USED | | |
| 21 | EG3303 | DECAL, LOW LUBE PRESSURE | | |
| 21 | EJ8283 | DECAL, CRANK MOTOR FAILURE | | |
| 22 | SM5103 | DECAL, NO POWER | | |
| 23 | SM5065 | DECAL, STEERING SYSTEM PRESSURE | | |
| 24 | SM5056 | DECAL, BRAKE | | |
| 25 | SM4470 | DECAL, BACKUP LIGHTS | | |
| 26 | SM5099 | DECAL, PROPULSION SYSTEM WARNING | | |
| 27 | SM5053 | DECAL, ACCUM PRE-CHARGE PRESSURE | | |
| 28 | SM5089 | DECAL, CIRCUIT BREAKER TRIPPED | | |
| 29 | SM5075 | DECAL, BODY-UP | | |
| 30 | SM5072 | DECAL, 5 MINUTE ENGINE SHUTDOWN TIMER | | |
| 31 | SM5098 | DECAL, PROPULSION SYSTEM TEMP | | |
| 32 | SM5105 | DECAL, PROPULSION SYSTEM NOT READY | | |
| 33 | SM5084 | DECAL, CYLINDER OIL FILTER | | |
| 34 | SM5070 | DECAL, RETARDER | | |
| 35 | SM5071 | DECAL, RETARD SPEED CONTROL | | |
| 36 | SM5057 | DECAL, BRAKE OIL PRESSURE | | |
| 37 | SM5078 | DECAL, FUEL | | |
| 38 | SM5063 | DECAL, ENGINE SHUTDOWN | | |
| 39 | SM5076 | DECAL, CHECK ENGINE | | |
| 40 | SM5101 | DECAL, RETARD AT CONTINUOUS LEVEL | | |
| 41 | SM5097 | DECAL, REDUCED PROPULSION SYSTEM | | |
| 42 | SM5102 | DECAL, NO PROPEL | | |
| 43 | SM5106 | DECAL, PROPEL SYSTEM REST | | |
| 44 | EK2766 | PLATE, FORMED | | |
| 45 | SM5478 | AIR FILTER RESTRICTOR GAUGE MODULE (1) | | |
| 46 | SM5854 | PLATE, MOUNTING | | |
| 47 | PC0389 | GAUGE, AIR RESTRICTOR | | |
| 48 | SM5853 | DECAL, LEXAN | | |
| 49 | WA3367 | NUT | | |
| 50 | SM5201 | SPEAKER | | |
| 51 | MM0207 | LOCKWASHER - M6 | | |
| 52 | MM0176 | NUT - M6 X 1.00 | | |
| 53 | MM0206 | LOCKWASHER - M5 (INTERNAL TOOTH) | | |
| 54 | MM0373 | NUT - M5 X .80 | | |
| 55 | 31127R1 | CAPSCREW - M6 X 12 | | |
| 56 | PC0251 | SONALARM, SIGNAL | | |
| 57 | SM5122 | BRACKET | | |
| 58 | PB4767 | RELAY | | |
| 59 | PB9050 | HOSE, VACUUM | | |
| 60 | PB9051 | FITTING, SINGLE BARB W/FILTER | | |
| 61 | PB9056 | FITTING, COMPRESSION - FEMALE | | |
| 62 | PC0257 | MODULE, DIMMER CONTROL | | |
| 63 | EK4227 | DASH, OVERHEAD | | |
| 64 | SM2682 | CAPSCREW (COUNTER SUNK) | | |
| NS|71 | | NOTE: NS = NOT SHOWN | | |
| NS|72 | TA0602 | FITTING, NYLON | | |
| NS|73 | TA0603 | FITTING, NYLON | | |
| NS|74 | TM4777 | TUBE, NYLON | | |
| NS|75 | | NOTE: (1) MODULE IS NOT SERVICED AS AN ASSEMBLY. | | |
| NS|76 | | ORDER INDIVIDUAL COMPONENT PARTS. | | |
