| Item | Part No. | Part Name | Qty | Serial No. |

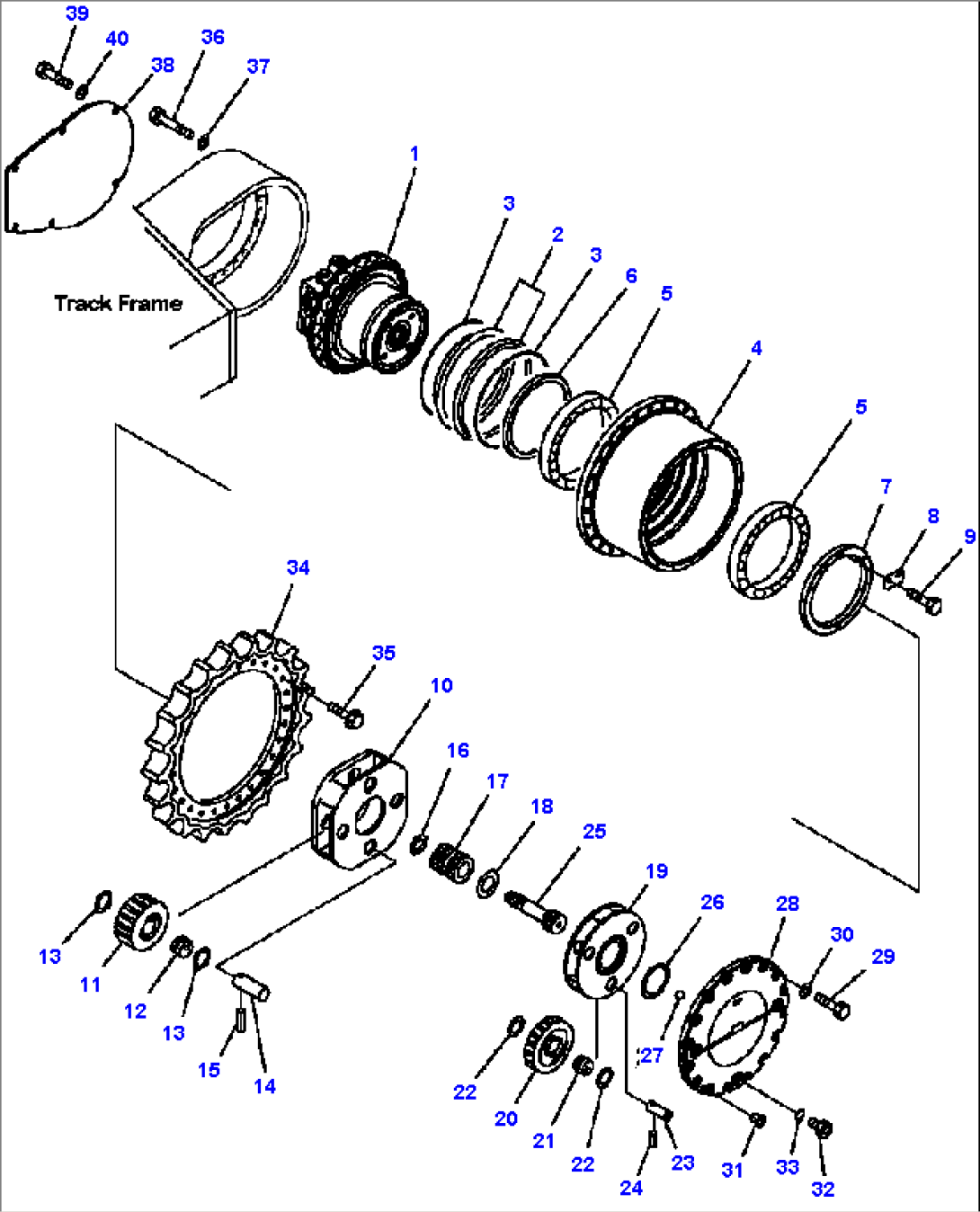

| 208-27-00411 | FINAL DRIVE L.H. ASSEMBLY | |||
| 1 | MOTOR ASSEMBLY (SEE FIG. P1220-01A0) | |||
| 208-27-00211 | FLOATING SEAL ASSEMBLY | |||
| 2 | (NSS) | RING | ||
| 3 | (NSS) | O-RING | ||
| 4 | 208-27-41121 | CASE | ||
| 5 | 208-27-71210 | BEARING | ||
| 6 | 208-27-71310 | COLLAR | ||
| 7 | 208-27-71270 | LOCK | ||
| 8 | 208-27-71260 | LOCK | ||
| 9 | 01010-81020 | BOLT | ||
| 10 | 208-27-71170 | CARRIER | ||
| 11 | 208-27-71140 | GEAR | ||
| 12 | 208-27-71230 | BEARING | ||
| 13 | 21M-27-11260 | THRUST WASHER | ||
| 14 | 208-27-71250 | PIN | ||
| 15 | 20Y-27-21290 | PIN | ||
| 16 | 207-27-52270 | SPACER | ||
| 17 | 208-27-71130 | GEAR | ||
| 18 | 208-27-71290 | SPACER | ||
| 19 | 208-27-71160 | CARRIER | ||
| 20 | 208-27-71120 | GEAR | ||
| 21 | 208-27-71220 | BEARING | ||
| 22 | 20Y-27-21250 | WASHER | ||
| 23 | 21M-27-11240 | PIN | ||
| 24 | 20Y-27-21280 | PIN | ||
| 25 | 208-27-71112 | SHAFT | ||
| 26 | 20Y-27-11250 | SPACER | ||
| 27 | 04260-01905 | BALL | ||
| 28 | 208-27-71651 | COVER | ||
| N/I | 208-27-71660 | O-RING | ||
| 29 | 01010-81235 | BOLT | ||
| 30 | 01643-31232 | WASHER | ||
| 31 | 07049-01215 | PLUG | ||
| 32 | 20Y-27-31190 | PLUG | ||
| 33 | 07002-12434 | O-RING | ||
| 34 | 208-27-61210 | SPROCKET | ||
| 35 | 207-27-51311 | BOLT | ||
| 36 | 01011-82000 | BOLT | ||
| 37 | 01643-32060 | WASHER | ||
| 38 | 208-30-71241 | COVER | ||
| 39 | 01010-81640 | BOLT | ||
| 40 | 01643-31645 | WASHER |
