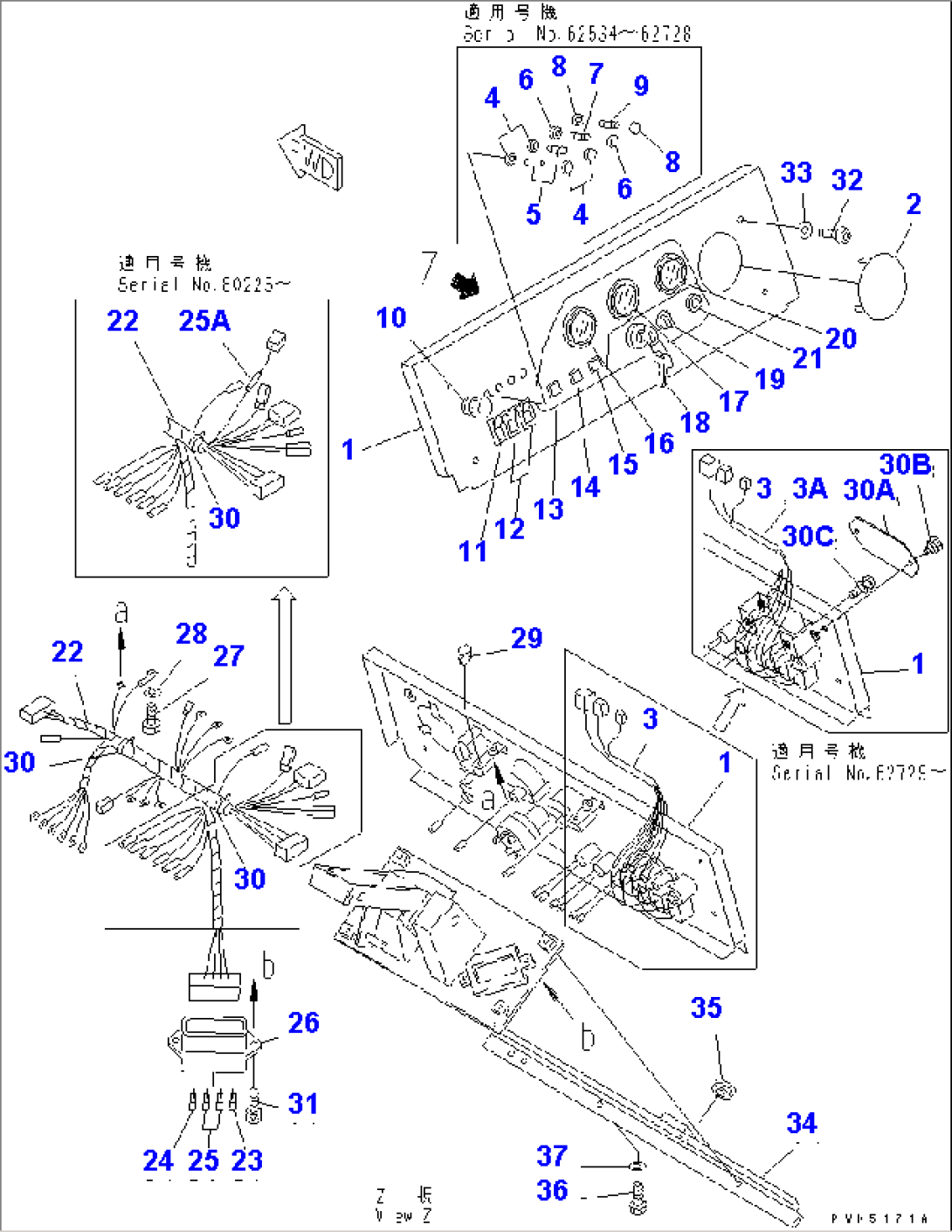

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 104-Y11-4381 | PANEL | 62729- | |
| 104-Y11-4380 | PANEL | 62534-62728 | ||
| 2 | 114-X11-1810 | CAP | 62454- | |
| 3 | 104-Y11-4153 | WIRE ASS'Y | 62729- | |
| 104-Y11-4152 | WIRE ASS'Y | 62671-62728 | ||
| 104-Y11-4151 | WIRE ASS'Y | 62534-62670 | ||
| 3A | 08041-02000 | FUSE¤ 20A | 62729- | |
| 4 | 104-Y11-4451 | FUSE ASS'Y,20A | 62671-62728 | |
| 104-Y11-4450 | FUSE ASS'Y,15A | 62534-62670 | ||
| 5 | 08040-02000 | FUSE¤ 20A | 62671-62728 | |
| 08040-01500 | FUSE¤ 15A | 62534-62670 | ||
| 6 | 104-Y11-4460 | FUSE ASS'Y,20A | 62534-62728 | |
| 7 | 08040-02000 | FUSE¤ 20A | 62534-62728 | |
| 8 | 104-Y11-4470 | FUSE ASS'Y,20A | 62534-62728 | |
| 9 | 08040-02000 | FUSE¤ 20A | 62534-62728 | |
| 10 | 08913-01201 | LIGHTER | 62454- | |
| 11 | 14X-911-3710 | SWITCH,REAR LAMP | 62454- | |
| 12 | 20T-06-71410 | SWITCH,WIPER | 62454- | |
| 13 | 104-06-41160 | LAMP¤ INDICATOR,CHARGE | 62454- | |
| 08111-01230 | BULB¤ 4W | 62454- | ||
| 14 | 104-06-41150 | LAMP¤ INDICATOR,ENGINE OIL PRESSURE | 62454- | |
| 08111-01230 | BULB¤ 4W | 62454- | ||
| 15 | 104-06-41170 | LAMP¤ INDICATOR,AIR CLEANER DUST | 62454- | |
| 08111-01230 | BULB¤ 4W | 62454- | ||
| 16 | 104-06-41190 | GAUGE,WATER TEMPERATURE | 62454- | |
| 08111-01230 | BULB¤ 4W | 62454- | ||
| 17 | 104-06-41180 | GAUGE,FUEL | 62454- | |
| 08111-01230 | BULB¤ 4W | 62454- | ||
| 18 | 20S-06-31130 | STARTING SWITCH,STARTING | 62729- | |
| \0\08086-20000 | SWITCH,STARTING | 62454-62728 | ||
| 19 | 114-06-42310 | SWITCH,LAMP | 62454- | |
| 20 | 08687-21203 | METER,SERVICE | 62454- | |
| 21 | 104-06-41210 | SIGNAL,HEATER | 62454- | |
| 22 | 104-06-41262 | WIRE ASS'Y | 62790- | |
| 104-06-41261 | WIRE ASS'Y | 62534-62789 | ||
| 23 | 08041-03000 | FUSE¤ 30A | 62454- | |
| 24 | 08041-02000 | FUSE¤ 20A | 62454- | |
| 25 | 08041-01000 | FUSE¤ 10A | 62454- | |
| 25A | 08040-01000 | FUSE¤ 10A | 62682- | |
| 26 | 20T-06-71560 | FUSE BOX | 62454- | |
| 27 | 01010-81020 | BOLT | 62454- | |
| 28 | 01602-21030 | WASHER,SPRING | 62454- | |
| 29 | 203-06-56510 | CLIP | 62454- | |
| 30 | 08034-00310 | BAND | 62454- | |
| 30A | 104-Y11-3480 | COVER | 62729- | |
| 30B | 114-X11-2790 | KNOB | 62729- | |
| 30C | 01023-10516 | SCREW | 62729- | |
| 31 | 01252-40825 | BOLT | 62454- | |
| 32 | 23S-06-14990 | SCREW | 62454- | |
| 33 | 362-06-21140 | WASHER | 62454- | |
| 34 | 114-X11-1770 | BRACKET | 62454- | |
| 35 | 08037-01610 | GROMMET | 62454- | |
| 36 | 01010-81035 | BOLT | 62454- | |
| 37 | 01643-31032 | WASHER | 62454- |
