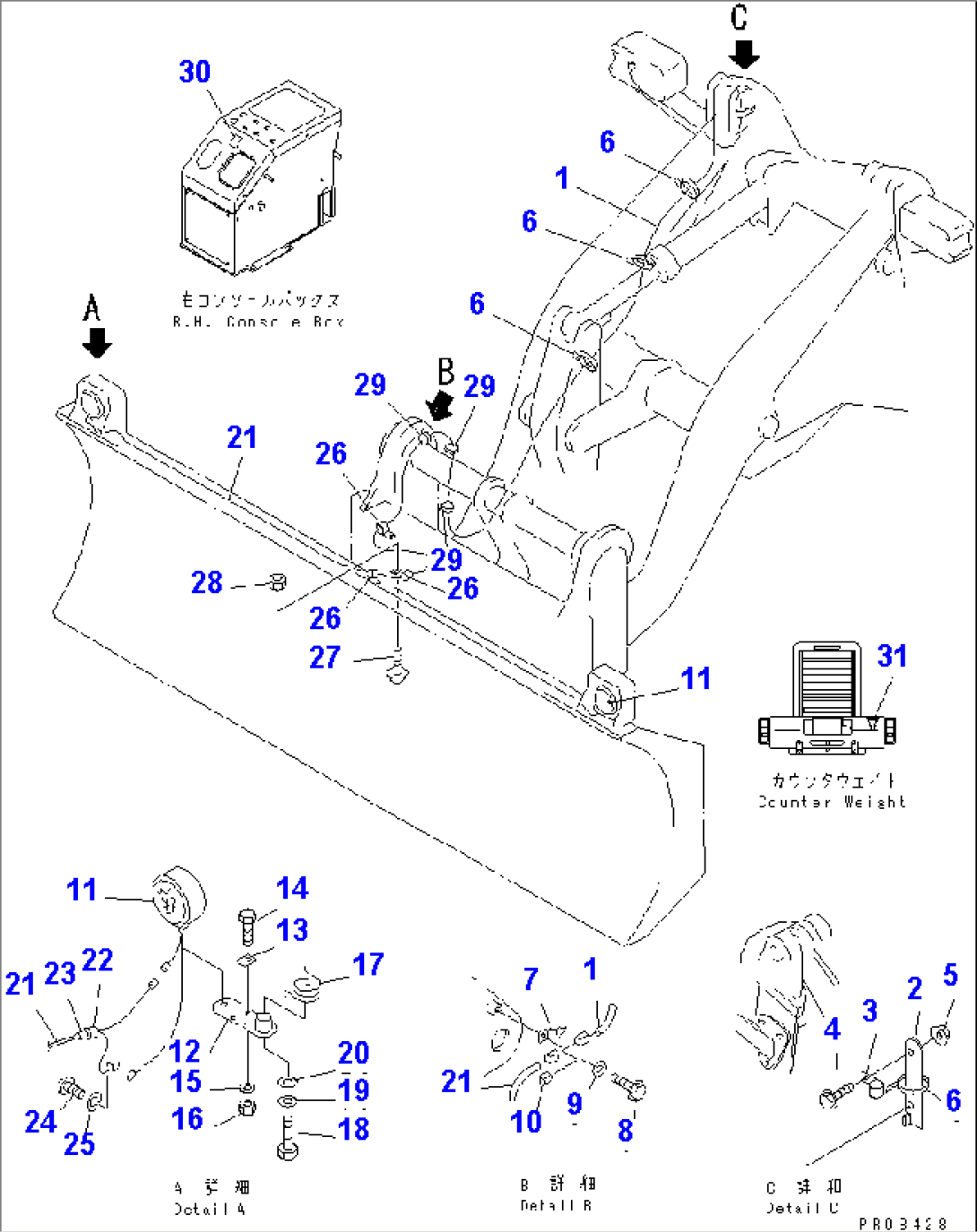

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-914-2921 | WIRING HARNESS | 12030- | |
| 1 | 415-914-2920 | WIRING HARNESS | 11527-12029 | |
| 1 | 415-914-2850 | WIRING HARNESS | 10001-11526 | |
| 2 | 415-904-2710 | PLATE | 10001- | |
| 3 | 08036-01414 | CLIP | 10001- | |
| 4 | 01435-01016 | BOLT | 10001- | |
| 5 | 01584-01008 | NUT | 10001- | |
| 6 | 08034-20519 | BAND | 10001- | |
| 7 | 08053-01512 | CLIP | 10001- | |
| 8 | 01435-00612 | BOLT | 10001- | |
| 9 | 419-43-17760 | WASHER | 10001- | |
| 10 | 419-914-2310 | PLUG | 10001- | |
| 11 | 423-904-2612 | LAMP ASS'Y | 10001- | |
| 11 | 423-904-2620 | LENS,FRONT, ORANGE | 10001- | |
| 11 | 423-904-2631 | LENS,REAR, YELLOW | 10001- | |
| 11 | 423-904-2640 | SCREW | 10001- | |
| 11 | 423-904-2660 | BULB, 3W | 10001- | |
| 12 | 423-904-2670 | SUPPORT,T=6 | 10001- | |
| 13 | 423-904-1680 | RUBBER | 10001- | |
| 14 | 01010-81040 | BOLT | 10001- | |
| 15 | 01643-31032 | WASHER | 10001- | |
| 16 | 01596-01009 | NUT | 10001- | |
| 17 | 423-904-1710 | SPRING,L.H. | 10001- | |
| 17 | 423-904-1720 | SPRING,R.H. | 10001- | |
| 18 | 01010-81225 | BOLT | 10001- | |
| 19 | 01643-31232 | WASHER | 10001- | |
| 20 | 416-54-13110 | WASHER | 10001- | |
| 21 | 417-914-2310 | WIRING HARNESS | 10001- | |
| 22 | 08013-01007 | CAP | 10001- | |
| 23 | 08019-01014 | CLIP | 10001- | |
| 24 | 01220-40408 | SCREW | 10001- | |
| 25 | 01601-20410 | WASHER,SPRING | 10001- | |
| 26 | 08036-01414 | CLIP | 10001- | |
| 27 | 01435-01016 | BOLT | 10001- | |
| 28 | 01584-01008 | NUT | 10001- | |
| 29 | 08034-20519 | BAND | 10001- | |
| 30 | 423-904-1820 | PLATE, OPERATING | 10001- | |
| 31 | 423-904-1810 | PLATE | 10001- |
