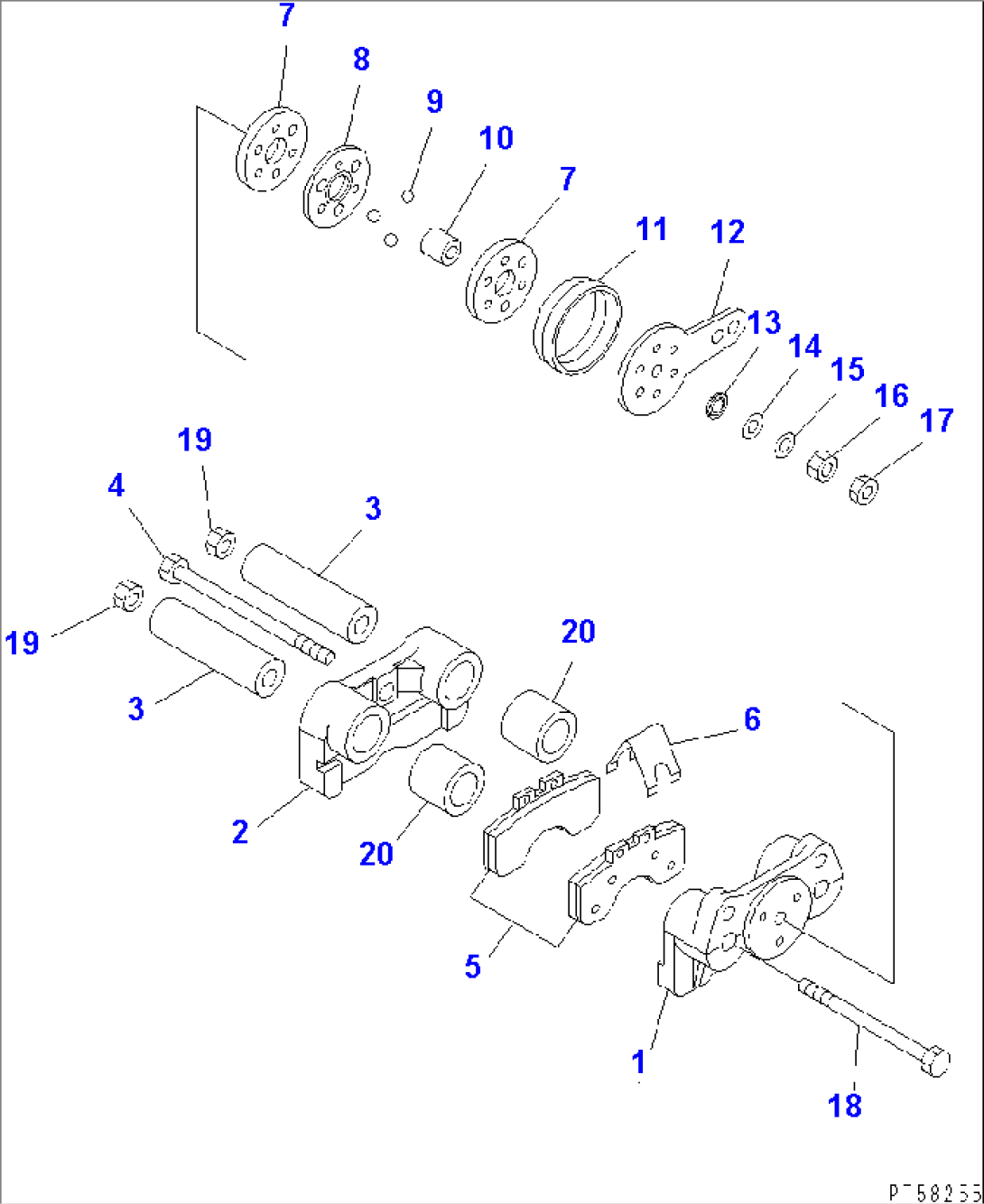

| Item | Part No. | Part Name | Qty | Serial No. |
| 273-32-61121 | BRAKE ASS'Y,PARKING | 21001- | ||
| 1 | \6\ | PLATE,FRONT | 21001- | |
| 2 | \6\ | PLATE,REAR | 21001- | |
| 3 | 273-32-61431 | SLEEVE | 21001- | |
| 4 | 273-32-61440 | BOLT | 21001- | |
| 5 | \6\ | PAD KIT (KIT) | 21001- | |
| 6 | \6\ | SPRING (KIT) | 21001- | |
| 7 | 273-32-61470 | CAM | 21001- | |
| 8 | 273-32-61480 | RETAINER | 21001- | |
| 9 | 273-32-61491 | BALL | 21001- | |
| 10 | \6\ | SEAL (KIT) | 21001- | |
| 11 | \6\ | BOOT (KIT) | 21001- | |
| 12 | 273-32-61530 | LEVER | 21001- | |
| 13 | \6\ | BEARING (KIT) | 21001- | |
| 14 | 273-32-61550 | WASHER | 21001- | |
| 15 | 273-32-61560 | WASHER | 21001- | |
| 16 | 273-32-61570 | NUT,ADJUSTER | 21001- | |
| 17 | 273-32-61580 | NUT | 21001- | |
| 18 | 273-32-61590 | BOLT | 21001- | |
| 19 | 273-32-61610 | NUT | 21001- | |
| 20 | \6\ | BOOT | 21001- | |
| SERVICE KIT | ||||
| KIT | 273-32-02211 | REPAIR KIT,PARKING BRAKE | 21001- |
