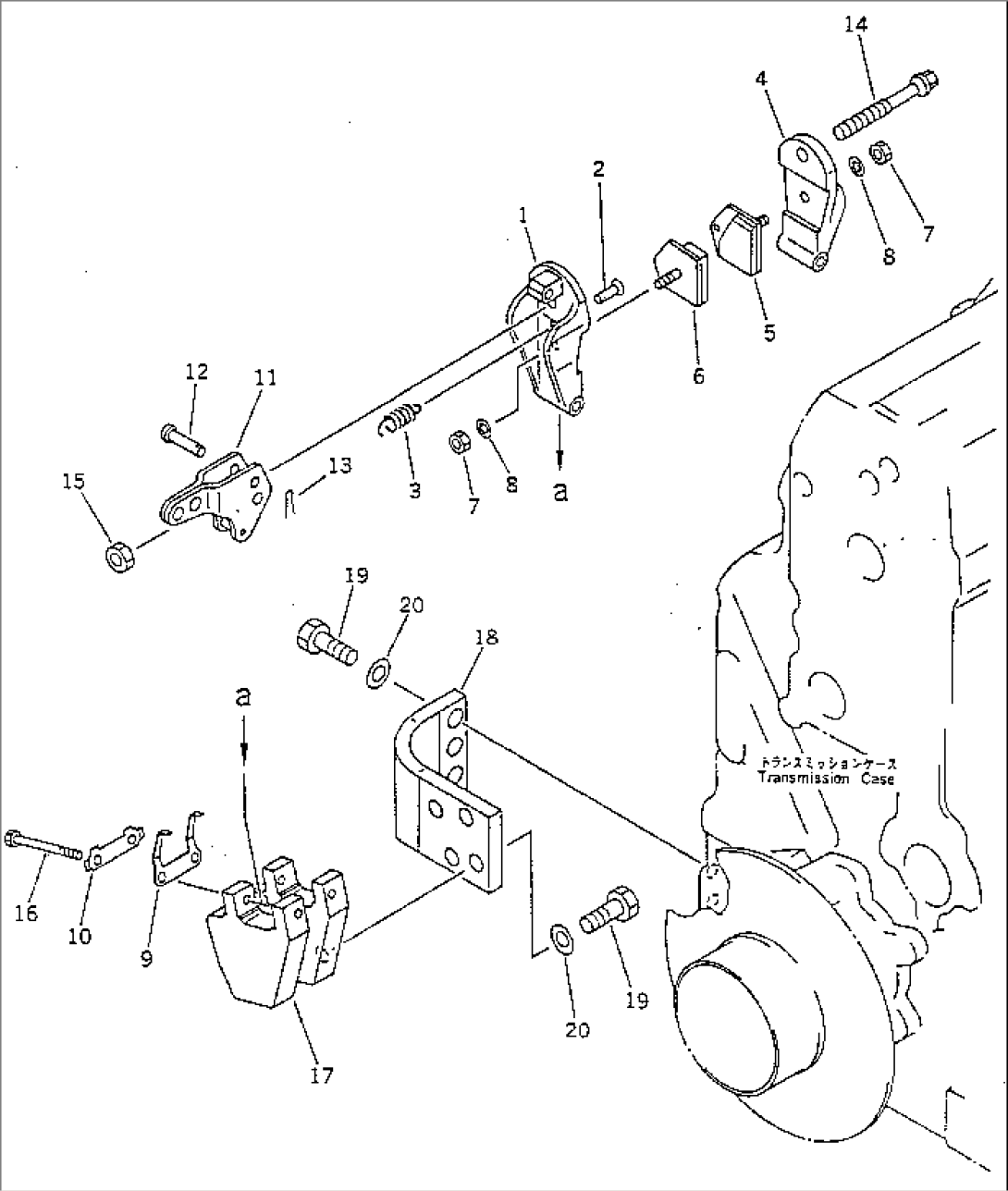

| Item | Part No. | Part Name | Qty | Serial No. |
| 42A-43-15100 | CALIPER ASS'Y | 10001- | ||
| 1 | \6\ | CARRIER,INNER | 10001- | |
| 2 | 423-43-15770 | ANCHOR | 10001- | |
| 3 | 423-43-15760 | SPRING | 10001- | |
| 4 | \6\ | CARRIER,OUTER | 10001- | |
| 42A-43-05110 | BRAKE PAD ASS'Y | 10001- | ||
| 5 | \6\ | PAD,INNER | 10001- | |
| 6 | \6\ | PAD,OUTER | 10001- | |
| 7 | \6\ | NUT | 10001- | |
| 8 | \6\ | WASHER,LOCK | 10001- | |
| 9 | \6\ | PLATE | 10001- | |
| 10 | \6\ | WASHER | 10001- | |
| 11 | 423-43-15720 | LEVER ASS'Y | 10001- | |
| 12 | 423-43-15750 | PIN | 10001- | |
| 13 | 04050-01610 | PIN,COTTER | 10001- | |
| 14 | 415-43-15730 | BOLT,ADJUST | 10001- | |
| 15 | 423-43-15740 | NUT | 10001- | |
| 16 | 415-43-15710 | BOLT | 10001- | |
| 17 | 42A-22-15620 | BRACKET | 10001- | |
| 18 | 42A-22-15612 | SUPPORT | 10001- | |
| 19 | 01010-31235 | BOLT | 10001- | |
| 20 | 01643-31232 | WASHER | 10001- |
