| Item | Part No. | Part Name | Qty | Serial No. |
| (41E-22-10101) | AXLE ASS'Y,FRONT | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101 TO 3161. | ||||

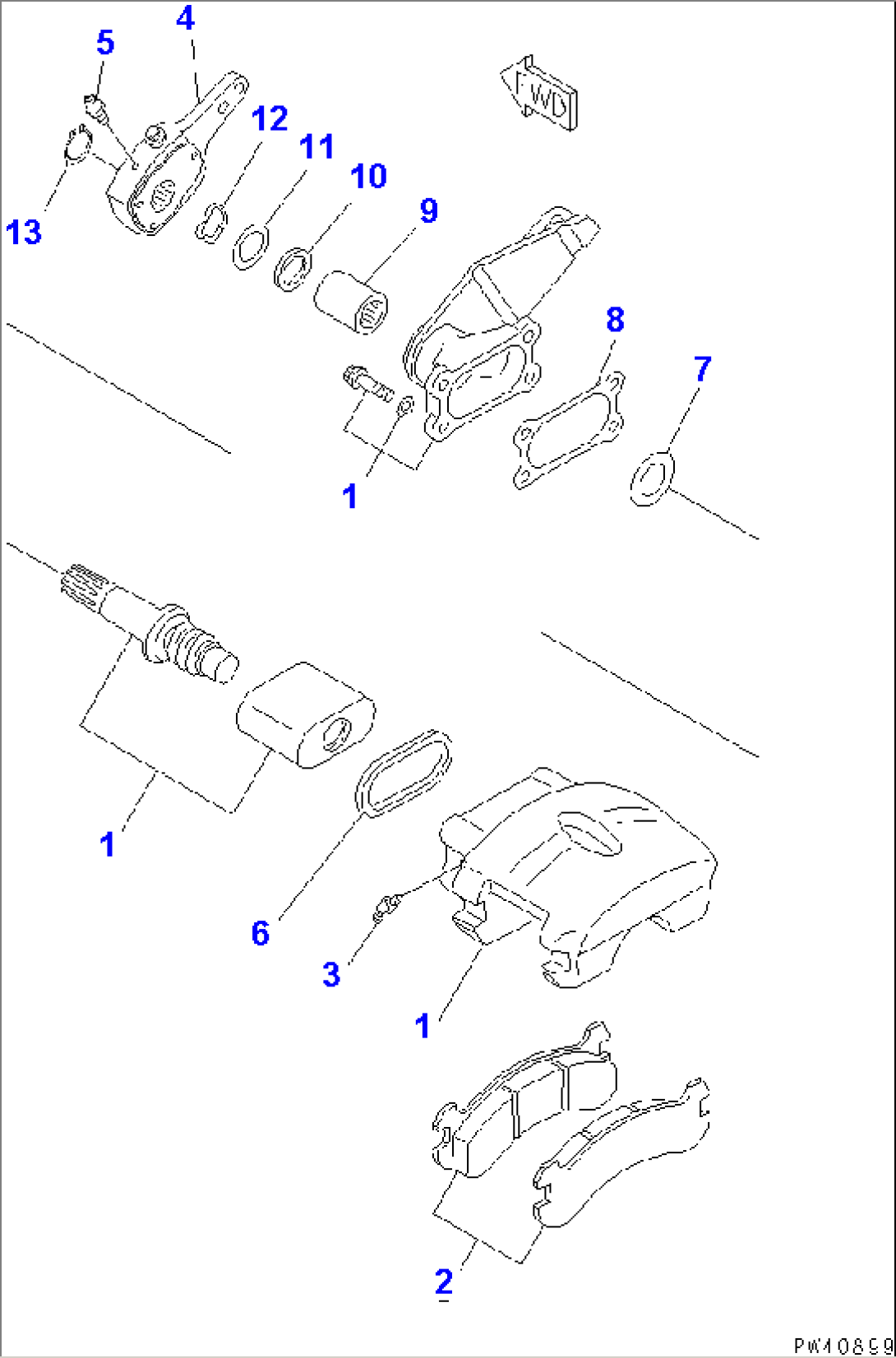

| (426-32-15090) | PARKING BRAKE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3141 TO 3161. | ||||
| 1 | 426-32-15191 | BRAKE PAD ASS'Y | 10001- | |
| 2 | 425-32-15120 | PAD | 10001- | |
| 3 | 425-32-15290 | FITTING,GREASE | 10001- | |
| 4 | 425-32-15610 | ADJUSTER,SLACK | 10001- | |
| 5 | 07020-00675 | FITTING,GREASE | 10001- | |
| 426-32-15590 | SERVICE KIT | 10001- | ||
| 6 | \6\ | SEAL | 10001- | |
| 7 | \6\ | BEARING | 10001- | |
| 8 | \6\ | GASKET | 10001- | |
| 9 | \6\ | BEARING | 10001- | |
| 10 | \6\ | PACKING | 10001- | |
| 11 | \6\ | WASHER | 10001- | |
| 12 | \6\ | WASHER | 10001- | |
| 13 | \6\ | RING | 10001- |
