| Item | Part No. | Part Name | Qty | Serial No. |
| (427-22-10001) | FRONT AXLE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101 TO 3147. | ||||

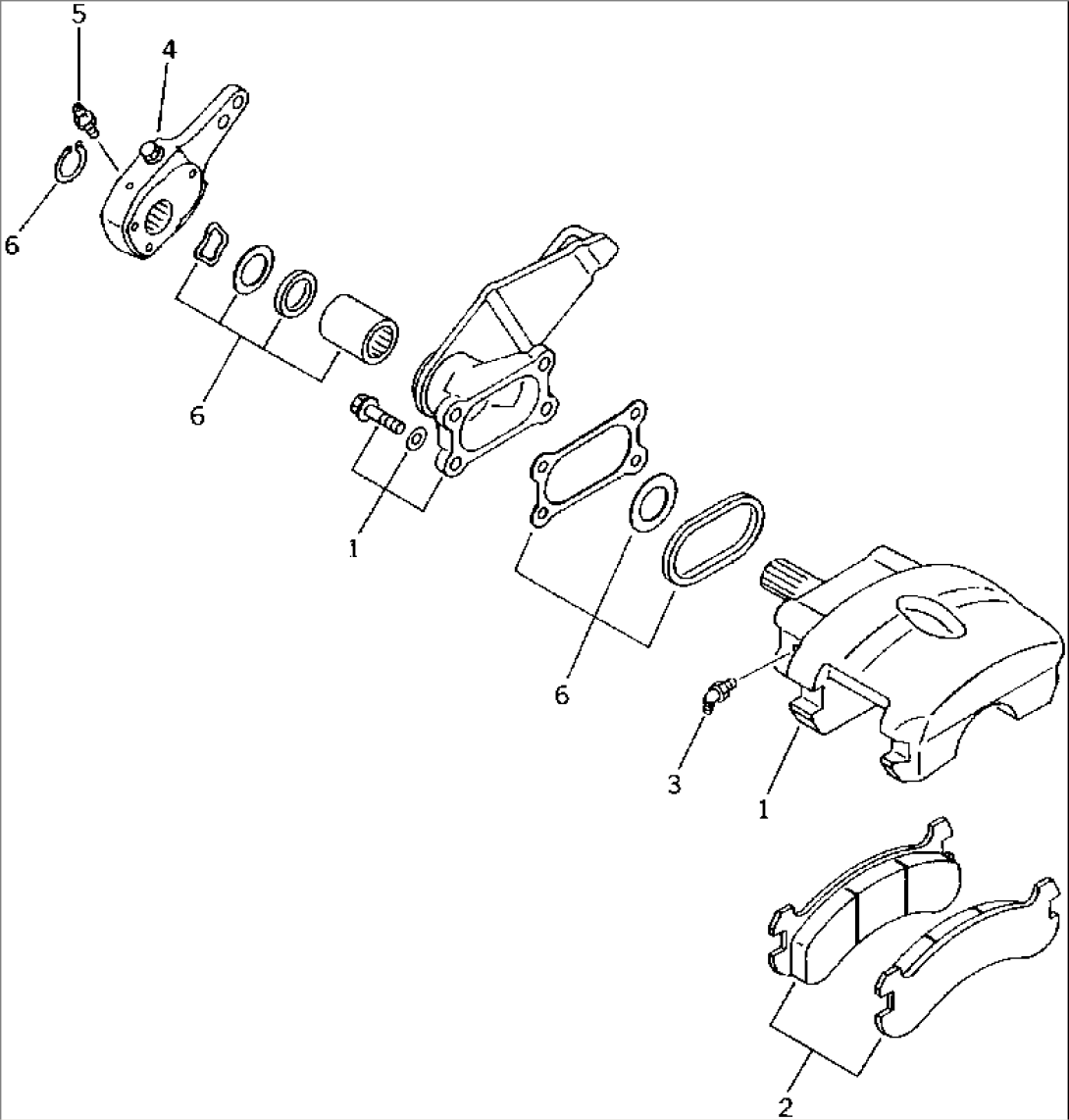

| (427-32-15001) | BRAKE ASS'Y,PARKING | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3141 TO 3147. | ||||
| 1 | 427-32-15200 | BRAKE PAD ASS'Y | 10001- | |
| (\2\427-32-15100) | BRAKE PAD ASS'Y | (10001-10656) | ||
| 2 | 425-32-15120 | PAD | 10001- | |
| (\2\425-32-15110) | PAD | (10001-10656) | ||
| 3 | 425-32-15290 | FITTING,GREASE | 10001- | |
| 4 | 425-32-15610 | ADJUSTER,SLACK | 10001- | |
| 5 | 07020-00675 | FITTING,GREASE | 10001- | |
| 6 | 425-32-05010 | SERVICE KIT | 10001- |
