| Item | Part No. | Part Name | Qty | Serial No. |
| (427-22-10001) | FRONT AXLE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101 TO 3147. | ||||

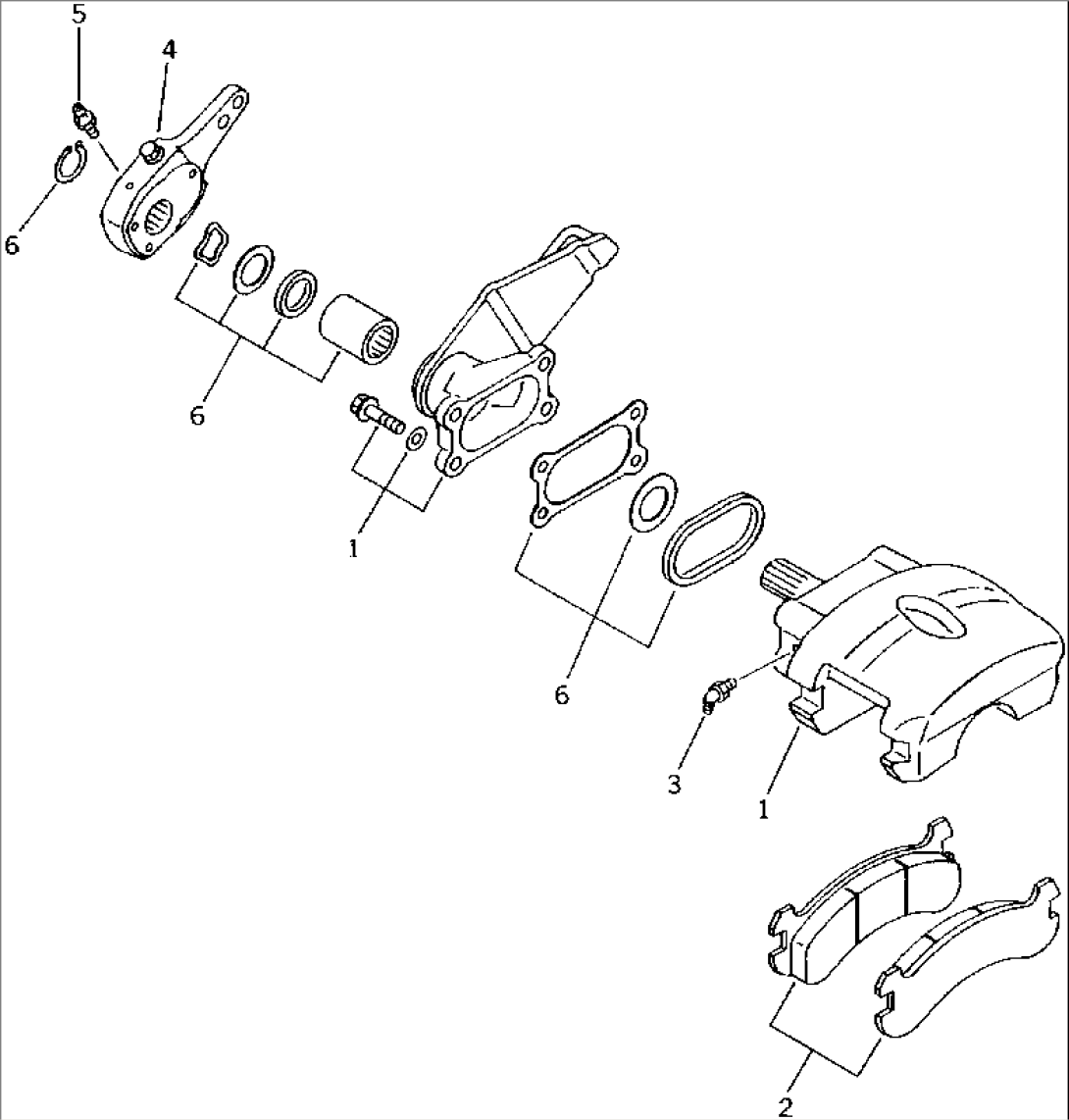

| (427-32-15001) | BRAKE ASS'Y,PARKING | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3141 TO 3147. | ||||
| 1 | 427-32-15200 | BRAKE PAD ASS'Y | 10001- | |
| 2 | 425-32-15120 | PAD | 10001- | |
| 3 | 425-32-15610 | ADJUSTER,SLACK | 10001- | |
| 4 | 425-32-15290 | FITTING,GREASE | 10001- | |
| 5 | 07020-00675 | FITTING,GREASE | 10001- | |
| 425-32-05010 | SERVICE KIT | 10001- | ||
| 6 | \6\ | WASHER | 10001- | |
| 7 | \6\ | GASKET | 10001- | |
| 8 | \6\ | RING | 10001- | |
| 9 | \6\ | BEARING | 10001- | |
| 10 | \6\ | BEARING | 10001- | |
| 11 | \6\ | SEAL | 10001- | |
| 12 | \6\ | PACKING | 10001- | |
| 13 | \6\ | WASHER | 10001- | |
| 14 | 425-32-15130 | PISTON ASS'Y | 10001- | |
| 15 | 425-32-15140 | SHAFT | 10001- |
