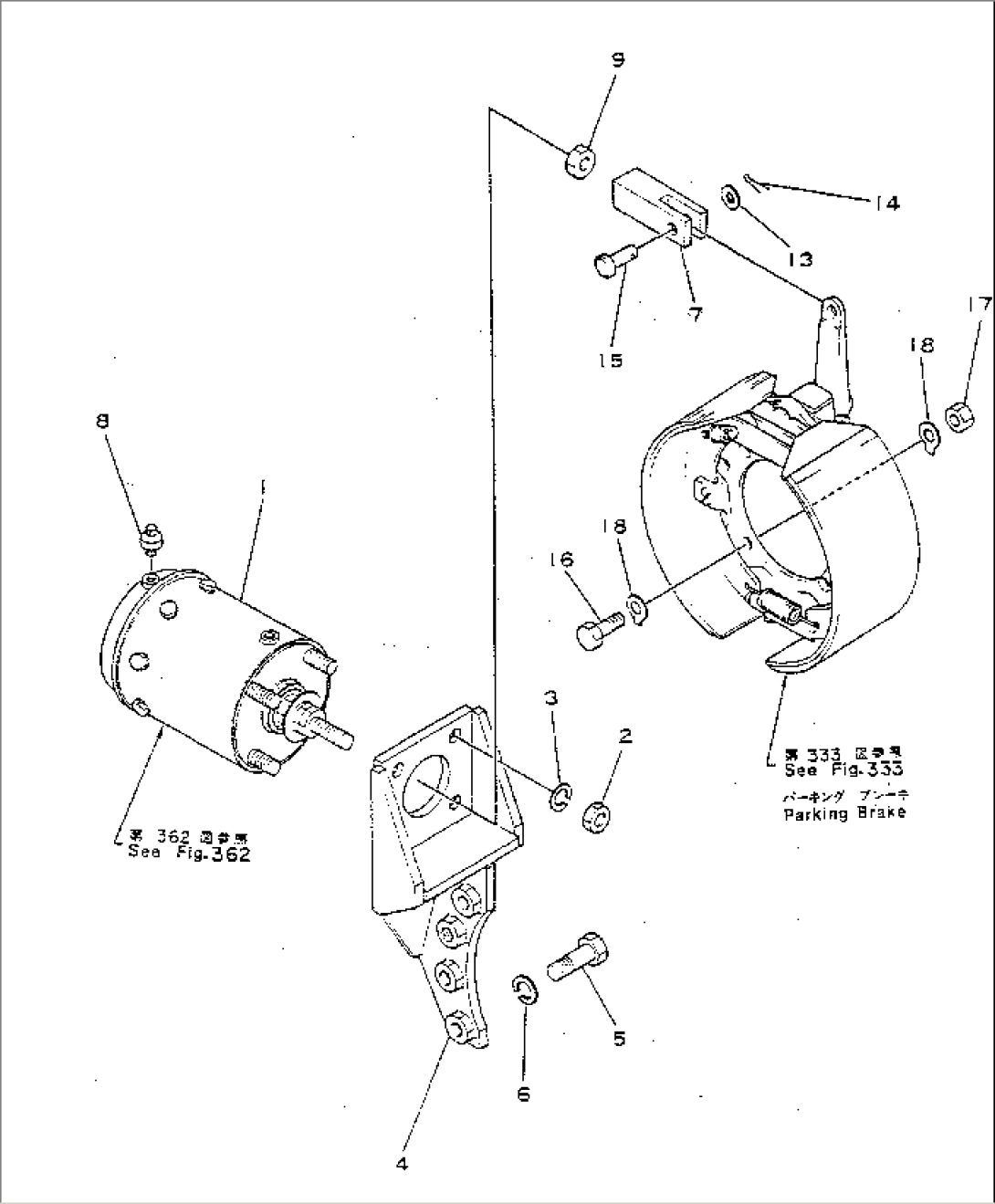

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (568-43-17200) | SPRING CYLINDER A. | 1002-1016 | |
| 2 | 01582-11613 | NUT | 1002-1016 | |
| 3 | 01602-21648 | WASHER | 1002-1016 | |
| 4 | 568-43-17211 | BRACKET | 1002-1016 | |
| 5 | 01010-51860 | BOLT | 1002-1016 | |
| 6 | 01602-21854 | WASHER | 1002-1016 | |
| 7 | 568-43-17530 | YOKE | 1002-1016 | |
| 8 | 07030-00252 | BREATHER | 1002-1016 | |
| 9 | 01583-11610 | NUT | 1002-1016 | |
| 13 | 01641-21423 | WASHER | 1002-1016 | |
| 14 | 04050-14022 | PIN | 1002-1016 | |
| 15 | 04205-11445 | PIN | 1002-1016 | |
| 16 | 01090-51445 | BOLT | 1002-1016 | |
| 17 | 01582-11411 | NUT | 1002-1016 | |
| 18 | 01650-21412 | WASHER | 1002-1016 |
