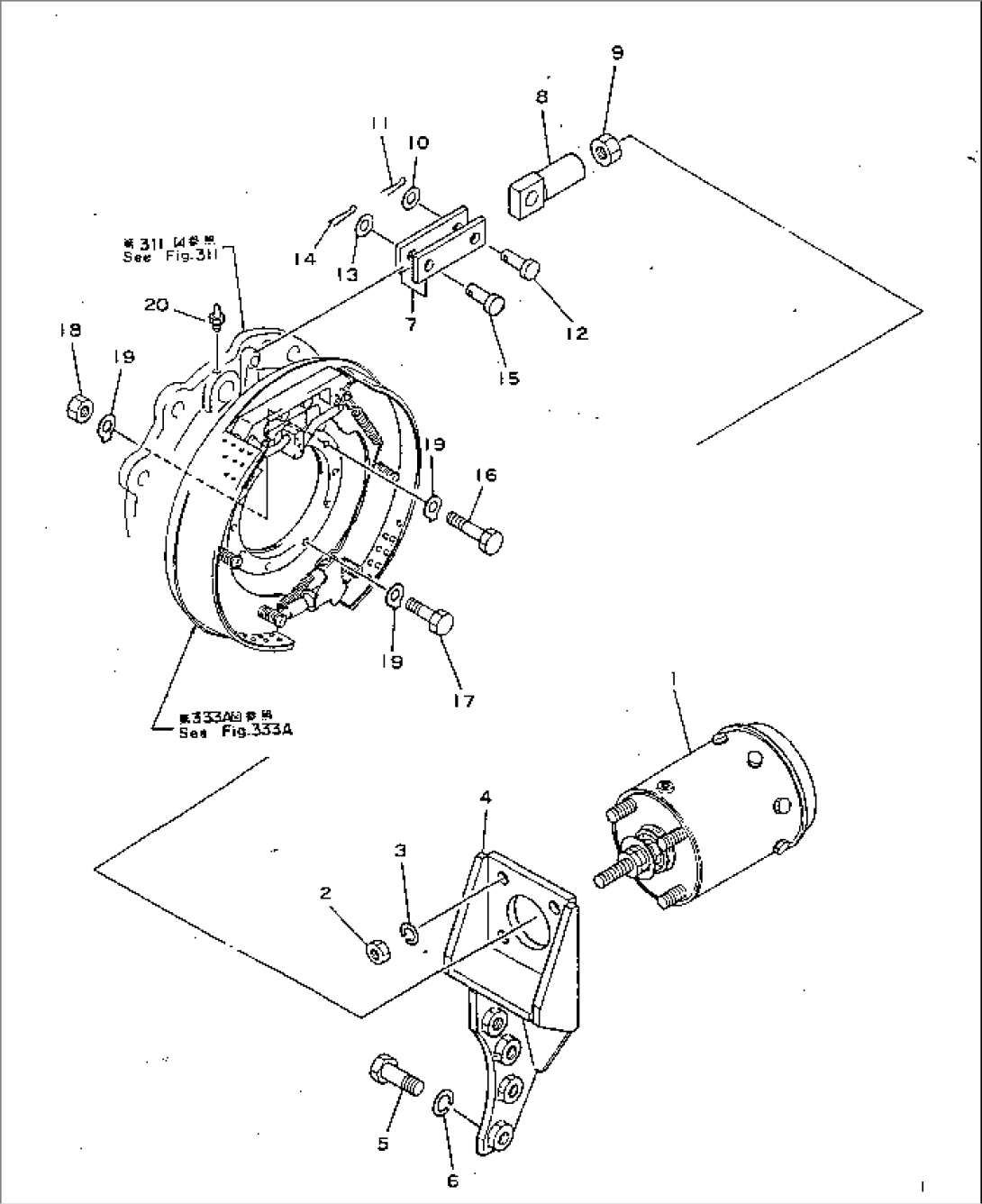

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-43-17640 | SPRING CYLINDER A. | 1017-1026 | |
| 2 | 01582-11613 | NUT | 1017-1026 | |
| 3 | 01602-21648 | WASHER | 1017-1026 | |
| 4 | 568-43-17211 | BRACKET | 1017-1026 | |
| 5 | 01010-51860 | BOLT | 1017-1026 | |
| 6 | 01602-21854 | WASHER | 1017-1026 | |
| 7 | 566-43-17630 | JOINT | 1017-1026 | |
| 8 | 04216-21675 | JOINT | 1017-1026 | |
| 9 | 01583-11610 | NUT | 1017-1026 | |
| 10 | 01641-21626 | WASHER | 1017-1026 | |
| 11 | 04050-14025 | PIN | 1017-1026 | |
| 12 | 04205-11645 | PIN | 1017-1026 | |
| 13 | 01641-21423 | WASHER | 1017-1026 | |
| 14 | 04050-14022 | PIN | 1017-1026 | |
| 15 | 04205-11445 | PIN | 1017-1026 | |
| 16 | 01090-51450 | BOLT | 1017-1026 | |
| 17 | 01090-51460 | BOLT | 1017-1026 | |
| 18 | 01582-11411 | NUT | 1017-1026 | |
| 19 | 01650-21412 | WASHER | 1017-1026 | |
| 20 | 07020-00000 | FITTING | 1017-1026 |
