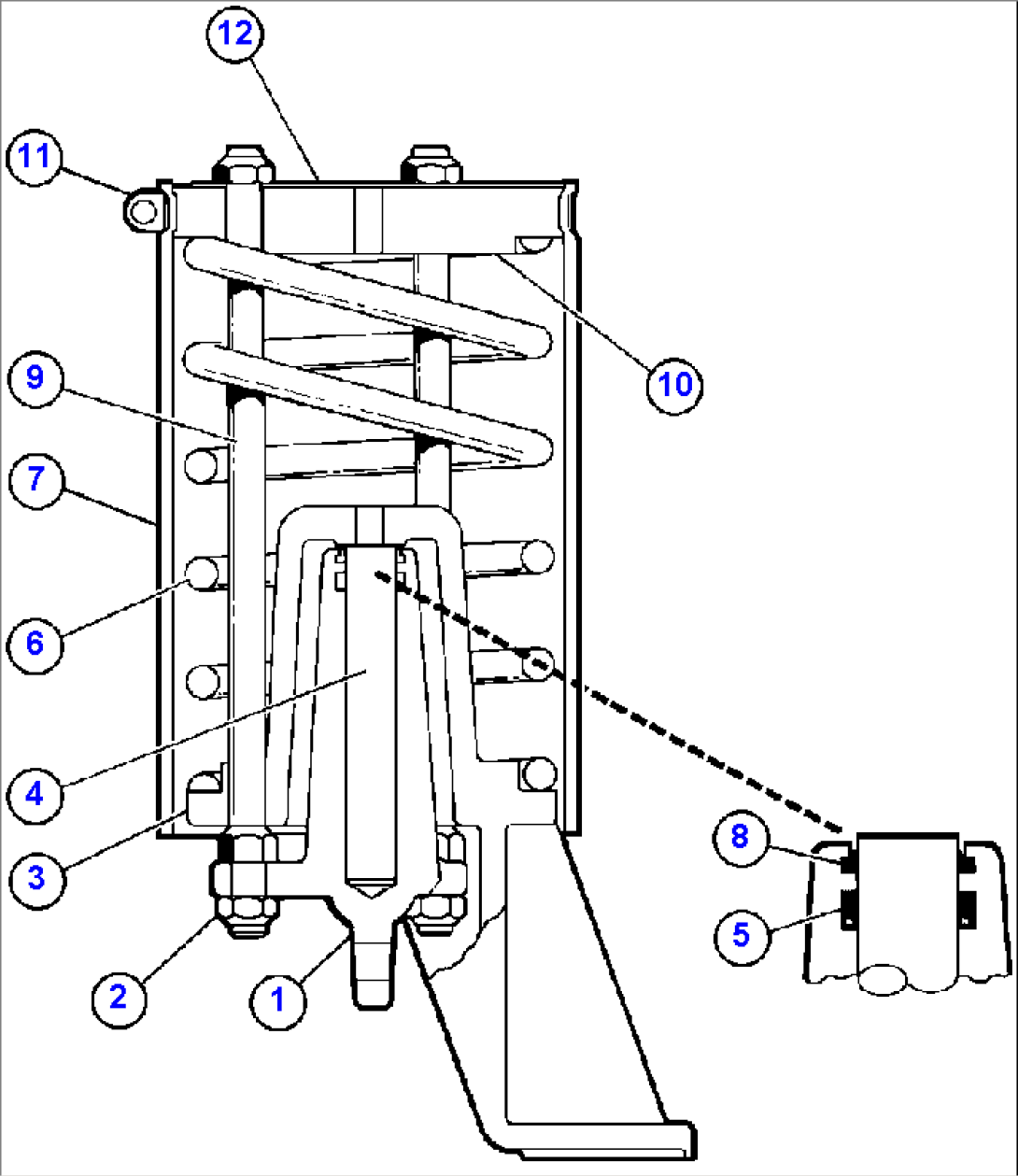

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TX8181 | ACTUATOR, PARKING BRAKE | ||
| 2 | DF3500 | LOCKNUT | ||
| 3 | TX8179 | SUPPORT, ACUATOR | ||
| 4 | TX8188 | PLUNGER | ||
| 5 | PB6329 | SEAL, ROD | ||
| 6 | PB6328 | SPRING, COMPRESSION | ||
| 7 | TX8187 | SHEET, RUBBER | ||
| 8 | PB6330 | WIPER, ROD | ||
| 9 | TX8191 | ROD, THREADED | ||
| 10 | TX8182 | PLATE, SPRING RETAINING | ||
| 11 | HE5115 | CLAMP | ||
| 12 | WA4990 | PLATE, WARNING |
