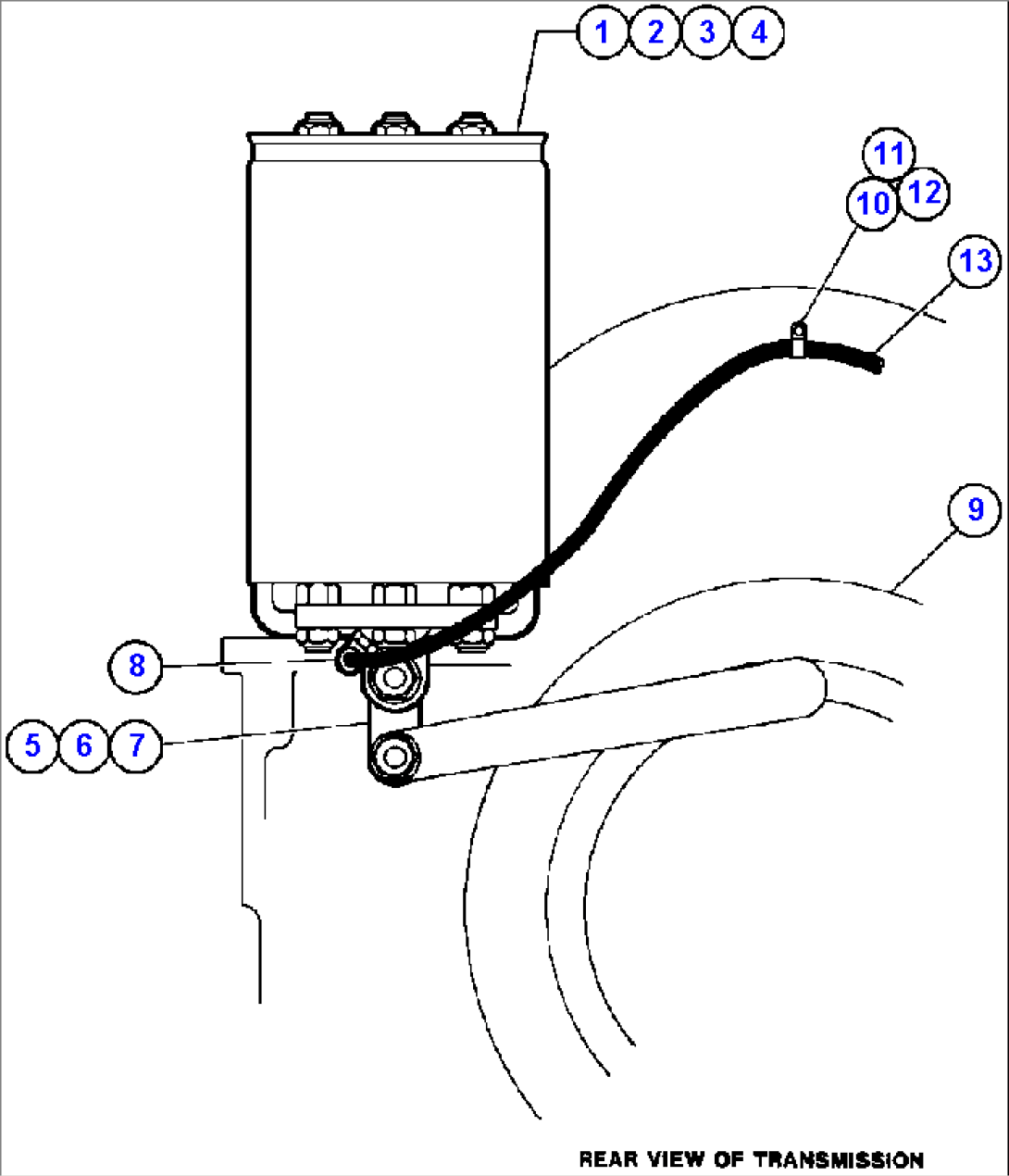

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TX8190 | PARKING BRAKE ACTUATOR ASSEMBLY (SEE INDEX) | ||
| 2 | C1605 | CAPSCREW - 3/8" - 16NC X 1 3/4" | ||
| 3 | C0312 | LOCKWASHER - 3/8" | ||
| 4 | C1521 | NUT - 3/8" - 16NC | ||
| 5 | TX8189 | LINK | ||
| 6 | WA0360 | FLAT WASHER - 1/2" | ||
| 7 | C2303 | PIN, COTTER | ||
| 8 | WB0499 | FITTING - 90 DEG | ||
| 9 | TH7890 | PARKING BRAKE | ||
| 10 | TZ7170 | STUD | ||
| 11 | TG9225 | LOCKNUT - 3/8" - 16NC | ||
| 12 | WA4649 | CLAMP | ||
| 13 | HA4814 | HOSE (TO AUXILIARY MANIFOLD) |
