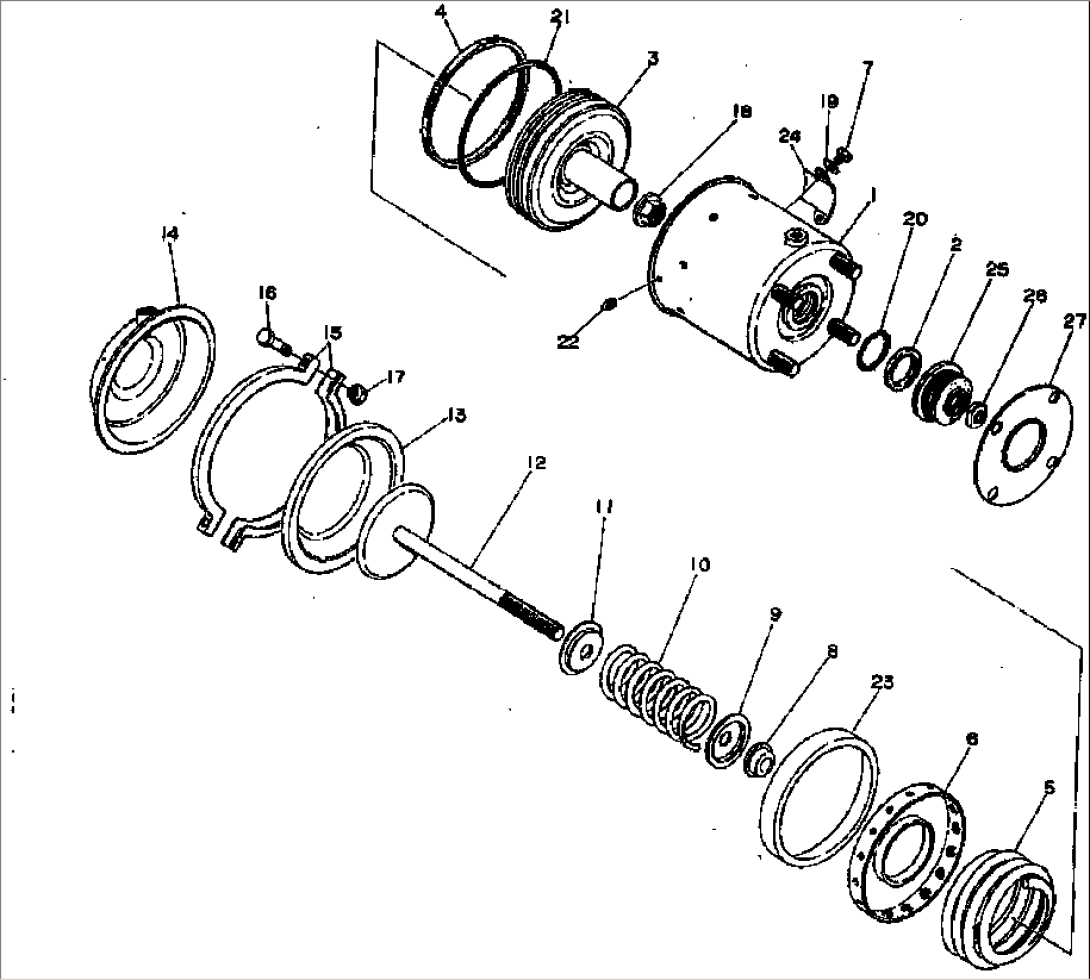

| Item | Part No. | Part Name | Qty | Serial No. |
| 568-43-17200 | SPRING CYLINDER A. | 1027- | ||
| 1 | 566-43-17650 | CYLINDER | 1027- | |
| 2 | 566-43-17660 | RING (KIT) | 1027- | |
| 3 | 566-43-17680 | PISTON | 1027- | |
| 4 | 566-43-17690 | RING (KIT) | 1027- | |
| 5 | 568-43-17770 | SPRING | 1027- | |
| 6 | 568-43-17780 | HOLDER | 1027- | |
| 7 | 566-43-17820 | BOLT | 1027- | |
| 8 | 568-43-17740 | SEAL | 1027- | |
| 9 | 568-43-17890 | RETAINER | 1027- | |
| 10 | 568-43-17910 | SPRING | 1027- | |
| 11 | 568-43-17790 | RETAINER | 1027- | |
| 12 | 568-43-17820 | ROD | 1027- | |
| 13 | 568-43-17830 | DIAPHRAGM | 1027- | |
| 14 | 568-43-17810 | PLATE | 1027- | |
| 15 | 568-43-17840 | BAND | 1027- | |
| 16 | 568-43-17850 | BOLT | 1027- | |
| 17 | 568-43-17860 | NUT | 1027- | |
| 18 | 568-43-17760 | NUT | 1027- | |
| 19 | 566-43-17850 | WASHER | 1027- | |
| 20 | 566-43-17670 | O-RING (KIT) | 1027- | |
| 21 | 566-43-17710 | O-RING (KIT) | 1027- | |
| 22 | 568-43-17710 | PLUG | 1027- | |
| 23 | 568-43-17720 | RING | 1027- | |
| 24 | 568-43-17730 | PLATE | 1027- | |
| 25 | 566-43-17830 | BOOT | 1027- | |
| 26 | 566-43-17840 | NUT | 1027- | |
| 27 | 566-43-17860 | RETAINER | 1027- |
