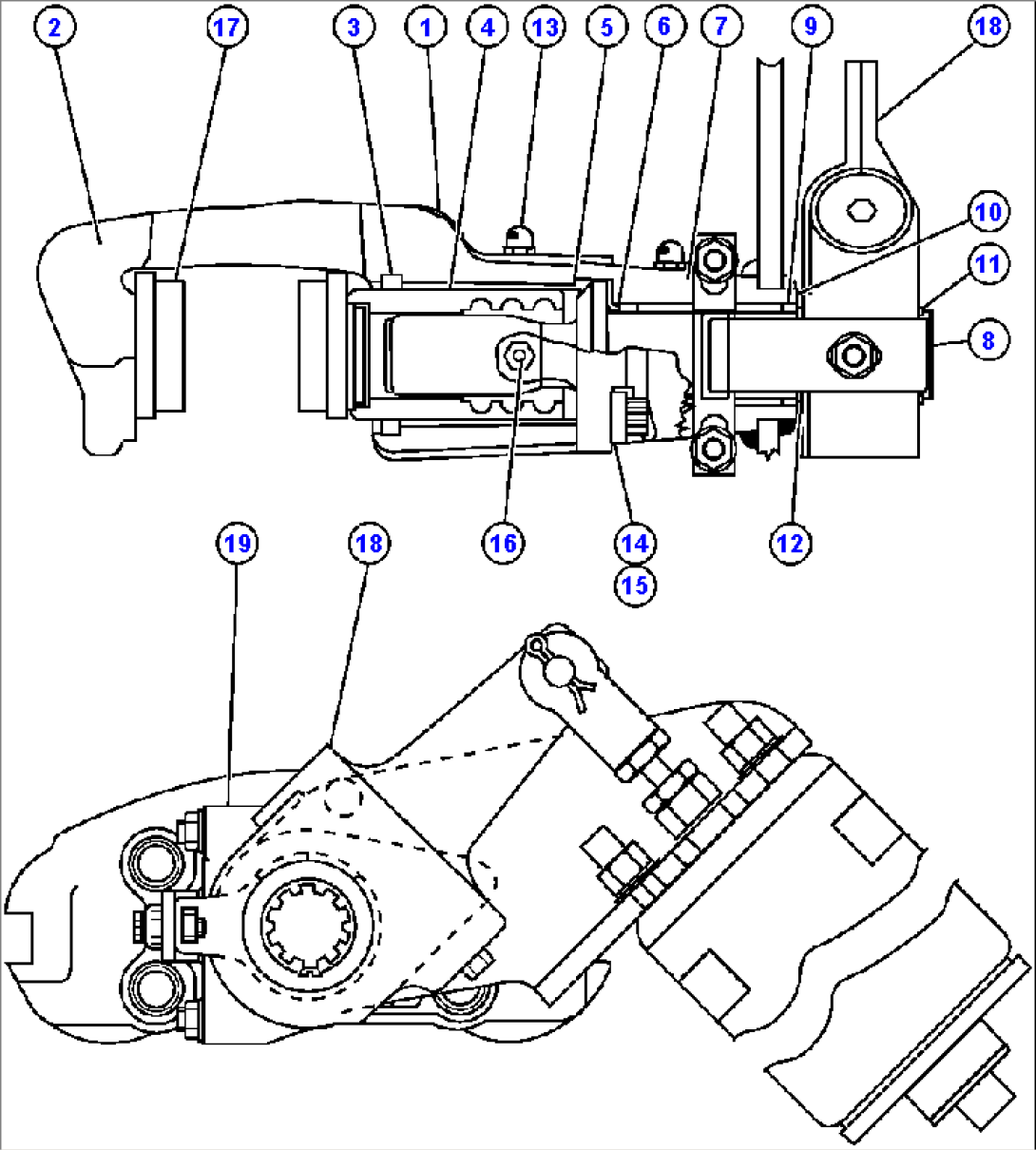

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF3288 | PARKING BRAKE ASSEMBLY | ||
| 2 | VE7696 | HOUSING | ||
| 3 | VE7697 | PACKING (1) | ||
| 4 | BF3291 | PISTON ASSEMBLY | ||
| 5 | GASKET (1)/(2) | |||
| 6 | BEARING, THRUST (1)/(2) | |||
| 7 | BF3292 | CAP ASSEMBLY | ||
| 8 | BF3293 | SHAFT, POWER | ||
| 9 | PACKING (1)/(2) | |||
| 10 | FLAT WASHER (1)/(2) | |||
| 11 | RING, RETAINER (1)/(2) | |||
| 12 | WASHER (1)/(2) | |||
| 13 | BF3294 | FITTING, GREASE (1) | ||
| 14 | FLAT WASHER (1)/(2) | |||
| 15 | CAPSCREW (1)/(2) | |||
| 16 | FITTING, PRESSURE RELIEF (1)/(2) | |||
| 17 | 561-34-61110 | PAD | ||
| 18 | BF3289 | ADJUSTER, SLACK | ||
| 19 | BF3290 | BRACKET ASSEMBLY | ||
| NS|20 | BF3295 | NOTE: (1) INCLUDED IN BF3295 SERVICE KIT. | ||
| NS|21 | (2) NOT SERVICED SEPARATELY. |
