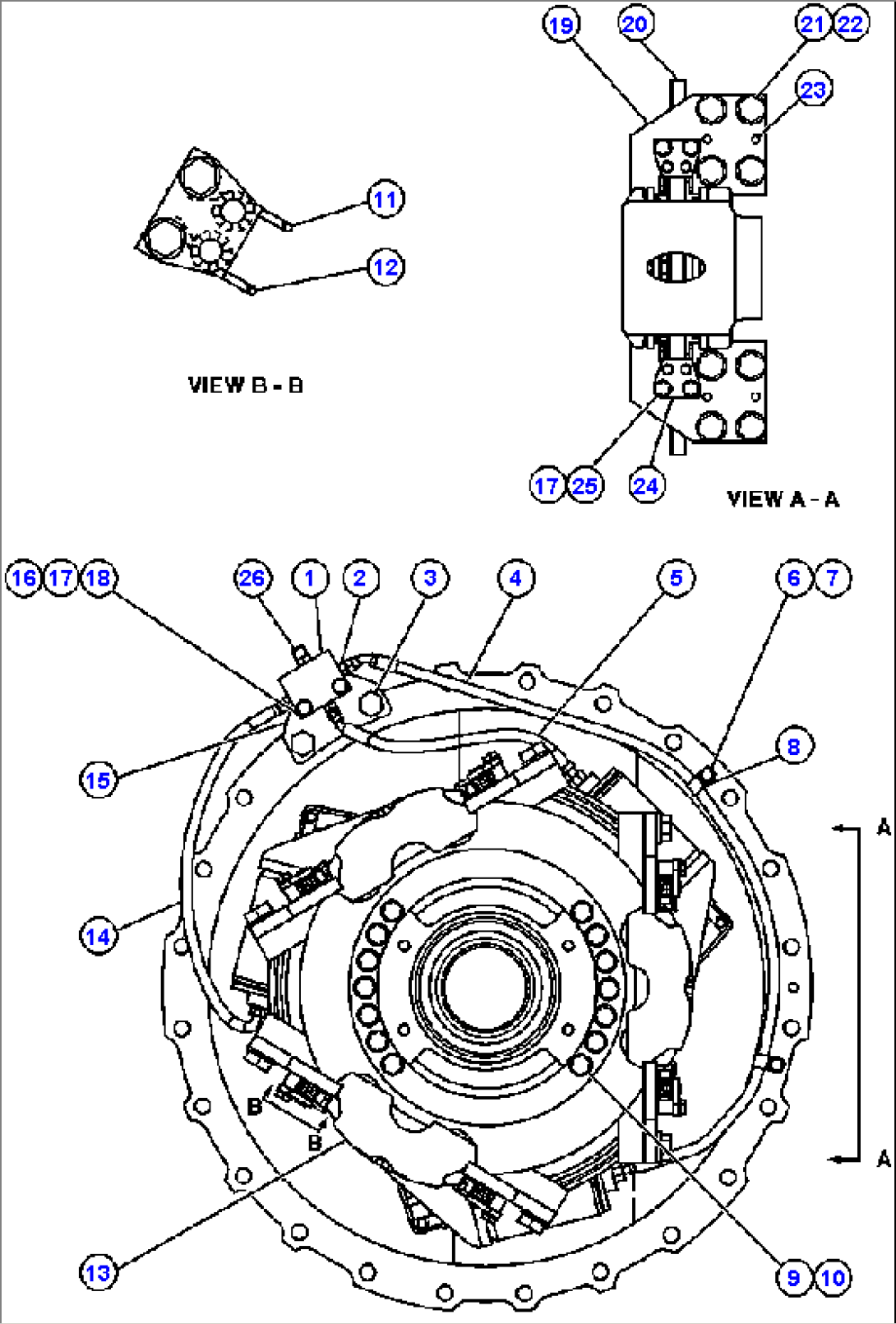

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EF4145 | BLOCK, JUNCTION | ||
| 2 | WB0581 | FITTING, O-RING | ||
| 3 | 01010-62475 | BOLT | ||
| 4 | HA7268 | HOSE | ||
| 5 | HA7269 | HOSE | ||
| 6 | 01010-31020 | BOLT | ||
| 7 | 01602-21030 | WASHER | ||
| 8 | WA4649 | CLAMP | ||
| 9 | 281-46-11560 | WASHER | ||
| 10 | 01010-62255 | BOLT | ||
| 11 | 561-34-61460 | SPRING | ||
| 12 | 561-34-61440 | SPRING | ||
| 13 | EF3435 | PARK BRAKE ASSEMBLY (SEE FIG 50018) | ||
| 14 | HA7267 | HOSE | ||
| 15 | EF4146 | BRACKET | ||
| 16 | 01010-31270 | BOLT | ||
| 17 | 01643-31232 | WASHER | ||
| 18 | 01501-11210 | NUT | ||
| 19 | 561-34-61432 | PLATE | ||
| 20 | EF3446 | DISC, MACHINED | ||
| 21 | 01010-62455 | BOLT | ||
| 22 | 01643-32460 | WASHER | ||
| 23 | 04020-01024 | PIN | ||
| 24 | 56134-61450 | BRACKET | ||
| 25 | 01010-31255 | BOLT | ||
| 26 | WB0508 | FITTING - 90 DEG |
