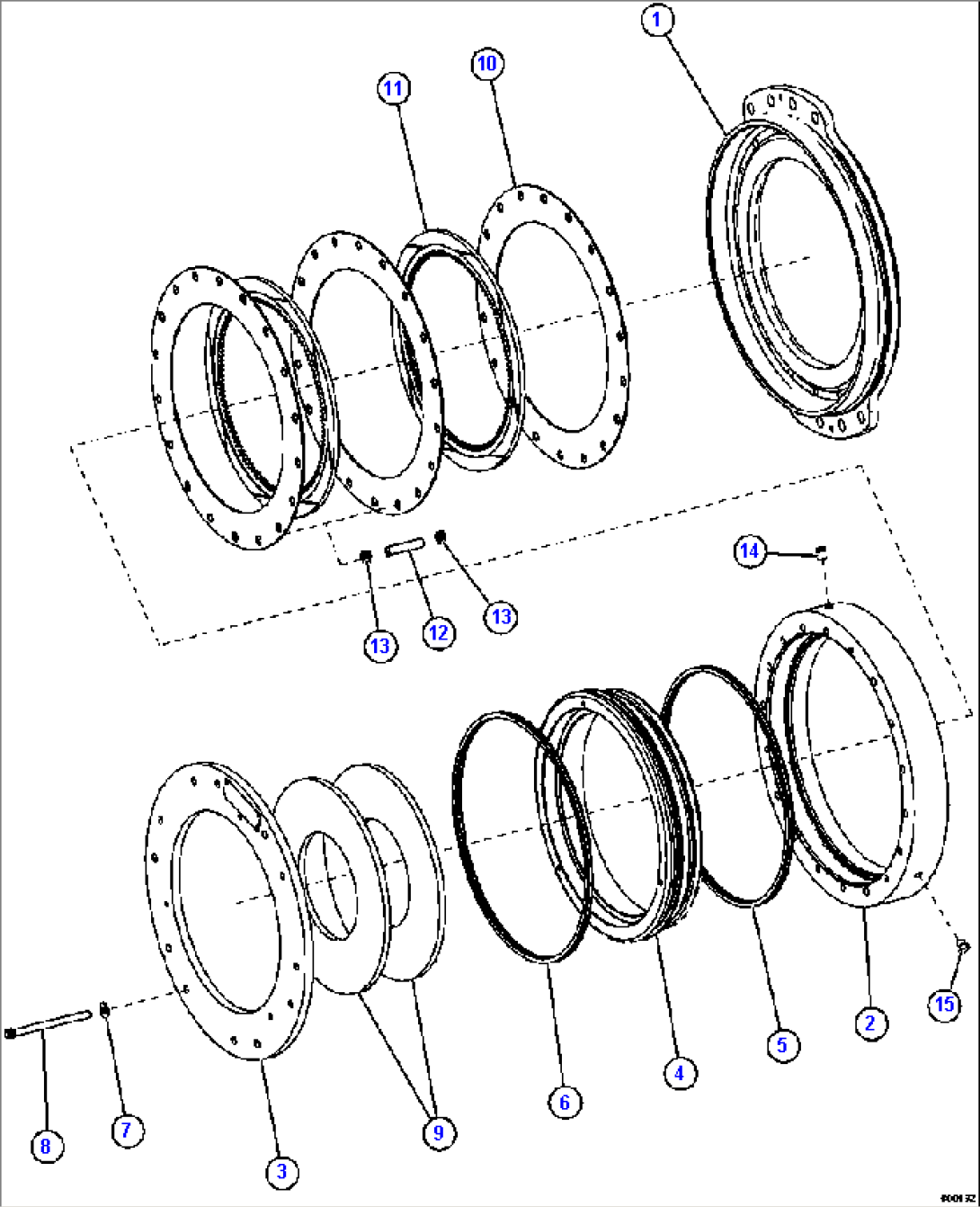

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | ED4280 | HOUSING | ||
| 2 | EF6158 | HOUSING, PISTON | ||
| 3 | ED5327 | CAP, END | ||
| 4 | EF6157 | PISTON | ||
| 5 | PB9661 | SEAL | ||
| 6 | PB9662 | SEAL | ||
| 7 | WA0360 | FLAT WASHER - 1/2" (HARDENED) | ||
| 8 | WA5664 | CAPSCREW - 1/2" - 13NC X 6 1/2" (12 PT) | ||
| 9 | ED4300 | SPRING, BELLEVILLE | ||
| 10 | EM8373 | DISC, SEPARATOR | ||
| 11 | EM8372 | DISC, FRICTION | ||
| 12 | VG7407 | PIN, DOWEL | ||
| 13 | WA5665 | SPRING, COMPRESSION | ||
| 14 | PB7509 | SCREW, BLEEDER | ||
| 14 | EF6161 | PLUG, ADAPTER | ||
| 15 | VM0314 | PLUG |
