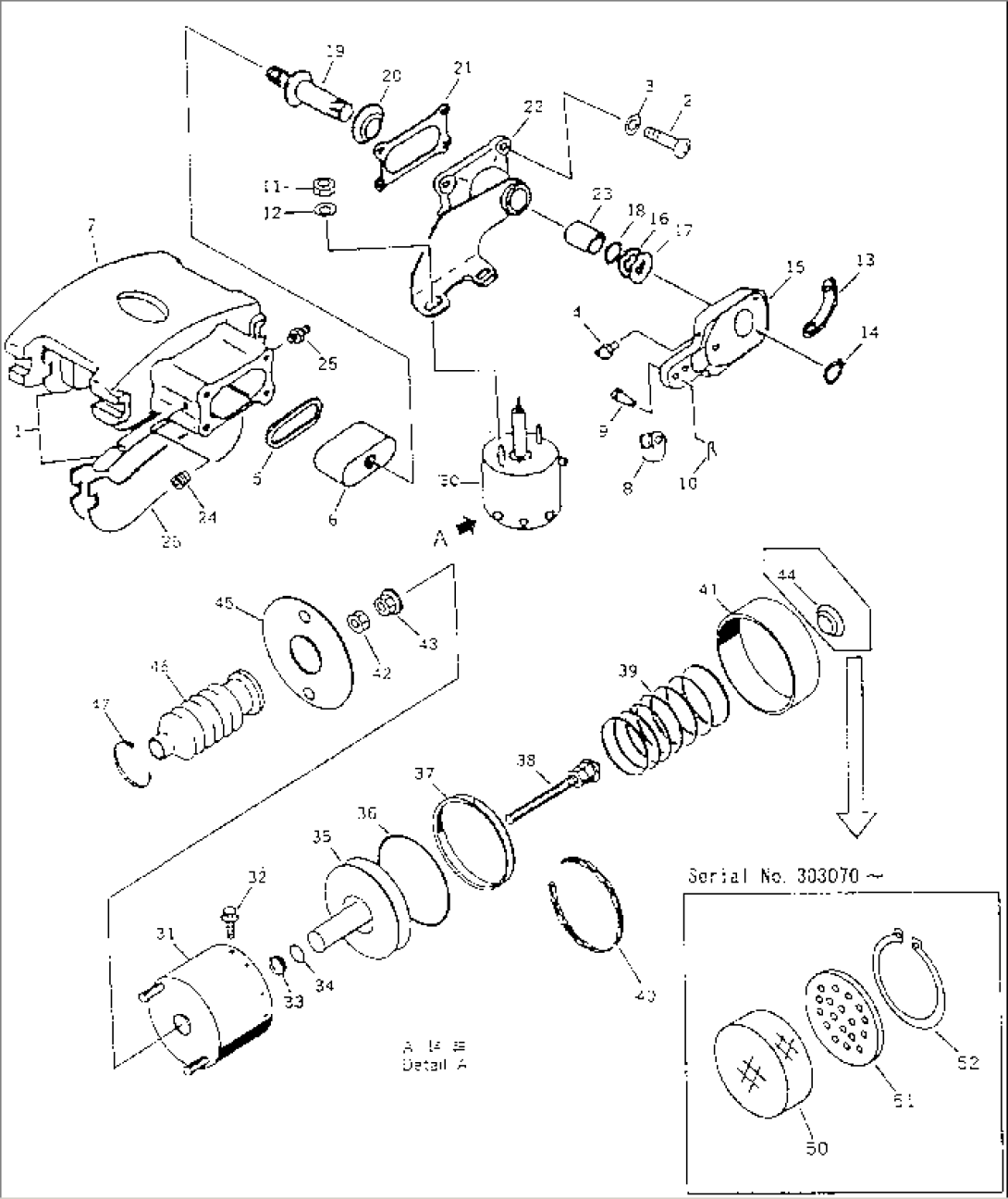

| Item | Part No. | Part Name | Qty | Serial No. |
| BW153210 | CALIPER ASS'Y | 303070- | ||
| BW153009 | CALIPER ASS'Y | 303001-303069 | ||
| 1 | BW054397 | LINING ASS'Y,(2-PIECIES) | 303001- | |
| 2 | \6\ | BOLT (KIT A) | 303001- | |
| 3 | \6\ | WASHER (KIT A) | 303001- | |
| 4 | BW065125 | FITTING,GREASE | 303001- | |
| 5 | \6\ | SEAL (KIT A) | 303001- | |
| 6 | BW053668 | PISTON | 303001- | |
| 6 | \6\ | INSULATOR (KIT A) | 303001- | |
| 7 | BW053669 | CALIPER | 303001- | |
| BW053670 | YOKE ASS'Y | 303001- | ||
| 8 | \6\ | YOKE | 303001- | |
| 9 | \6\ | PIN | 303001- | |
| 10 | \6\ | PIN,COTTER | 303001- | |
| 11 | BW063089 | NUT | 303070- | |
| 11 | BW063104 | NUT | 303001-303069 | |
| 12 | BW053671 | WASHER | 303001- | |
| 13 | BW153013 | BRACKET | 303001- | |
| 14 | \6\ | RING,SNAP (KIT A) | 303001- | |
| 15 | BW053675 | ADJUSTER ASS'Y,SLACK | 303001- | |
| 16 | \6\ | RING (KIT A) | 303001- | |
| 17 | \6\ | WASHER (KIT A) | 303001- | |
| 18 | \6\ | PACKING (KIT A) | 303001- | |
| 19 | BW053981 | SHAFT | 303001- | |
| 20 | \6\ | BEARING (KIT A) | 303001- | |
| 21 | \6\ | GASKET (KIT A) | 303001- | |
| 22 | BW153014 | BRACKET | 303001- | |
| 23 | BW053679 | BEARING | 303001- | |
| 24 | \6\ | PLUG | 303001- | |
| 25 | \6\ | FITTING,PRESSURE RELIEF (KIT A) | 303001- | |
| 26 | BW153051 | PLATE,BACK | 303001- | |
| 30 | BW153211 | AIR CHAMBER ASS'Y | 303070- | |
| 30 | BW153012 | AIR CHAMBER ASS'Y | 303001-303069 | |
| 31 | \6\ | CONTAINER | 303001- | |
| 32 | \6\ | SCREW | 303001- | |
| 33 | \6\ | GASKET (KIT B) | 303001- | |
| 34 | \6\ | O-RING (KIT B) | 303001- | |
| 35 | \6\ | PISTON | 303001- | |
| 36 | \6\ | O-RING (KIT B) | 303001- | |
| 37 | \6\ | RING (KIT B) | 303001- | |
| 38 | \6\ | BOLT | 303001- | |
| 39 | \6\ | SPRING | 303001- | |
| 40 | \6\ | GASKET (KIT B) | 303001- | |
| 41 | \6\ | COVER | 303001- | |
| 42 | \6\ | NUT | 303001- | |
| 43 | \6\ | NUT | 303001- | |
| 44 | \6\ | PLUG | 303001-303069 | |
| BW153080 | PROTECTOR KIT | 303001- | ||
| 45 | BW153082 | PLATE | 303001- | |
| 46 | BW153081 | BELLOWS | 303001- | |
| 47 | BW153084 | CLAMP | 303001- | |
| BW153214 | FILTER ASS'Y,DUST | 303070- | ||
| 50 | BW153215 | ELEMENT | 303070- | |
| 51 | \6\ | SCREEN | 303070- | |
| 52 | BW153218 | RING,SNAP | 303070- | |
| SERVICE KIT | ||||
| KIT A | BW054389 | OVERHAUL KIT,CALIPER | 303001- | |
| KIT B | BW153027 | OVERHAUL KIT,CHAMBER | 303001- |
