| Item | Part No. | Part Name | Qty | Serial No. |

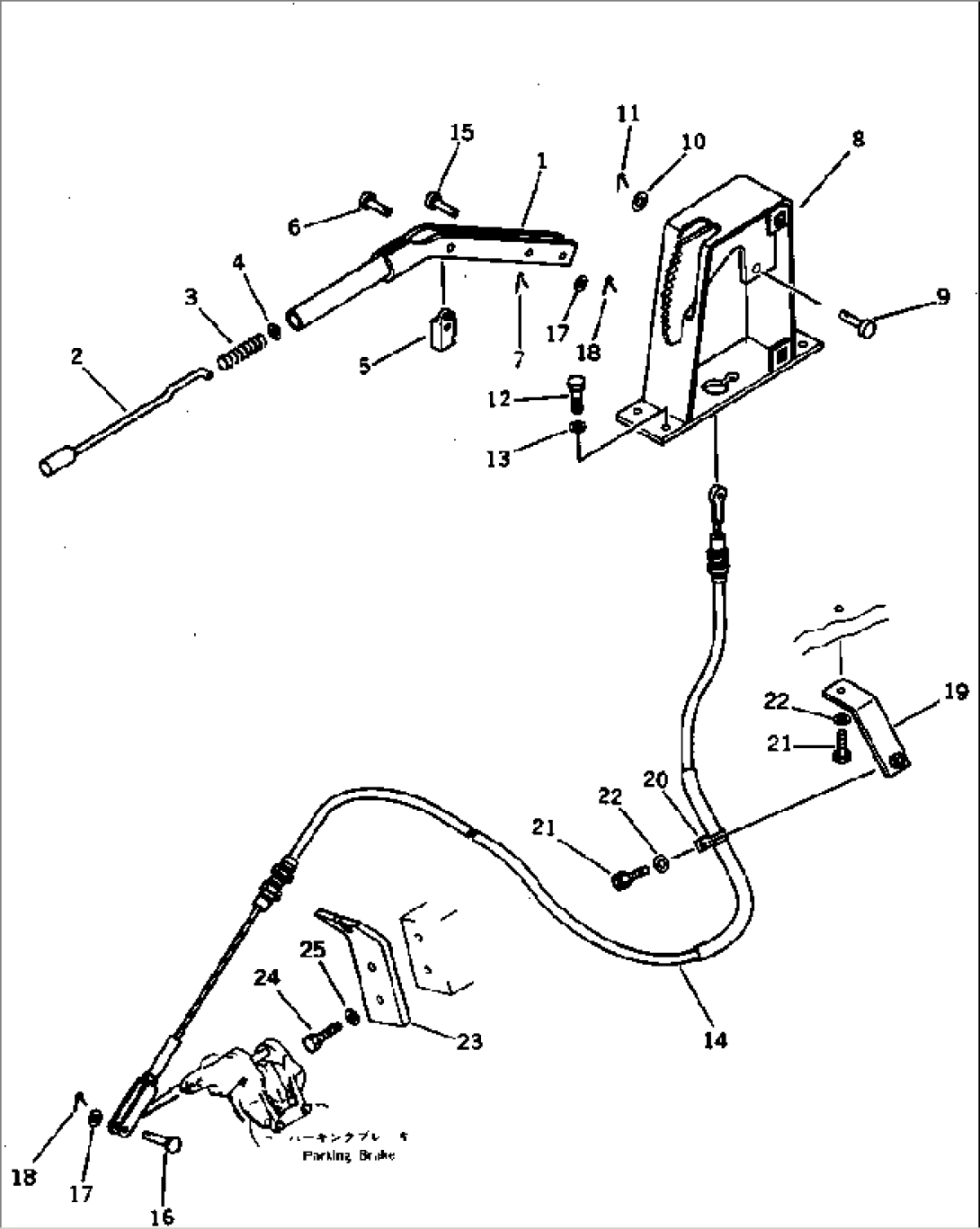

| 417-22-16103 | PARKING BRAKE ASS'Y | 10001- | ||
| 1 | 417-22-16150 | LEVER | 10001- | |
| 2 | 419-22-16110 | KNOB | 10001- | |
| 3 | 419-22-16120 | SPRING | 10001- | |
| 4 | 419-22-16130 | WASHER | 10001- | |
| 5 | 419-22-16150 | PAWL | 10001- | |
| 6 | 04205-11032 | PIN | 10001- | |
| 7 | 04050-13020 | PIN,COTTER | 10001- | |
| 8 | 417-22-16113 | BRACKET | 10001- | |
| 9 | 04205-11235 | PIN | 10001- | |
| 10 | 01641-21223 | WASHER | 10001- | |
| 11 | 04050-13022 | PIN,COTTER | 10001- | |
| 12 | 01010-31230 | BOLT | 10001- | |
| 13 | 01643-31232 | WASHER | 10001- | |
| 14 | 417-22-16131 | CABLE | 10001- | |
| 15 | 04205-11035 | PIN | 10001- | |
| 16 | 04205-11030 | PIN | 10001- | |
| 17 | 01641-21016 | WASHER | 10001- | |
| 18 | 04050-13020 | PIN,COTTER | 10001- | |
| 19 | 417-22-16140 | PLATE | 10001- | |
| 20 | 08036-21414 | CLIP | 10001- | |
| 21 | 01010-31220 | BOLT | 10001- | |
| 22 | 01643-31232 | WASHER | 10001- | |
| 23 | 417-22-16120 | BRACKET | 10001- | |
| 24 | 01010-31230 | BOLT | 10001- | |
| 25 | 01643-31232 | WASHER | 10001- |
