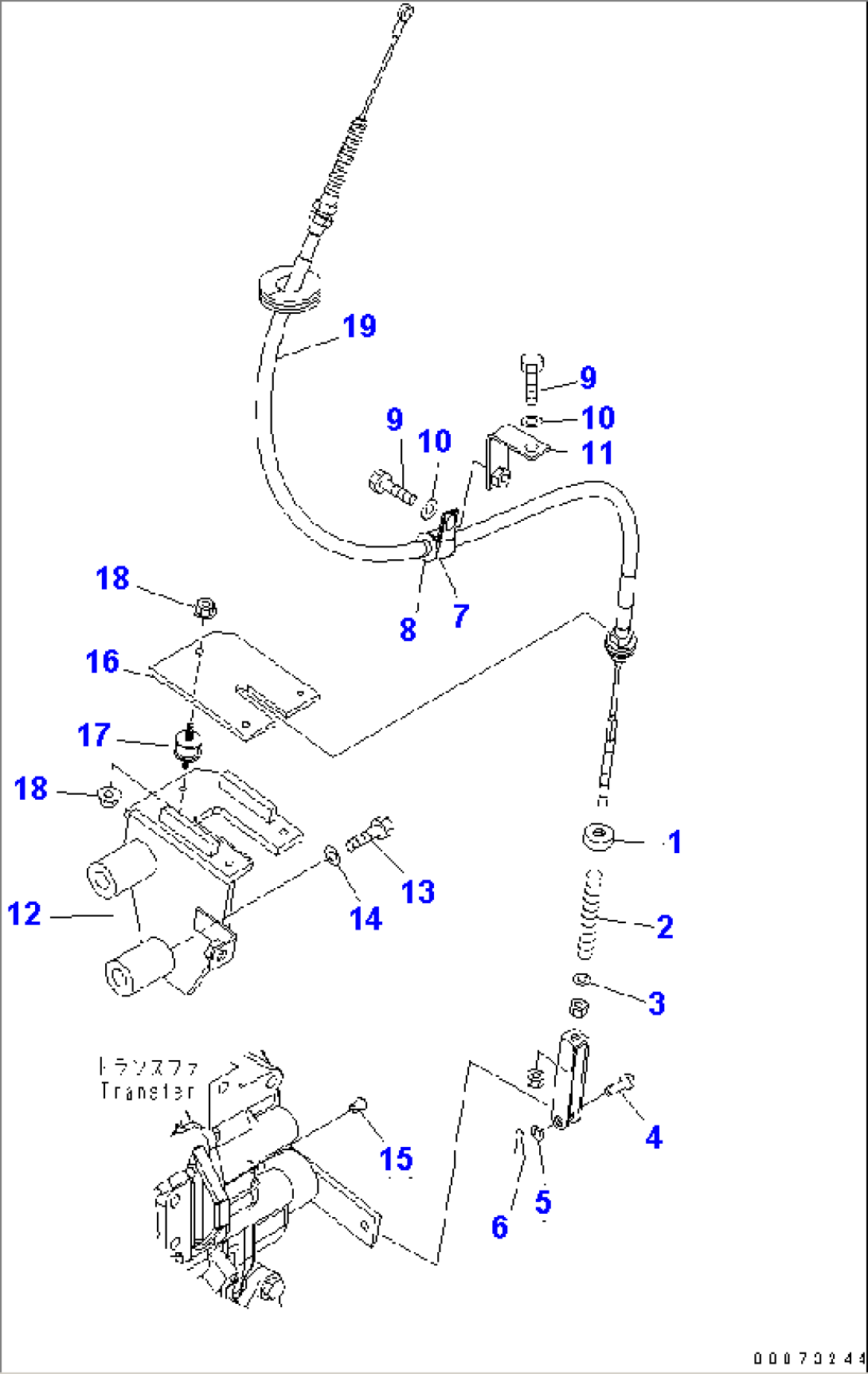

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-43-18380 | GUIDE | A89001- | |
| 2 | 416-22-26260 | SPRING | A89001- | |
| 3 | 01641-20812 | WASHER | A89001- | |
| 4 | 04205-11028 | PIN | A89001- | |
| 5 | 01641-21016 | WASHER | A89001- | |
| 6 | 04050-13020 | PIN | A89001- | |
| 7 | 04434-51912 | CLIP | A89001- | |
| 8 | 07095-20213 | CUSHION | A89001- | |
| 9 | 01010-81020 | BOLT | A89001- | |
| 10 | 01643-31032 | WASHER | A89001- | |
| 11 | 42A-16-11231 | PLATE | A89001- | |
| 12 | 418-22-36183 | BRACKET | A89001- | |
| 13 | 01010-81695 | BOLT | A89001- | |
| 14 | 01643-31645 | WASHER | A89001- | |
| 15 | 07049-01620 | PLUG | A89001- | |
| 16 | 418-22-36192 | PLATE | A89001- | |
| 17 | 424-43-11240 | CUSHION | A89001- | |
| 18 | 01584-00605 | NUT | A89001- | |
| 19 | CABLE,(SEE FIG. K0210-24A0) | A89001- |
