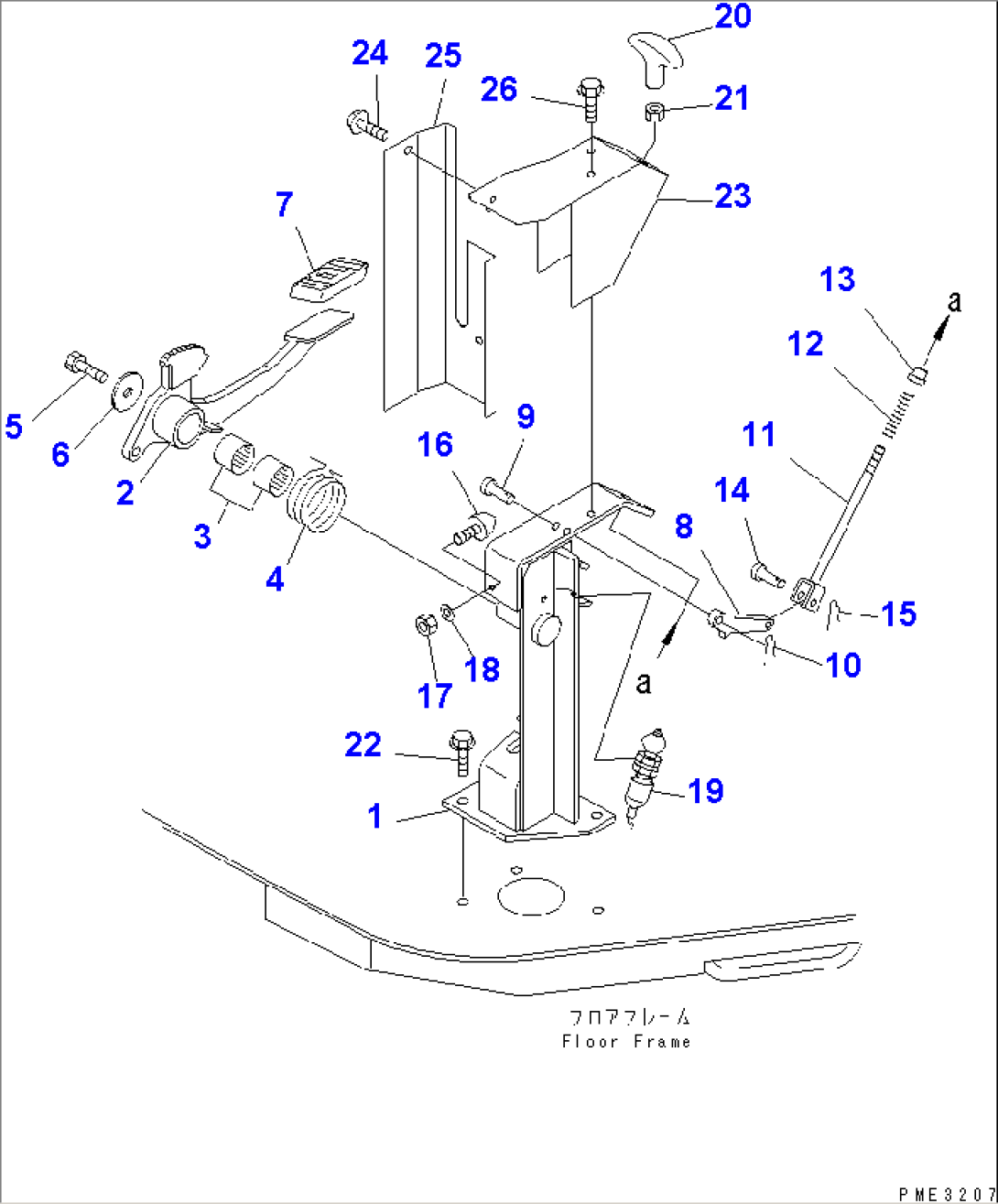

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-22-26110 | BRACKET | 10001-11257 | |
| 2 | 416-22-26121 | PEDAL | 10001-11257 | |
| 3 | 06124-02520 | BEARING | 10001-11257 | |
| 4 | 416-22-26280 | SPRING | 10001-11257 | |
| 5 | 01010-81016 | BOLT | 10001-11257 | |
| 6 | 415-64-13120 | WASHER | 10001-11257 | |
| 7 | 363-43-37170 | PAD | 10001-11257 | |
| 8 | 416-22-26130 | PAWL | 10001-11257 | |
| 9 | 04205-11030 | PIN | 10001-11257 | |
| 10 | 04052-11038 | PIN,SNAP | 10001-11257 | |
| 11 | 416-22-26190 | ROD | 10001-11257 | |
| 12 | 416-22-26210 | SPRING | 10001-11257 | |
| 13 | 416-22-26250 | BUSHING | 10001-11257 | |
| 14 | 04205-10622 | PIN | 10001-11257 | |
| 15 | 04052-10633 | PIN,SNAP | 10001-11257 | |
| 16 | 416-22-26230 | STOPPER | 10001-11257 | |
| 17 | 01580-10605 | NUT | 10001-11257 | |
| 18 | 01643-30623 | WASHER | 10001-11257 | |
| 19 | 42A-06-15140 | SWITCH,STOP | 10001-11257 | |
| 20 | 416-22-26220 | KNOB | 10001-11257 | |
| 21 | 01580-10806 | NUT | 10001-11257 | |
| 22 | 01435-01025 | BOLT | 10001-11257 | |
| 23 | 416-22-26140 | COVER | 10001-11257 | |
| 24 | 01435-00812 | BOLT | 10001-11257 | |
| 25 | 416-22-26150 | COVER | 10001-11257 | |
| 26 | 01435-00812 | BOLT | 10001-11257 |
