| Item | Part No. | Part Name | Qty | Serial No. |
| (426-22-10004) | FRONT AXLE ASS'Y | 10325- | ||
| (\0\426-22-10003) | FRONT AXLE ASS'Y | 10245-10324 | ||
| (\0\426-22-10002) | FRONT AXLE ASS'Y | 10167-10244 | ||
| (\0\426-22-10001) | FRONT AXLE ASS'Y | 10001-10166 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3101 TO 3161. | ||||

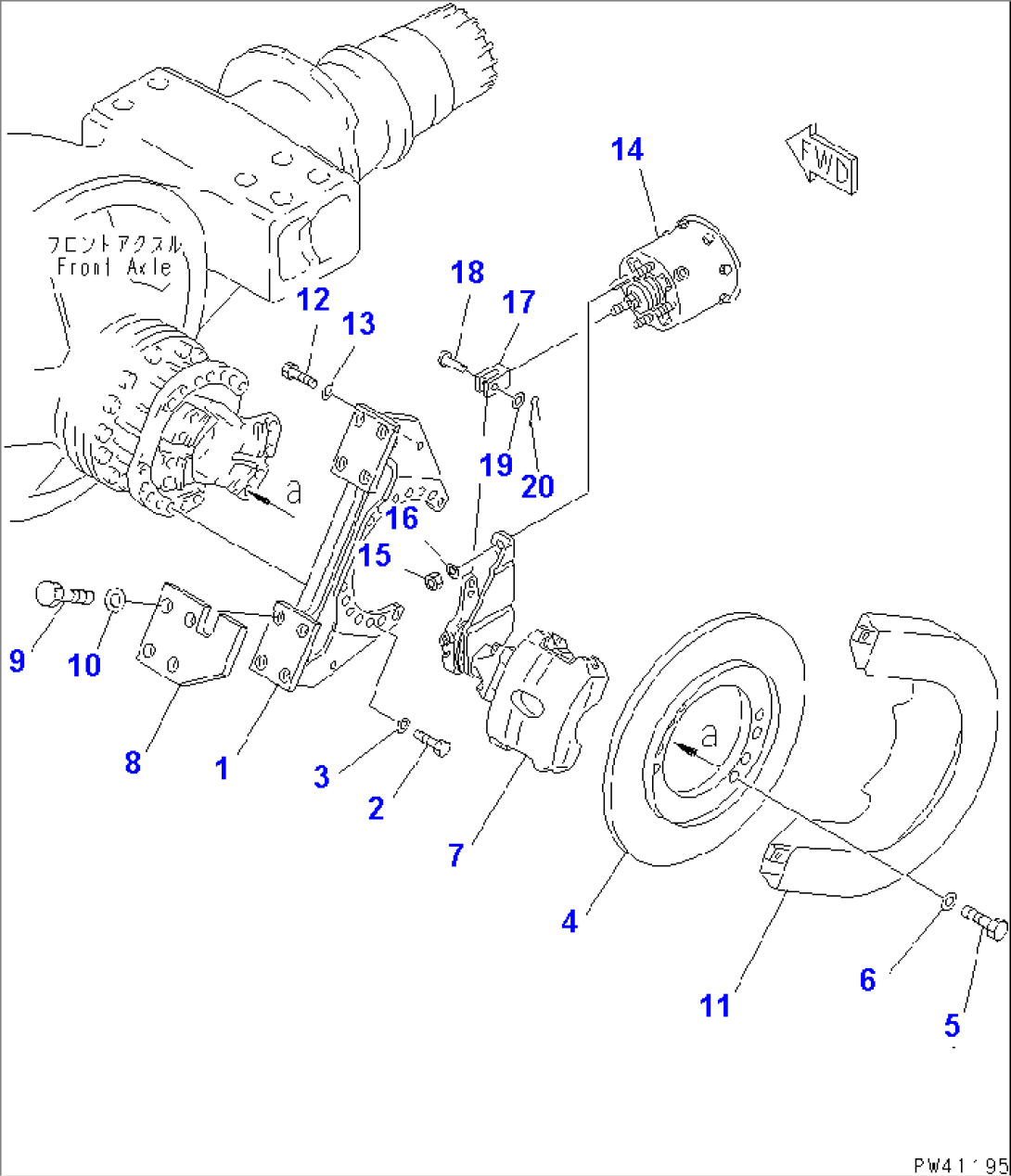

| 426-32-15001 | PARKING BRAKE ASS'Y | 10001- | ||
| 1 | 426-32-15312 | BRACKET | 10224- | |
| 1 | 426-32-15311 | BRACKET | 10001-10223 | |
| 2 | 01010-61645 | BOLT | 10001- | |
| 3 | 01643-31645 | WASHER | 10001- | |
| 4 | 426-32-15411 | DISC | 10001- | |
| 5 | 01010-62050 | BOLT | 10001- | |
| 6 | 01643-32060 | WASHER | 10001- | |
| 7 | 425-32-15200 | BRAKE PAD ASS'Y | 10001- | |
| 7 | (\2\425-32-15100) | BRAKE PAD ASS'Y | (10001-.) | |
| 8 | 427-32-15321 | PLATE | 10735- | |
| 8 | 427-32-15320 | PLATE | 10001-10731 | |
| 9 | 01010-62455 | BOLT | 10001- | |
| 10 | 01643-32460 | WASHER | 10001- | |
| 11 | 426-32-15421 | COVER | 10224- | |
| 11 | \0\426-32-15420 | COVER | 10001-10223 | |
| 12 | 01010-81235 | BOLT | 10001- | |
| 13 | 01643-31232 | WASHER | 10001- | |
| 14 | (426-32-15501) | SPRING CYLINDER A. | 10001- | |
| 15 | 01582-11613 | NUT | 10001- | |
| 16 | 01643-31645 | WASHER | 10001- | |
| 17 | 425-32-15330 | YOKE | 10001- | |
| 18 | 425-32-15340 | PIN | 10001- | |
| 19 | 01641-21423 | WASHER | 10001- | |
| 20 | 04050-13022 | PIN,COTTER | 10001- |
