| Item | Part No. | Part Name | Qty | Serial No. |
| (41E-22-10101) | AXLE ASS'Y,FRONT | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101 TO 3161. | ||||

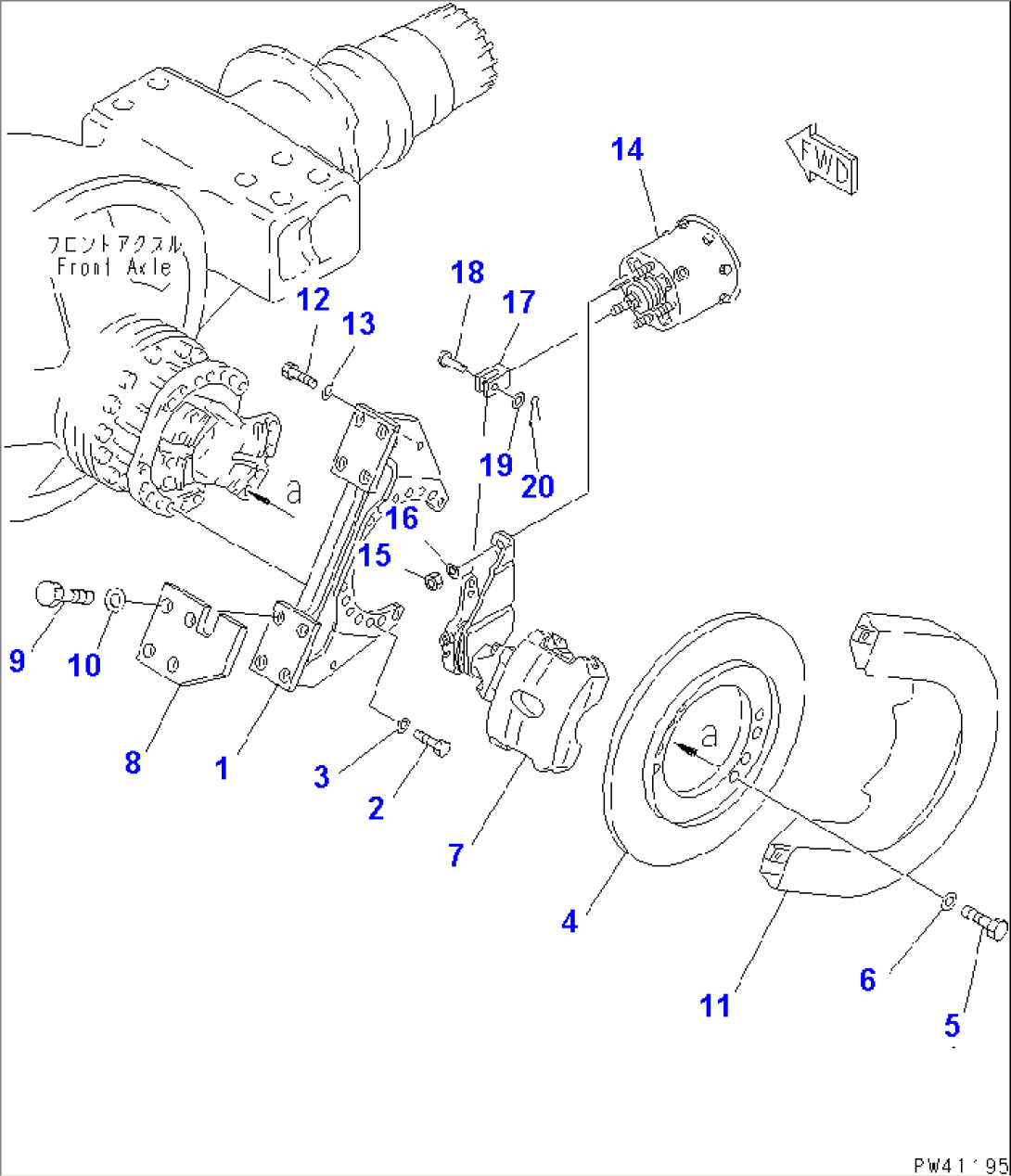

| 426-32-15090 | PARKING BRAKE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3141 TO 3161. | ||||
| 1 | 426-32-15312 | BRACKET | 10001- | |
| 2 | 01010-31645 | BOLT | 10001- | |
| 3 | 01643-31645 | WASHER | 10001- | |
| 4 | 426-32-15411 | DISC | 10001- | |
| 5 | 01010-62050 | BOLT | 10001- | |
| 6 | 01643-32060 | WASHER | 10001- | |
| 7 | (426-32-15191) | BRAKE PAD ASS'Y | 10001- | |
| 8 | 426-32-15321 | PLATE | 10001- | |
| 9 | 01010-62455 | BOLT | 10001- | |
| 10 | 01643-32460 | WASHER | 10001- | |
| 11 | 426-32-15421 | COVER | 10001- | |
| 12 | 01010-51235 | BOLT | 10001- | |
| 13 | 01643-31232 | WASHER | 10001- | |
| 14 | (426-Z82-1400) | SPRING CYLINDER A. | 10001- | |
| 15 | 01582-11613 | NUT | 10001- | |
| 16 | 01643-31645 | WASHER | 10001- | |
| 17 | 425-32-15330 | YOKE | 10001- | |
| 18 | 425-32-15340 | PIN | 10001- | |
| 19 | 01641-21423 | WASHER | 10001- | |
| 20 | 04050-13022 | PIN,COTTER | 10001- |
