| Item | Part No. | Part Name | Qty | Serial No. |

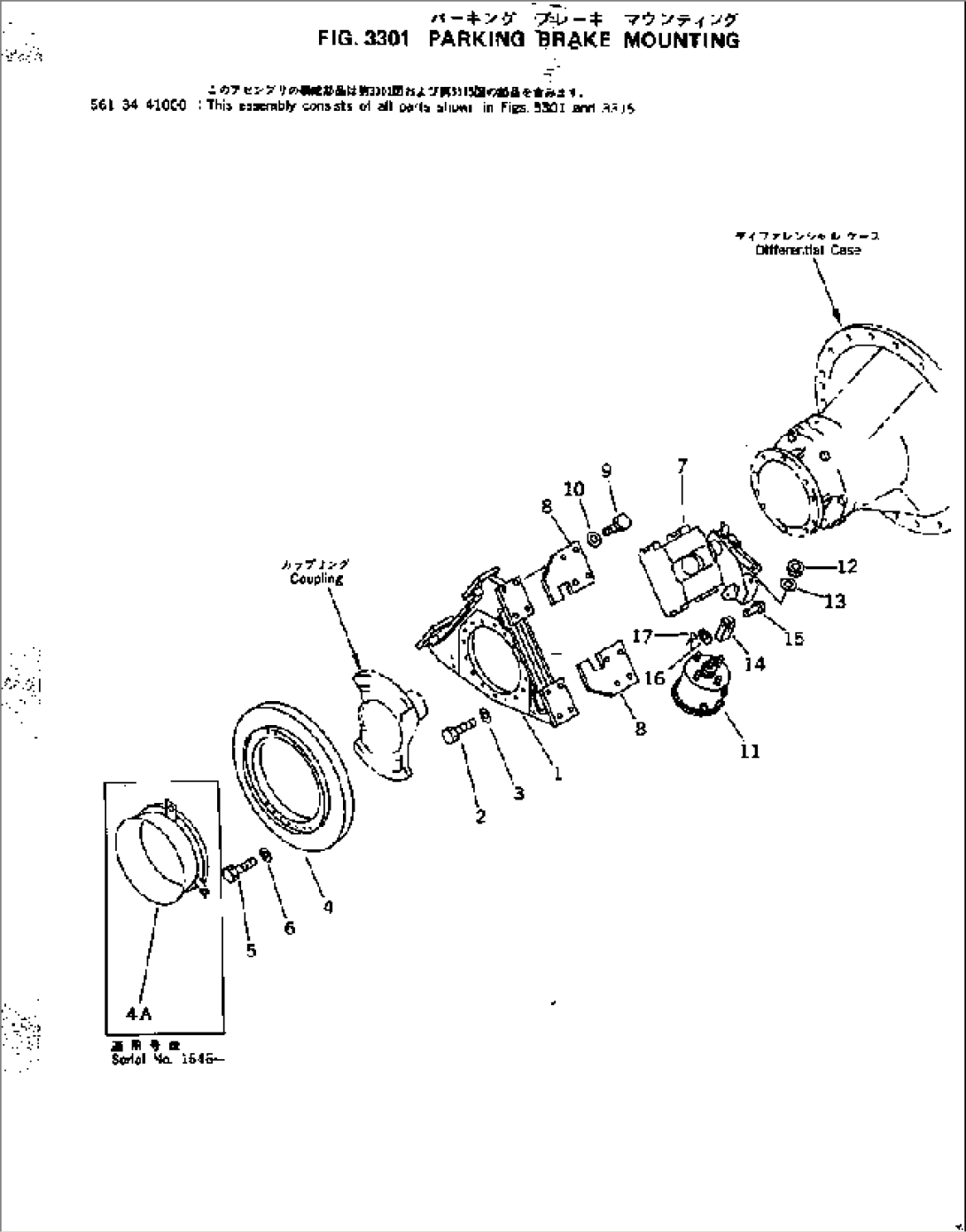

| 561-34-41000 | MOUNTING ASS'Y,PARKING BRAKE | 1501- | ||
| 1 | 427-32-15310 | BRACKET | 1501- | |
| 2 | 01010-62055 | BOLT | 1527- | |
| 01010-62070 | BOLT | 1501-1526 | ||
| 3 | 01643-32060 | WASHER | 1501- | |
| 4 | 561-34-41420 | DISC | 1527- | |
| 561-34-41410 | DISC | 1501-1526 | ||
| 4A | 561-34-61491 | COVER | 1546- | |
| 5 | 01010-62070 | BOLT | 1501- | |
| 6 | 01643-32060 | WASHER | 1501- | |
| 7 | (561-34-41101) | BRAKE ASS'Y | 1546- | |
| \0\561-34-41100 | BRAKE ASS'Y | 1501-1545 | ||
| 8 | 427-32-15320 | PLATE | 1527- | |
| 561-34-41430 | PLATE | 1501-1526 | ||
| 9 | 01010-62455 | BOLT | 1501- | |
| 10 | 01643-32460 | WASHER | 1501- | |
| 11 | (426-32-15501) | SPRING CYLINDER A. | 1501- | |
| 12 | 01582-11613 | NUT | 1501- | |
| 13 | 01643-31645 | WASHER | 1501- | |
| 14 | 425-32-15330 | YOKE | 1501- | |
| 15 | 425-32-15340 | PIN | 1501- | |
| 16 | 01641-21423 | WASHER | 1501- | |
| 17 | 04050-13022 | PIN | 1501- |
