| Item | Part No. | Part Name | Qty | Serial No. |
| (425-22-10007) | FRONT AXLE ASS'Y | 20001- | ||
| (425-22-10003) | FRONT AXLE ASS'Y | 10456-19999 | ||
| \0\425-22-10002 | FRONT AXLE ASS'Y | 10277-10455 | ||
| \0\425-22-10001 | FRONT AXLE ASS'Y | 10001-10276 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3101 TO 3147. | ||||

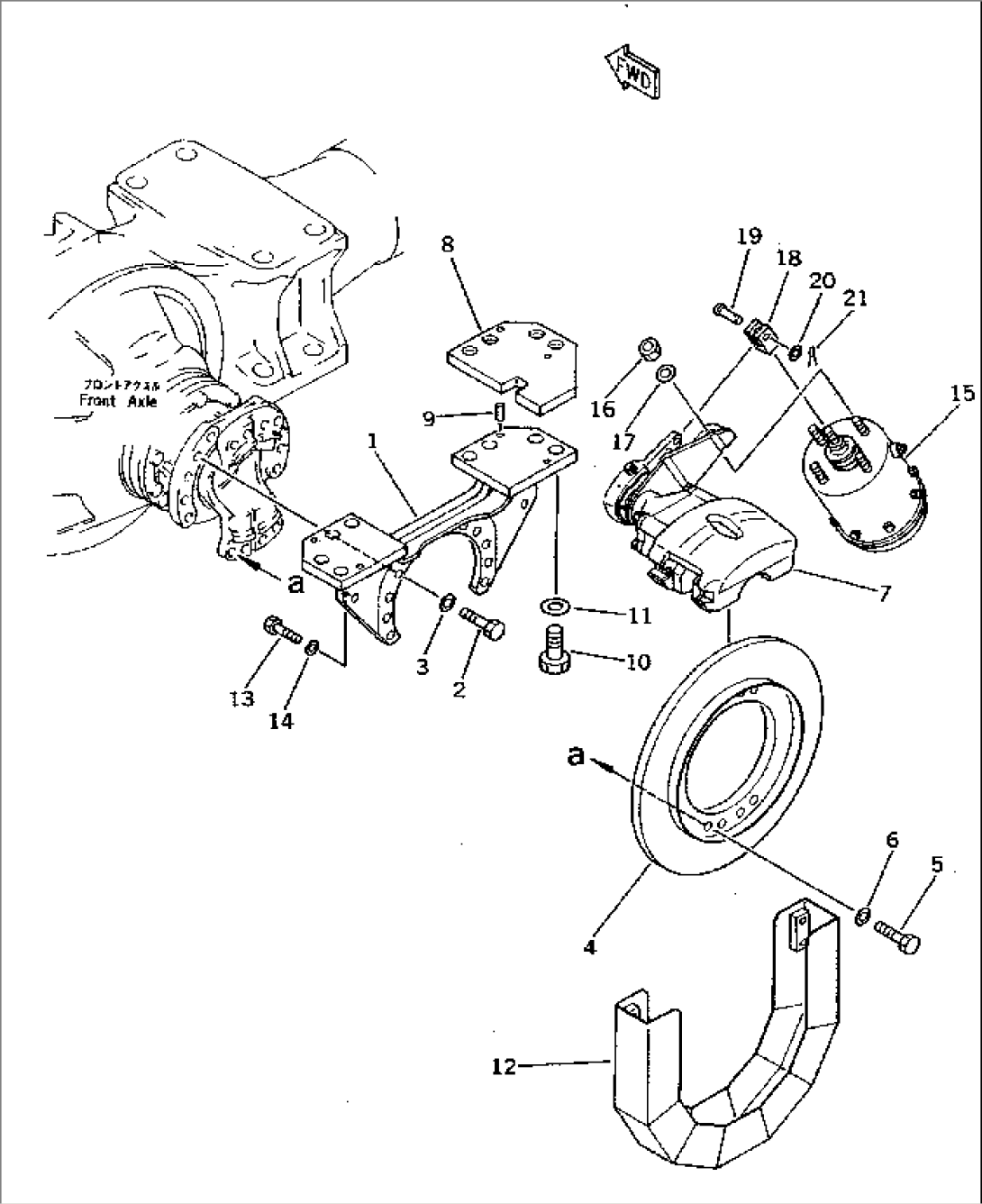

| 425-32-15001 | PARKING BRAKE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3141 TO 3147. | ||||
| 1 | 425-32-15312 | BRACKET | 10001- | |
| 2 | 01010-61645 | BOLT | 10001- | |
| 3 | 01643-31645 | WASHER | 10001- | |
| 4 | 425-32-15411 | DISC | 10001- | |
| 5 | 01010-61645 | BOLT | 10001- | |
| 6 | 01643-31645 | WASHER | 10001- | |
| 7 | (425-32-15200) | BRAKE PAD ASS'Y | .- | |
| \0\425-32-15100 | BRAKE PAD ASS'Y | 10001-. | ||
| 8 | 425-32-15322 | PLATE | 10001- | |
| 9 | 04020-01024 | PIN | 10001- | |
| 10 | 01010-62455 | BOLT | 10001- | |
| 11 | 01643-32460 | WASHER | 10001- | |
| 12 | 425-32-15421 | COVER | 10341- | |
| \0\425-32-15420 | COVER | 10001-10340 | ||
| 13 | 01010-81240 | BOLT | 10001- | |
| 14 | 01643-31232 | WASHER | 10001- | |
| 15 | (426-32-15500) | SPRING CYLINDER A. | 10001- | |
| 16 | 01582-11613 | NUT | 10001- | |
| 17 | 01643-31645 | WASHER | 10001- | |
| 18 | 425-32-15330 | YOKE | 10001- | |
| 19 | 425-32-15340 | PIN | 10001- | |
| 20 | 01641-21423 | WASHER | 10001- | |
| 21 | 04050-13022 | PIN,COTTER | 10001- |
