| Item | Part No. | Part Name | Qty | Serial No. |

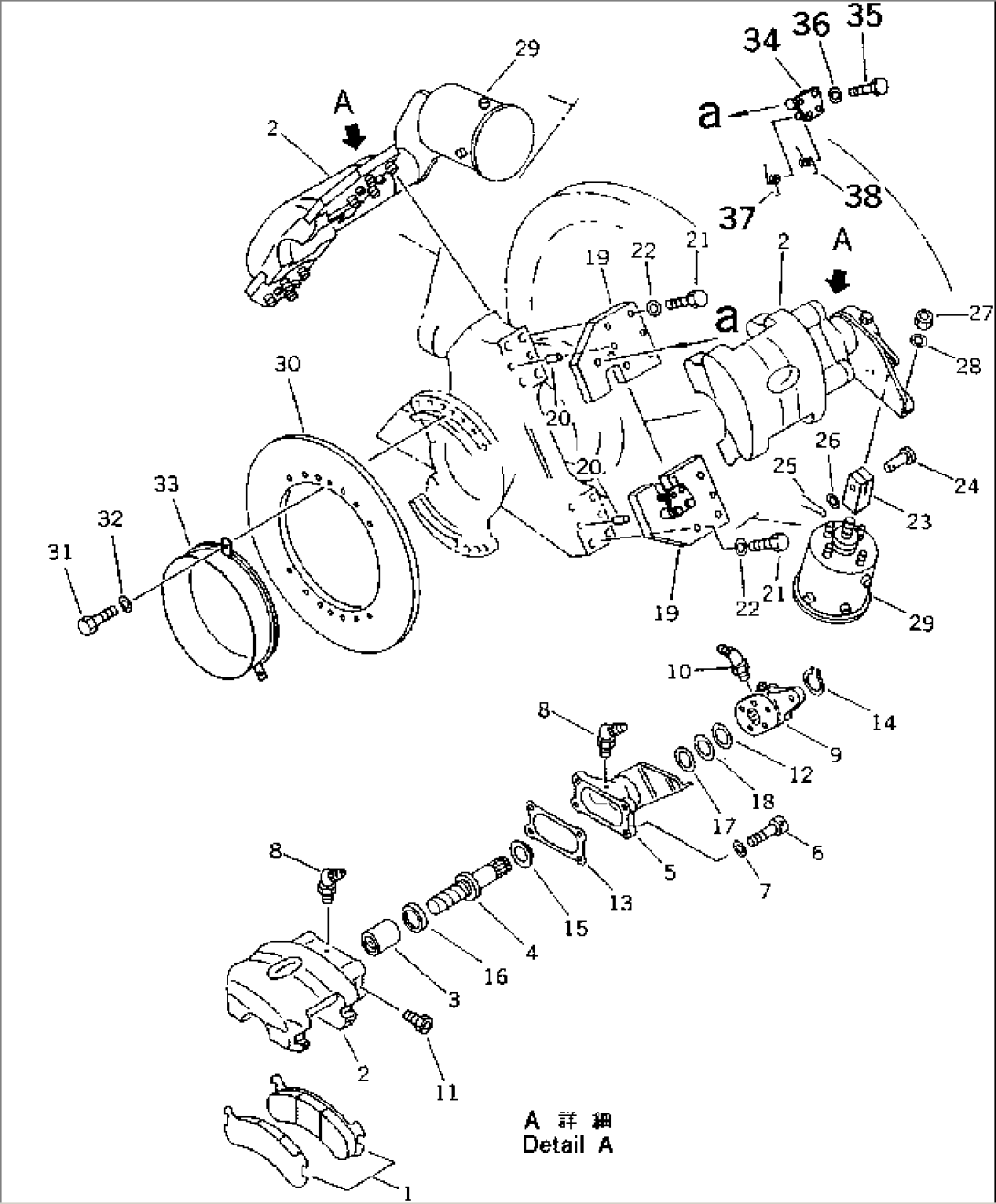

| 561-34-62100 | BRAKE ASS'Y | 1001- | ||
| 1 | 561-34-41110 | PAD | 1001- | |
| 2 | 561-34-62120 | BODY | 1001- | |
| 3 | 561-34-62130 | PISTON | 1001- | |
| 4 | 561-34-62140 | SCREW | 1001- | |
| 5 | 561-34-62150 | HOUSING | 1001- | |
| 6 | 561-34-62160 | BOLT | 1001- | |
| 7 | 561-34-62170 | WASHER | 1001- | |
| 8 | 425-32-15290 | FITTING | 1001- | |
| 9 | 425-32-15610 | ADJUSTER,SLACK | 1001- | |
| 10 | 07020-00675 | FITTING,GREASE | 1001- | |
| 11 | 07029-00000 | VALVE | 1001- | |
| 425-32-05010 | SERVICE KIT | 1001- | ||
| 12 | \6\ | WASHER | 1001- | |
| 13 | \6\ | GASKET | 1001- | |
| 14 | \6\ | RING | 1001- | |
| 15 | \6\ | BEARING | 1001- | |
| 16 | \6\ | SEAL | 1001- | |
| 17 | \6\ | PACKING | 1001- | |
| 18 | \6\ | WASHER | 1001- | |
| 19 | 561-34-61432 | PLATE | 1001- | |
| 20 | 04020-01024 | PIN,DOWEL | 1001- | |
| 21 | 01010-62455 | BOLT | 1001- | |
| 22 | 01643-32460 | WASHER | 1001- | |
| 23 | 425-32-15330 | YOKE | 1001- | |
| 24 | 425-32-15340 | PIN | 1001- | |
| 25 | 04050-13022 | PIN,COTTER | 1001- | |
| 26 | 01641-21423 | WASHER | 1001- | |
| 27 | 01582-11613 | NUT | 1001- | |
| 28 | 01643-31645 | WASHER | 1001- | |
| 29 | (426-32-15501) | SPRING CYLINDER A.,(SEE FIG.4825) | 1001- | |
| 30 | 561-34-61420 | DISK | 1001- | |
| 31 | 01010-62055 | BOLT | 1001- | |
| 32 | 01643-32060 | WASHER | 1001- | |
| 33 | 561-34-61491 | COVER | 1001- | |
| 34 | 561-34-61450 | BRACKET | 1001- | |
| 35 | 01010-31255 | BOLT | 1001- | |
| 36 | 01643-31232 | WASHER | 1001- | |
| 37 | 561-34-61440 | SPRING,(R.H. WIND) | 1001- | |
| 38 | 561-34-61460 | SPRING,(L.H. WIND) | 1001- |
