| Item | Part No. | Part Name | Qty | Serial No. |

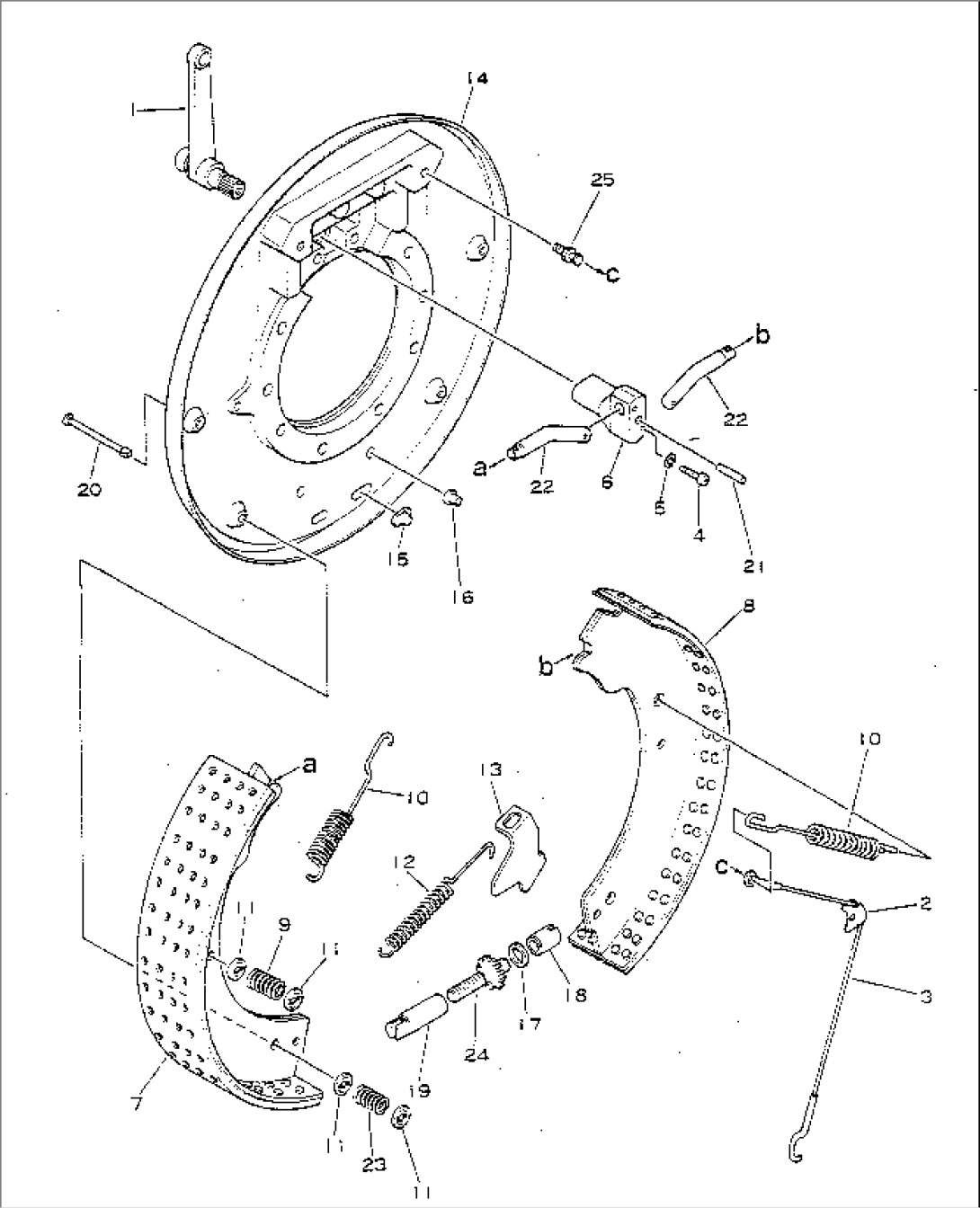

| 568-34-11100 | PARKING BRAKE ASS'Y | 1017-1026 | ||
| 1 | 568-34-11320 | LEVER | 1017-1026 | |
| 2 | 568-34-11470 | GUIDE | 1017-1026 | |
| 3 | 568-34-11450 | CABLE | 1017-1026 | |
| 4 | 568-34-11370 | SCREW | 1017-1026 | |
| 5 | 568-34-11380 | WASHER | 1017-1026 | |
| 6 | 568-34-11310 | CAM | 1017-1026 | |
| 7 | 568-34-11110 | SHOE ASS'Y | 1017-1026 | |
| 8 | 568-34-11120 | SHOE ASS'Y | 1017-1026 | |
| 9 | 568-34-11270 | SPRING | 1017-1026 | |
| 10 | 568-34-11350 | SPRING | 1017-1026 | |
| 11 | 568-34-11230 | CUP | 1017-1026 | |
| 12 | 568-34-11360 | SPRING | 1017-1026 | |
| 13 | 568-34-11460 | LEVER | 1017-1026 | |
| 14 | 568-34-00010 | ANCHOR | 1017-1026 | |
| 15 | 568-34-11550 | GROMMET | 1017-1026 | |
| 16 | 568-34-11540 | BOOT | 1017-1026 | |
| 17 | 568-34-11440 | PLATE | 1017-1026 | |
| 18 | 568-34-11430 | SOCKET | 1017-1026 | |
| 19 | 568-34-11420 | NUT | 1017-1026 | |
| 20 | 568-34-11240 | PIN | 1017-1026 | |
| 21 | 568-34-11220 | PIN | 1017-1026 | |
| 22 | 568-34-11330 | LINK | 1017-1026 | |
| 23 | 568-34-11280 | SPRING | 1017-1026 | |
| 24 | 568-34-11410 | SCREW | 1017-1026 | |
| 25 | 568-34-11250 | PIN | 1017-1026 |
