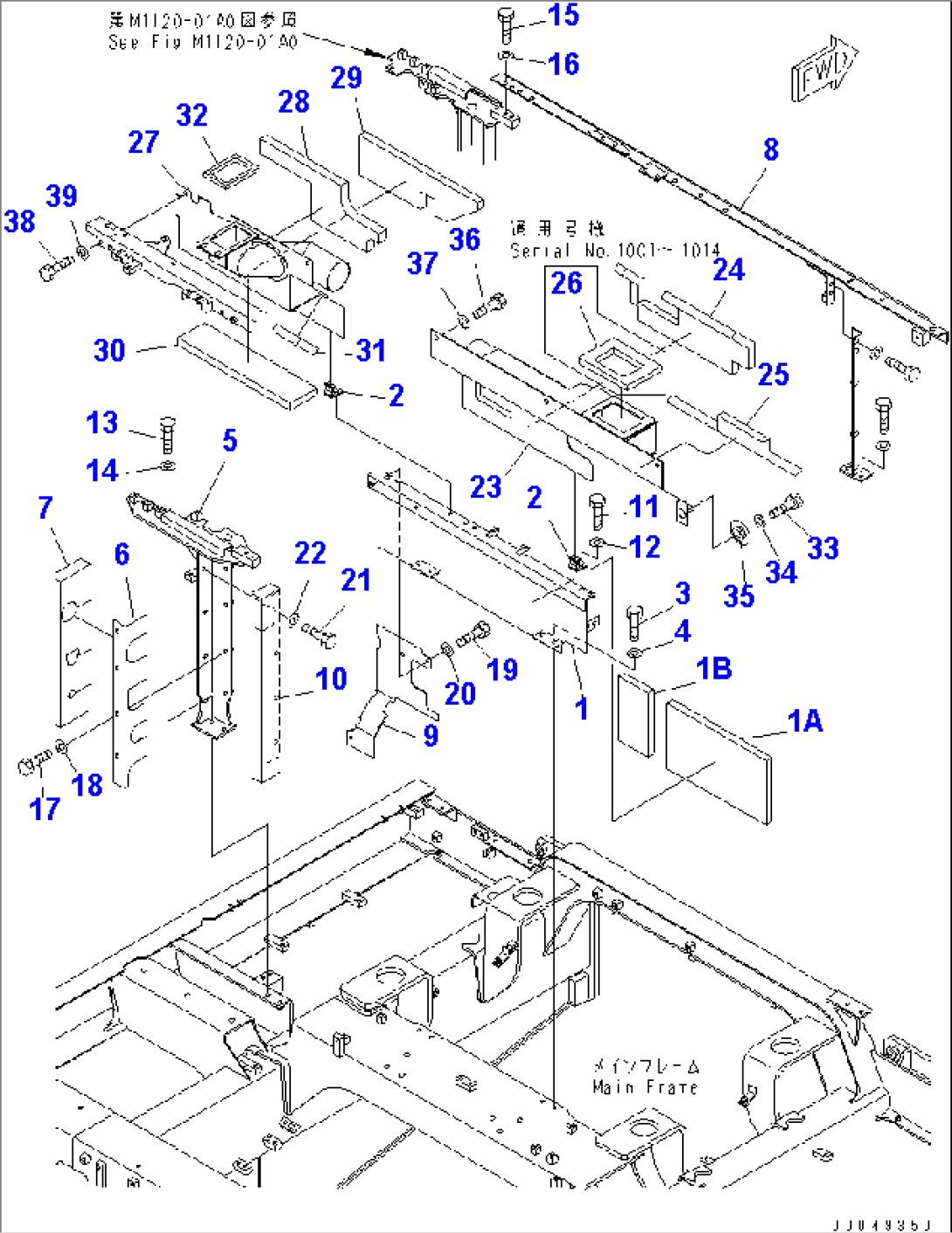

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8295-54-1320 | COVER | 1001- | |
| 1A | 8295-54-1330 | SHEET | 1001- | |
| 1B | 8295-54-1340 | SHEET | 1001- | |
| 2 | 20Y-54-12320 | CATCH | 1001- | |
| 3 | 01010-81230 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 8295-54-2551 | FRAME | 1001- | |
| 6 | 208-54-64370 | COVER | 1001- | |
| 7 | 208-54-64480 | SHEET | 1001- | |
| 8 | 8295-54-2571 | FRAME | 1001- | |
| 9 | 8295-54-2561 | COVER | 1001- | |
| 10 | 8295-54-1671 | COVER | 1066- | |
| 10 | 8295-54-1670 | COVER | 1001-1065 | |
| 11 | 01010-81230 | BOLT | 1001- | |
| 12 | 01643-31232 | WASHER | 1001- | |
| 13 | 01010-81235 | BOLT | 1001- | |
| 14 | 01643-31232 | WASHER | 1001- | |
| 15 | 01010-81230 | BOLT | 1001- | |
| 16 | 01643-31232 | WASHER | 1001- | |
| 17 | 01010-81230 | BOLT | 1001- | |
| 18 | 01643-31232 | WASHER | 1001- | |
| 19 | 01010-81230 | BOLT | 1001- | |
| 20 | 01643-31232 | WASHER | 1001- | |
| 21 | 01010-81230 | BOLT | 1001- | |
| 22 | 01643-31232 | WASHER | 1001- | |
| 23 | 8295-54-1362 | COVER | 1015- | |
| 23 | 8295-54-1361 | COVER | 1001-1014 | |
| 24 | 8295-54-1372 | SHEET | 1015- | |
| 24 | 8295-54-1371 | SHEET | 1001-1014 | |
| 25 | 8295-54-1380 | SHEET | 1001- | |
| 26 | 8295-54-1390 | SHEET | 1001-1014 | |
| 27 | 8295-54-1420 | COVER | 1001- | |
| 28 | 8295-54-1430 | SHEET | 1001- | |
| 29 | 8295-54-1440 | SHEET | 1001- | |
| 30 | 8295-54-1450 | SHEET | 1001- | |
| 31 | 8295-54-1460 | SHEET | 1001- | |
| 32 | 8295-54-1470 | SHEET | 1001- | |
| 33 | 01010-81225 | BOLT | 1001- | |
| 34 | 01643-31232 | WASHER | 1001- | |
| 35 | 203-54-62670 | COLLAR | 1001- | |
| 36 | 01010-81230 | BOLT | 1001- | |
| 37 | 01643-31232 | WASHER | 1001- | |
| 38 | 01010-81230 | BOLT | 1001- | |
| 39 | 01643-31232 | WASHER | 1001- |
