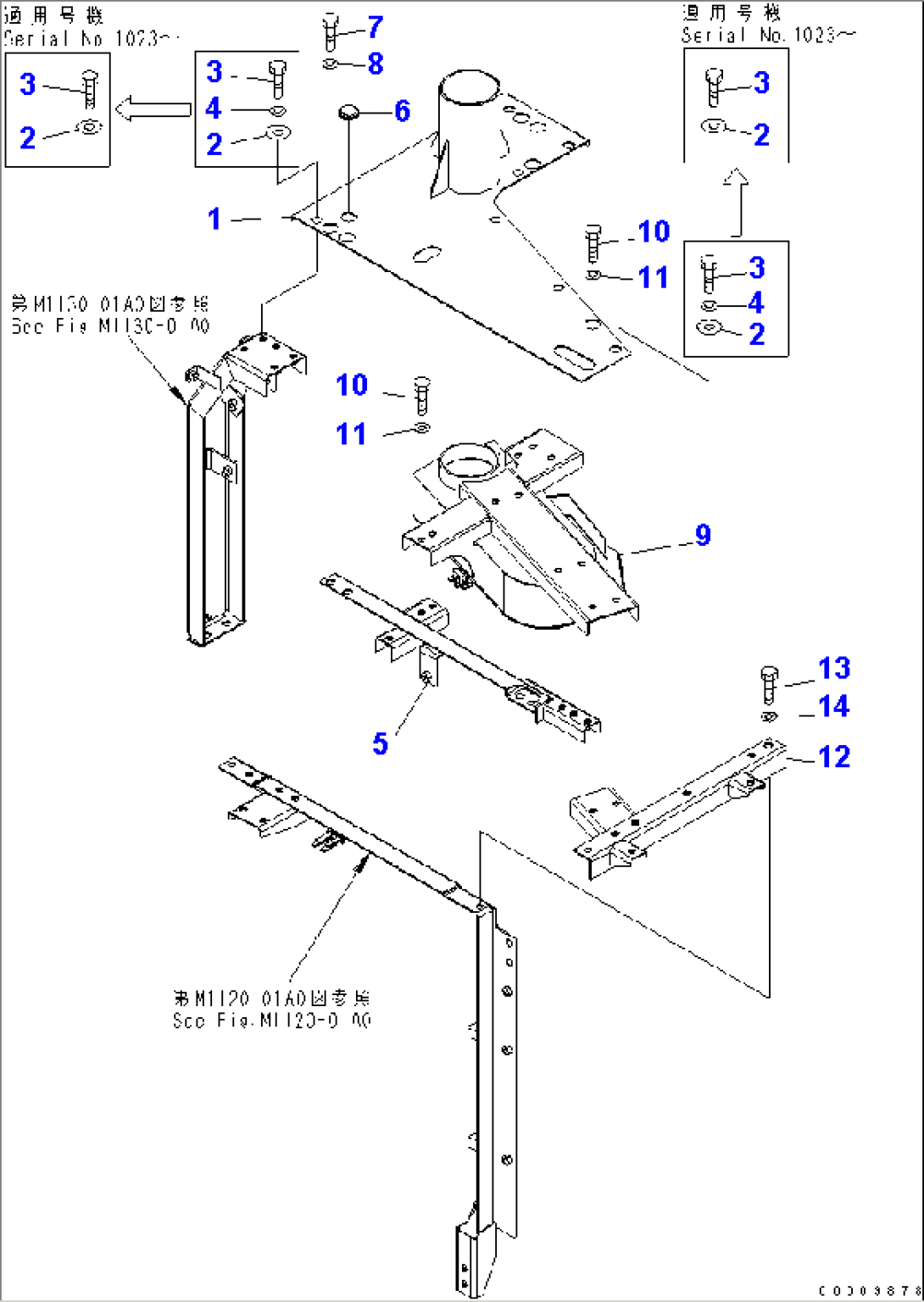

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8240-54-1191 | COVER | 1001- | |
| 2 | 175-54-34170 | WASHER | 1001- | |
| 3 | 01010-81230 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001-1022 | |
| 5 | 20Y-54-61261 | FRAME | 1001- | |
| 6 | 09415-02512 | CAP | 1001- | |
| 7 | 01010-81230 | BOLT | 1001- | |
| 8 | 01643-31232 | WASHER | 1001- | |
| 9 | 8240-54-1211 | BRACKET | 1001- | |
| 10 | 01010-81230 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 8240-54-1220 | BRACKET | 1001- | |
| 13 | 01010-81230 | BOLT | 1001- | |
| 14 | 01643-31232 | WASHER | 1001- |
