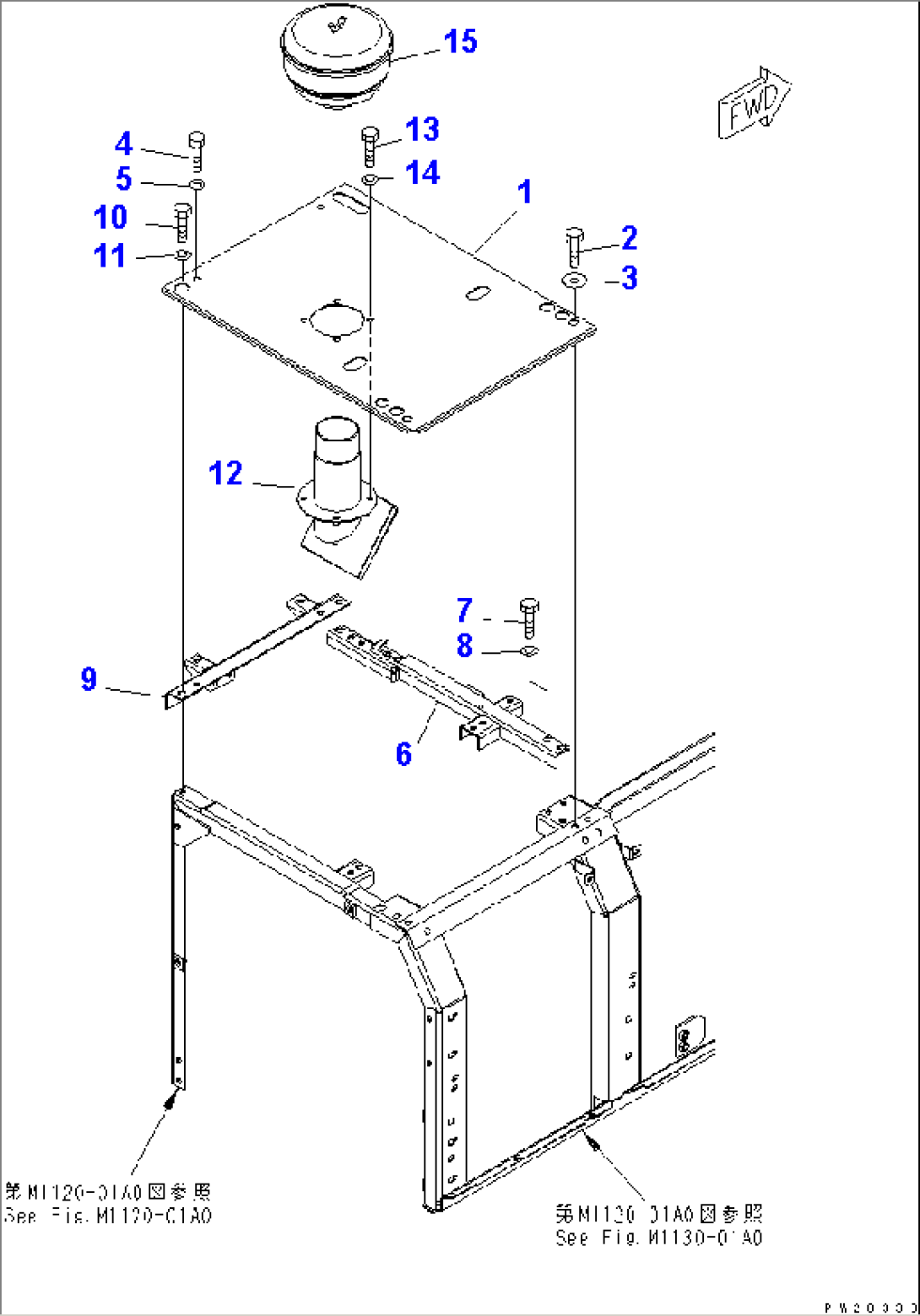

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8255-54-4211 | COVER | 1001- | |
| 2 | 01010-81230 | BOLT | 1001- | |
| 3 | 175-54-34170 | WASHER | 1001- | |
| 4 | 01010-81230 | BOLT | 1001- | |
| 5 | 01643-31232 | WASHER | 1001- | |
| 6 | 20Y-54-61261 | FRAME | 1001- | |
| 7 | 01010-81230 | BOLT | 1001- | |
| 8 | 01643-31232 | WASHER | 1001- | |
| 9 | 20Y-54-61272 | FRAME | 1001- | |
| 10 | 01010-81230 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 8255-01-4111 | AIR DUCT | 1001- | |
| 13 | 01010-81230 | BOLT | 1001- | |
| 14 | 01643-31232 | WASHER | 1001- | |
| 15 | 600-181-2630 | PRE-CLEANER ASS'Y | 1001- |
