| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-925-3510 | Cover | 80001- | |
| 2 | 01023-60412 | Screw | 80001- | |
| 3 | 01580-10403 | Nut | 80001- | |
| 4 | 01640-20408 | Washer | 80001- | |
| 5 | 418-925-3471 | Plate | 80001- | |
| 6 | 418-925-3481 | Plate | 80001- | |
| 7 | 01023-10510 | Screw | 80001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa150pz 6 s/n 80001 up
- Operator's compartment and control system
- Parts for less radio (#80001 )
Поиск по каталогу

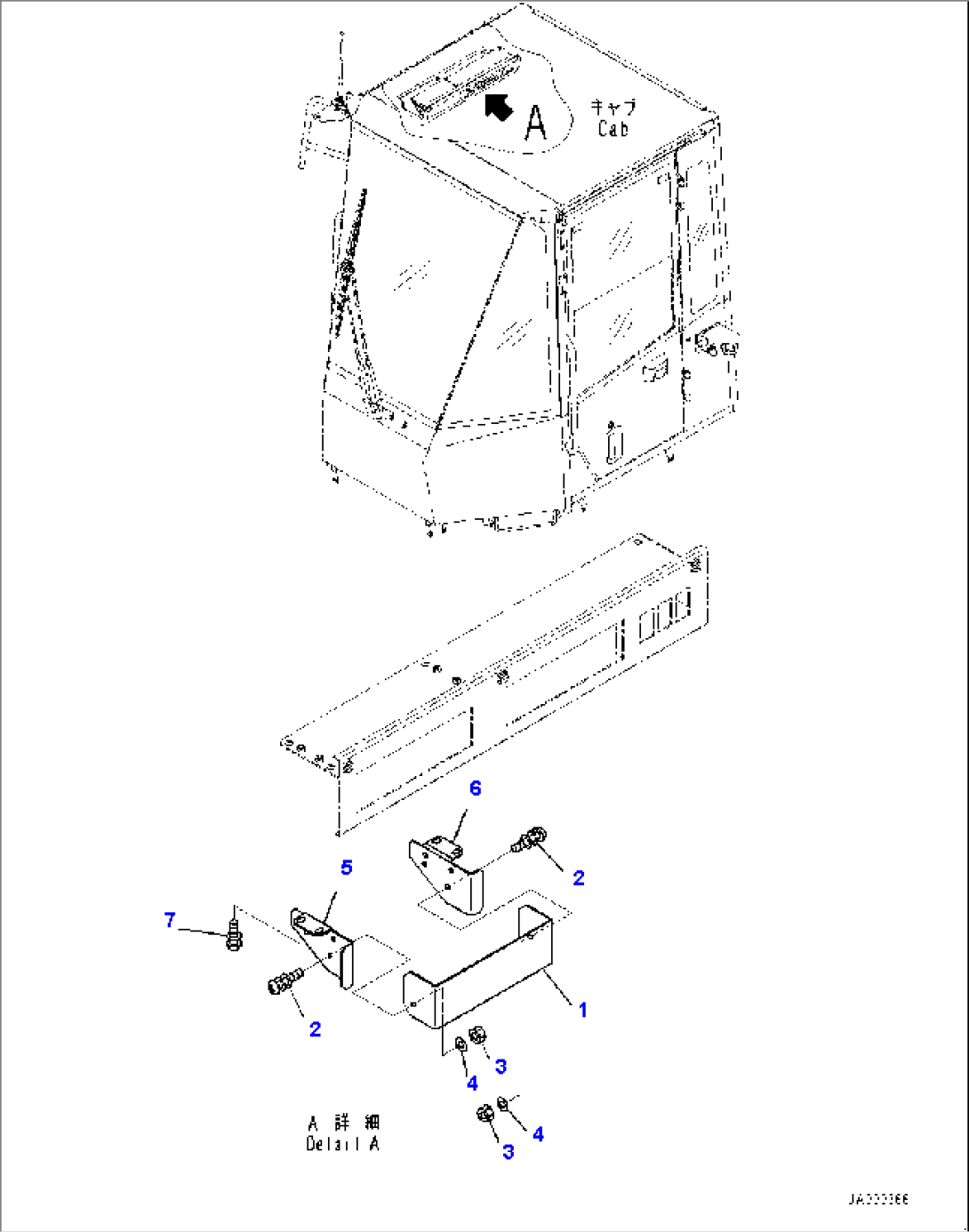

Parts For Less Radio (#80001-)
