| Item | Part No. | Part Name | Qty | Serial No. |
| 562-96-17200 | SEAT ASS'Y | 1101- | ||
| 1 | 566-57-23000 | SEAT ASS'Y | 1101- | |
| 2 | 09409-10000 | BELT | 1101- | |
| 3 | 562-96-17210 | PLATE | 1101- | |
| 4 | 01010-51025 | BOLT | 1101- | |
| 5 | 01602-21030 | WASHER | 1101- | |
| 6 | 01580-11008 | NUT | 1101- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 1l s/n 1101 up
- Optional parts
- Passenger's auxiliary seat and belt
Поиск по каталогу

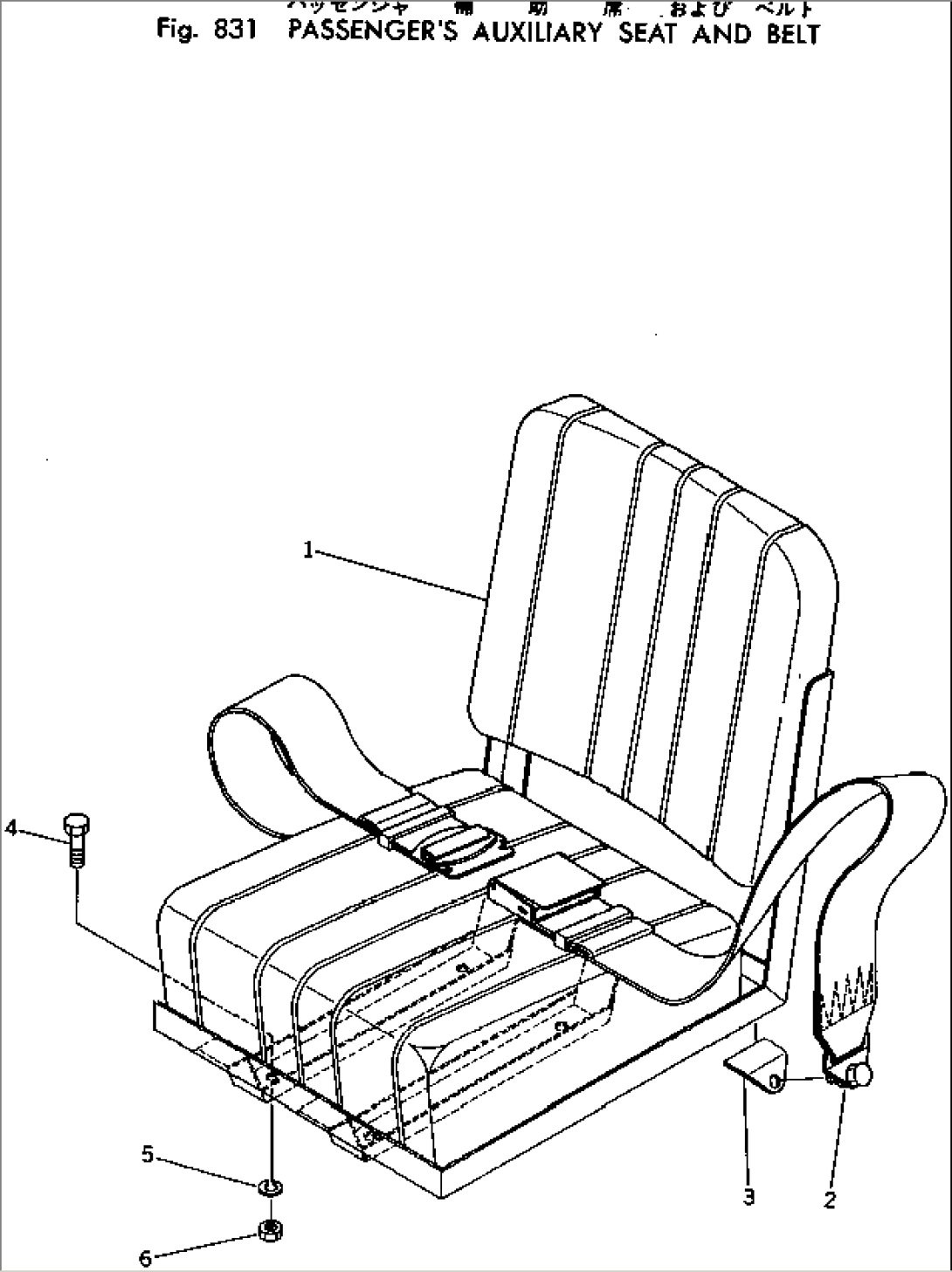

PASSENGER'S AUXILIARY SEAT AND BELT
